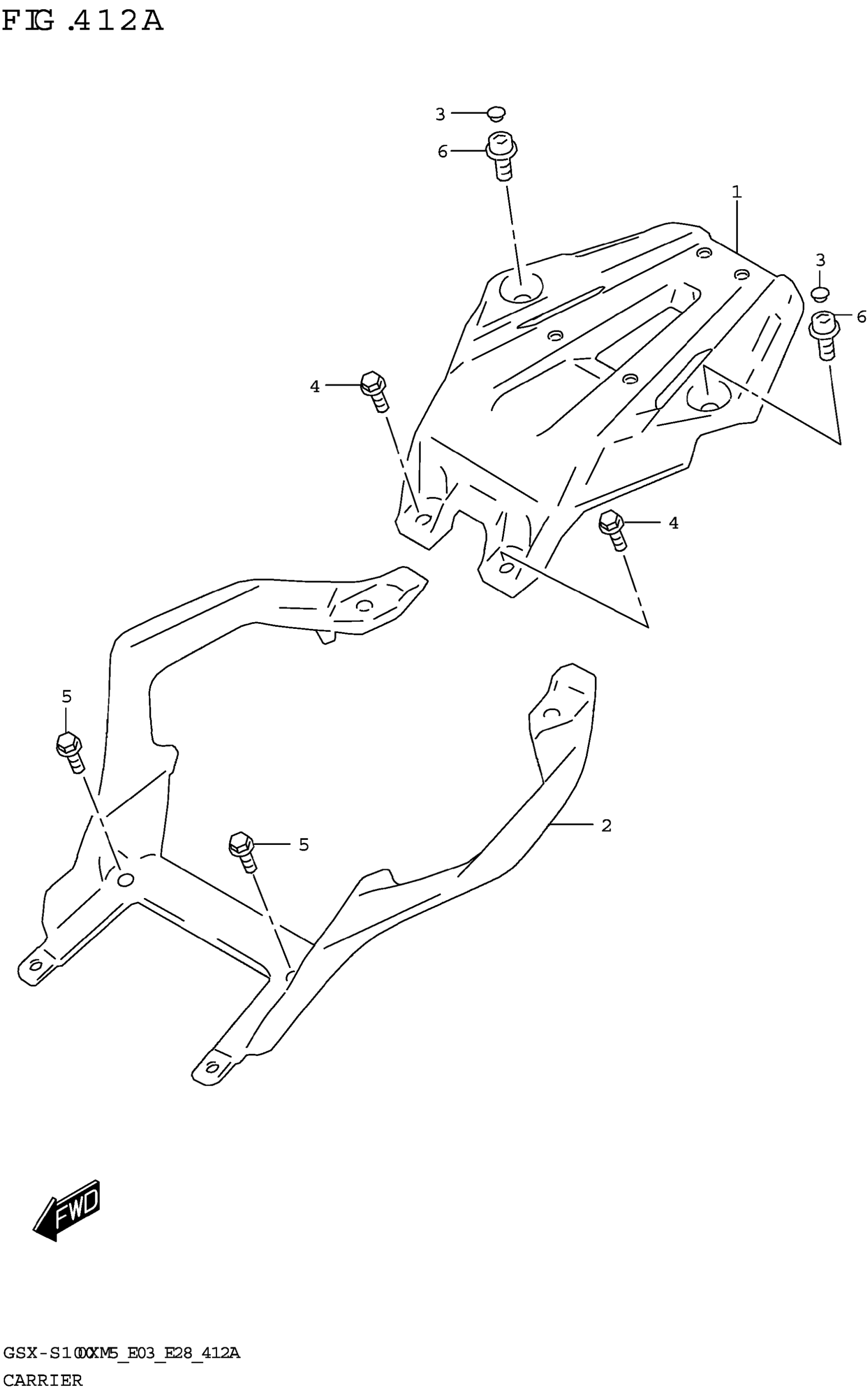

Suzuki GSX-S1000XRREM5 (2025) CARRIER Diagram

#

Description

Price

1

BODY,REAR CARRIER

46311-48K00

$334.38

2

ARM,REAR CARRIER

46312-48K00

$380.10

3

CAP (OD:12)

09250-08012

$2.35

4

BOLT

01550-0825A

$2.31

5

BOLT

01550-0825A

$2.31

6

BOLT

07120-1025A

$4.70
