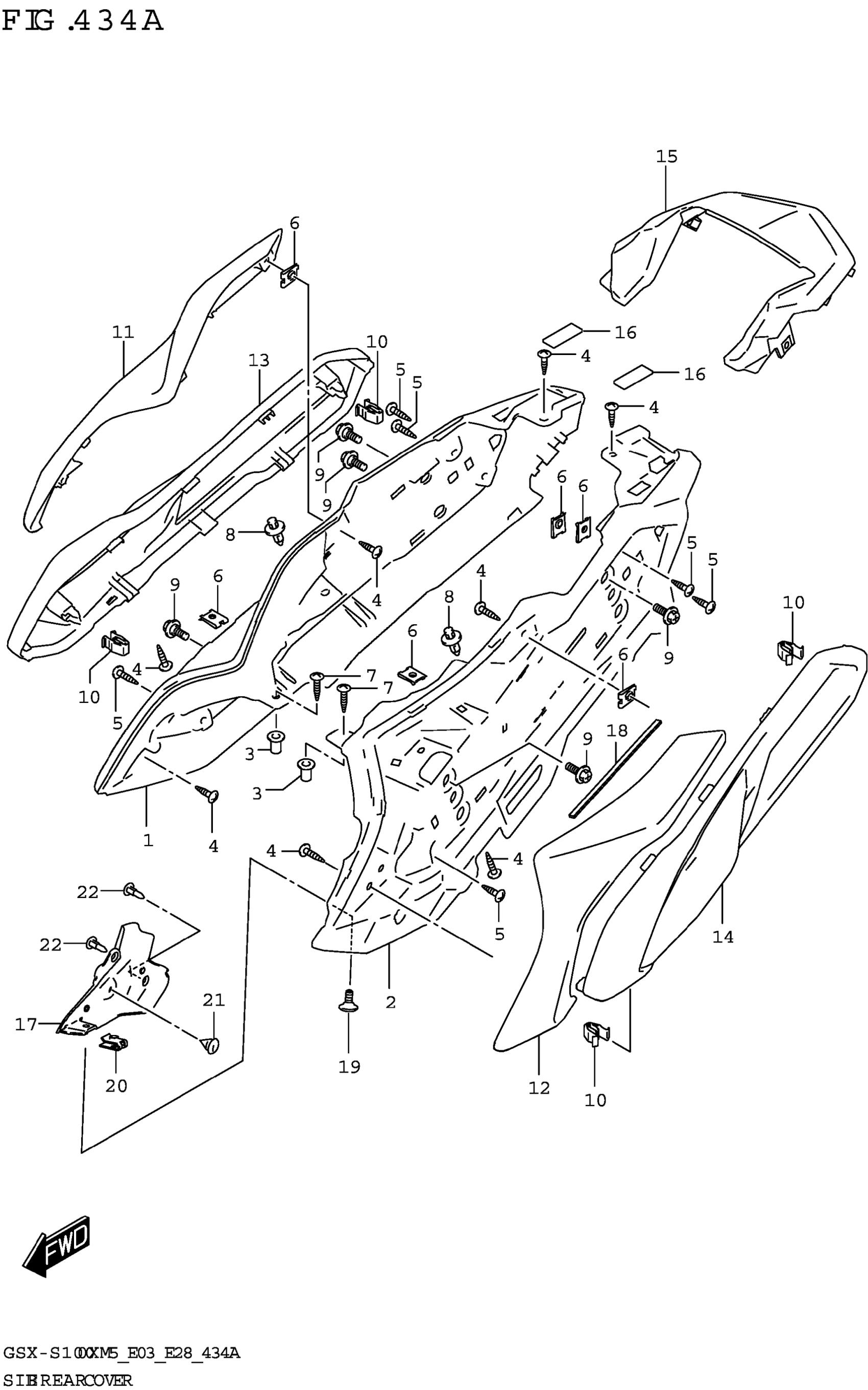

Suzuki GSX-S1000XRREM5 (2025) SIDE REAR COVER Diagram

#

Description
Price

1

COVER, FRAME RR LWR RH

47131-48K10

$53.75

2

COVER,FRAME RR LWR,L

47231-48K20

$46.98

3

NUT (M5)

09159-05019

$6.44

4

SCREW

03541-0512B

$1.77

5

SCREW

03541-0516A

$1.37

6

NUT (M5)

09148-05038

$1.97

7

SCREW

02142-1520B

$2.34

8

CLIP (7.6X25.7)

09409-08308

$1.97

9

BOLT (6X13.5)

09111-06262

$1.24

10

CLIP (10.5X14.3)

09409-08326

$2.45

11-1

COVER, FRAME RH (BLUE) | BODY COLOR:YSF

47121-48K10-YSF

$156.58

11-2

COVER, FRAME RH (BLACK) | BODY COLOR:YVB

47121-48K10-YVB

$156.58

11-3

COVER, FRAME RH (RED) | BODY COLOR:YYG

47121-48K10-YYG

$133.98

12-1

COVER,FRAME,L (BLUE) | BODY COLOR:YSF

47221-48K20-YSF

Unavailable

12-2

COVER,FRAME,L (BLACK) | BODY COLOR:YVB

47221-48K20-YVB

Unavailable

12-3

COVER,FRAME,L (RED) | BODY COLOR:YYG

47221-48K20-YYG

Unavailable

13

COVER, FRAME RR RH

47511-48K00

Unavailable

14

COVER, FRAME RR LH

47611-48K00

Unavailable

15

COVER,FRAME CENTER

47311-48K20

$39.98

16

TAPE (6X25X0.13)

94443-06G00

$2.97

17

GUARD,SEAT LOCK

47232-48K20

$17.40

18

CUSHION,FR SIDE COVER

47612-23H00

Unavailable

19

SCREW,KNUCKLE COVER

09139-05108

$1.05

20

NUT (M5)

09148-05052

$3.04

21

PLUG (OD:10)

09250-06017

$2.74

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
