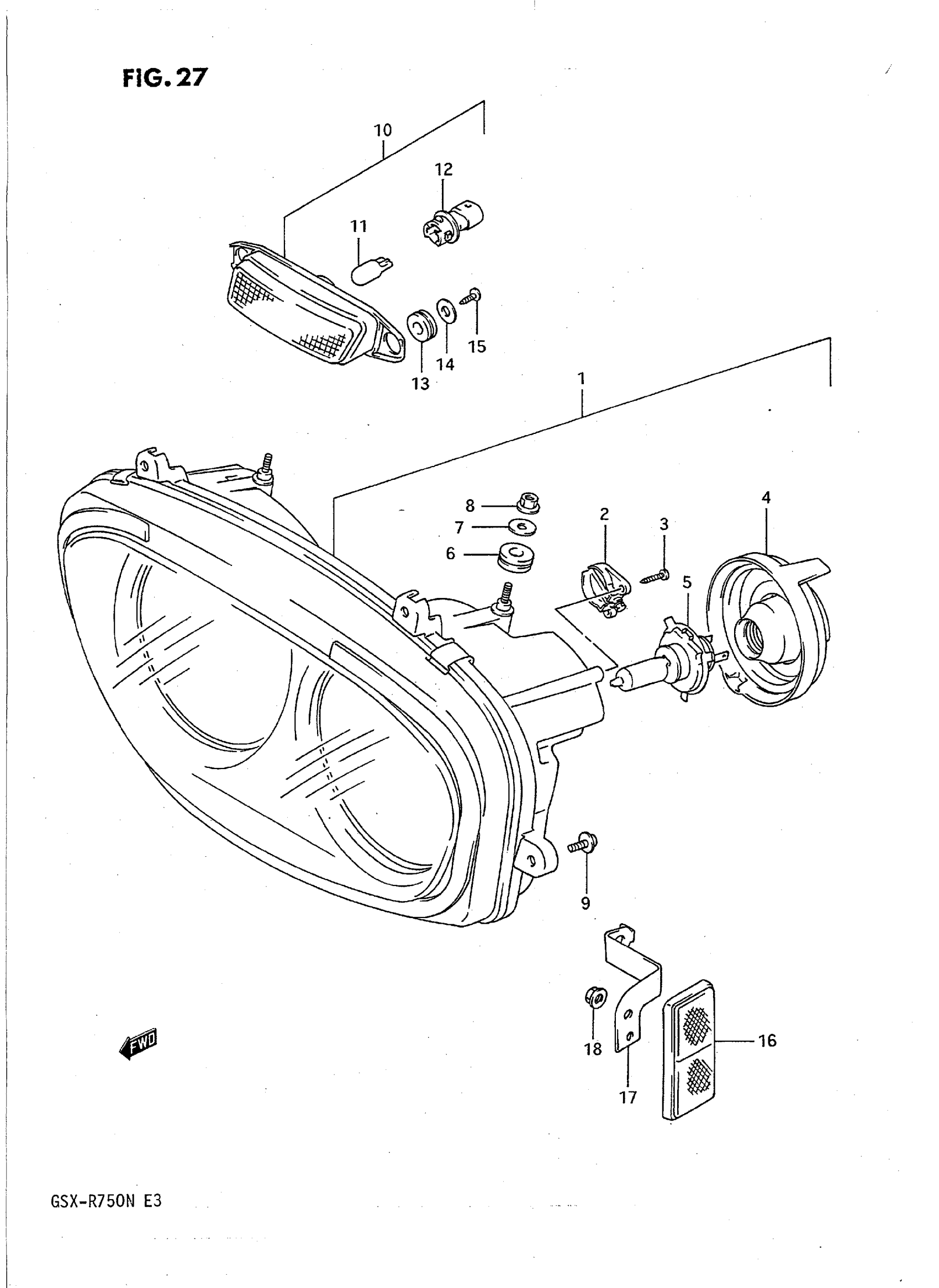

Suzuki GSX-R750N (1992) HEADLAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 35100-18D00.

35100-18D00-999

Unavailable

2

GEAR UNIT ASSY

35250-33C10

Unavailable

3

SCREW This part replaces 03511-04165.

03511-0416A

$1.95

4

COVER, SOCKET

35173-41C00

Unavailable

5

BULB (12V,60/55W)

09471-12060

$23.37

6

CUSHION This part replaces 09320-09034.

09320-09063

$3.37

7

WASHER (6.5X15X1.6) This part replaces 09160-06092.

09160-06128

$2.07

8

NUT This part replaces 08316-16064.

08316-1006B

$2.57

9

SCREW This part replaces 02112-75165.

02112-7516A

$2.50

10

LAMP ASSY, FRONT POSITION | MODEL M This part replaces 36110-18D00.

36110-18D01

Unavailable

10

LAMP ASSY, FRONT POSITION | MODEL N; Includes Item(s) 11 - 12

36110-18D01

Unavailable

11

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$4.99

12

SOCKET

36118-41C00

Unavailable

13

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$7.67

14

WASHER (4.5X16X1.2) This part replaces 09160-04014.

09160-04026

$1.93

15

SCREW This part replaces 03541-04105.

03541-0410A

$1.83

16

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

17

BRACKET, RH

35956-17D00

Unavailable

17

BRACKET, LH

35957-17D00

Unavailable

18

NUT This part replaces 08361-15055.

08361-1505B

$2.67
