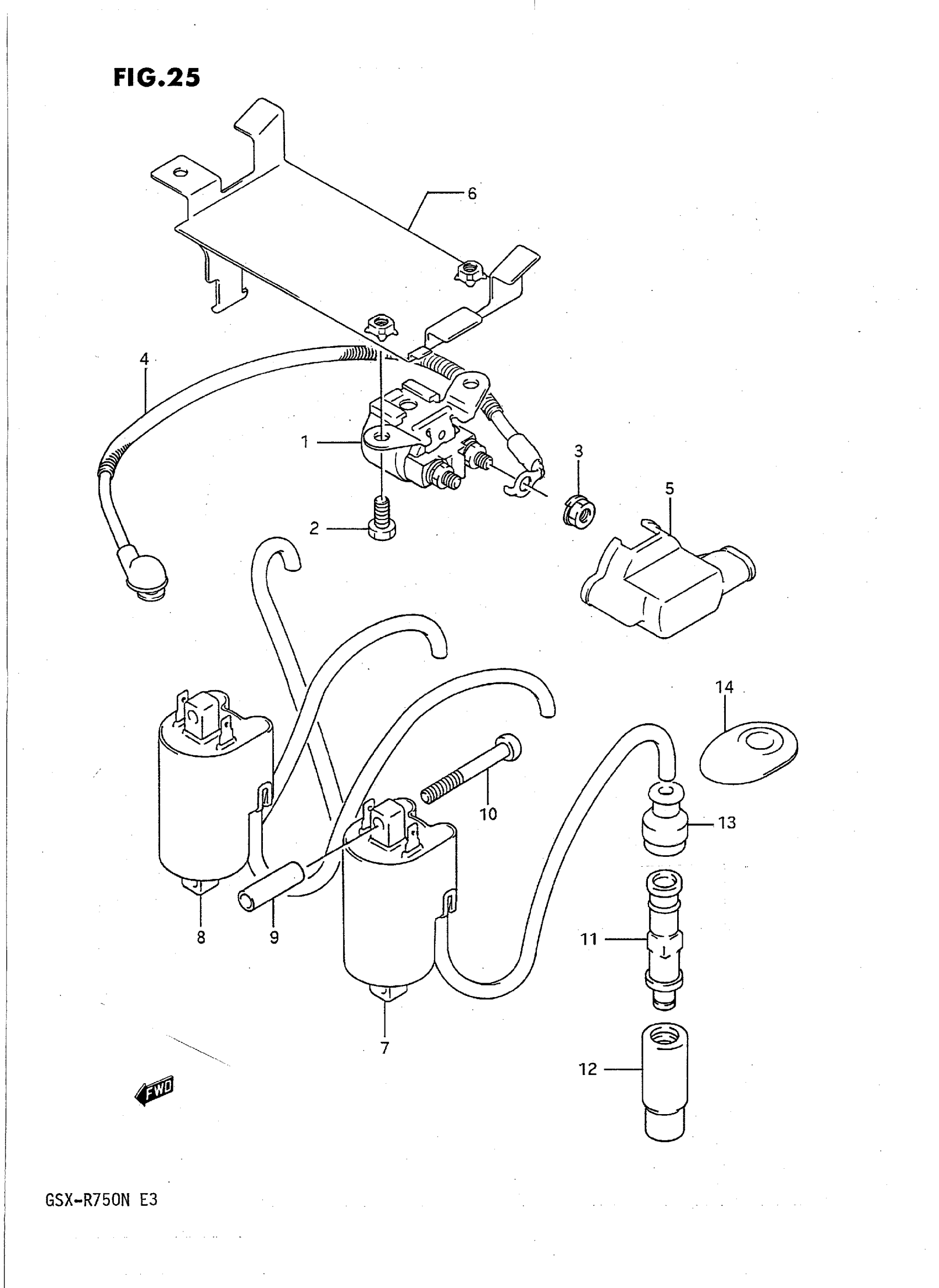

Suzuki GSX-R750N (1992) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$92.64

2

SCREW (6X8)

09128-06013

$1.28

3

NUT This part replaces 08361-35066.

08361-3506A

$1.88

4

LEAD WIRE, STARTING MOTOR This part replaces 33810-18D00.

33810-41C00

Unavailable

5

CAP, TERMINAL

31861-10D10

Unavailable

6

HOLDER, ELECTRIC PARTS

47410-18D00

Unavailable

7

COIL ASSY, IGNI This part replaces 33410-17C00.

33410-17C01

Unavailable

8

COIL ASSY, IGNI | OTHER THAN CALIFORNIA This part replaces 33420-17C00.

33410-17C01

Unavailable

8

COIL ASSY, IGNI | CALIFORNIA ONLY This part replaces 33420-17C10.

33410-17C01

Unavailable

9

SPACER,6.5X10.5 | OTHER THAN CALIFORNIA This part replaces 09180-06146.

09180-06146-XC0

Unavailable

10

SCREW This part replaces 02112-06556.

02112-0655B

$2.64

11

CAP, SPARK PLUG

33510-07D00

Unavailable

12

SEAL, PLUG

33541-20C00

$15.17

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

14

COVER

33543-48B00

$7.14
