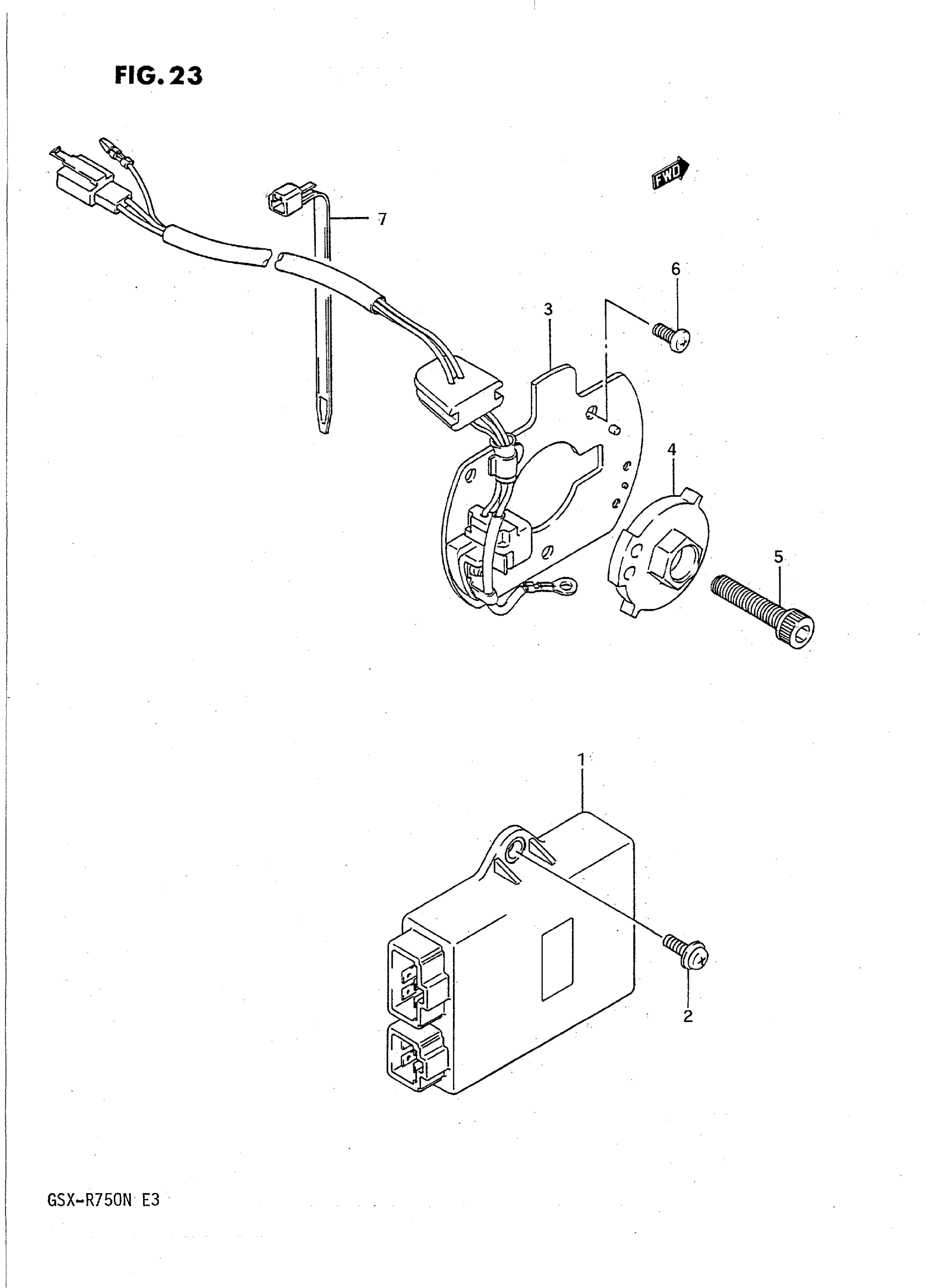

Suzuki GSX-R750N (1992) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER UNIT | OTHER THAN CALIFORNIA

32900-17D00

Unavailable

1

IGNITER UNIT | CALIFORNIA ONLY

32900-17D20

Unavailable

2

SCREW This part replaces 02112-16126.

02112-1612B

$3.30

3

SIGNAL GENERATOR ASSY

33110-17C00

Unavailable

4

ROTOR, SIGNAL GENERATOR | OTHER THAN CALIFORNIA This part replaces 33120-19C00.

33120-19C20

$220.83

4

ROTOR, SIGNAL | CALIFORNIA ONLY

33120-48B20

Unavailable

5

BOLT, STEERING DAMPER This part replaces 07110-08306.

07130-0830A

$2.80

6

SCREW

02112-05107

$1.46

7

CLAMP

09407-14403

$2.31
