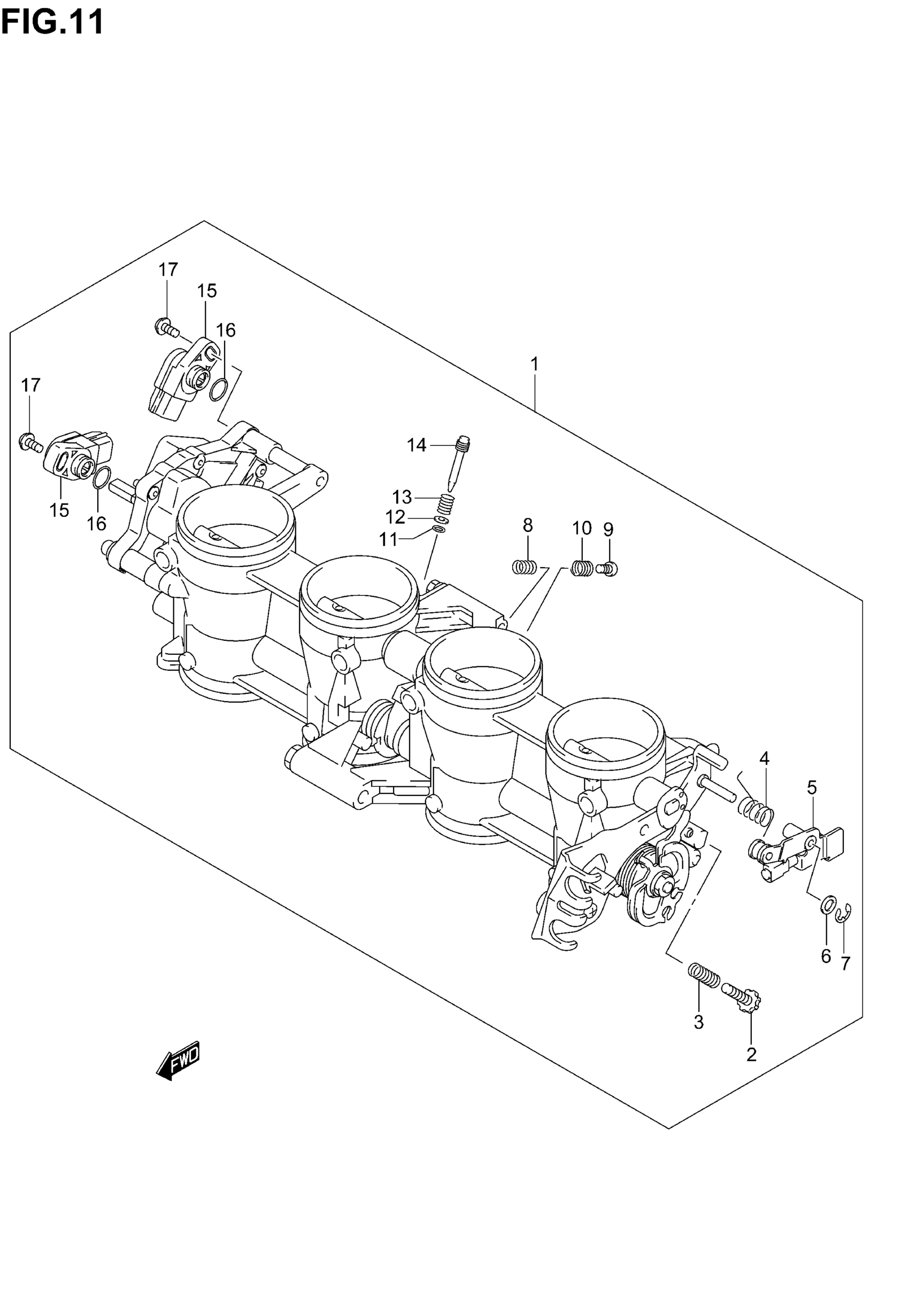

Suzuki GSX-R750 (2005) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT | E3,E28 This part replaces 13405-30G00.

13405-30G01

$1,452.88

1

BODY ASSY, THROTTLE | E33; Includes Item(s) 2 - 17

13405-30G10

Unavailable

2

SCREW

13267-29G00

Unavailable

3

SPRING

13268-29G00

Unavailable

4

TORSION SPRING

13426-29G00

$6.83

5

LEVER ASSY

13420-29G00

Unavailable

6

PACKING

13427-29G00

$4.70

7

E RING

13424-29G00

$4.62

8

SPRING

13268-89J00

$5.40

9

SCREW

13548-42F00

Unavailable

10

SPRING

13271-44B00

$3.66

11

O-RING This part replaces 13295-29900.

13295-29901

$3.97

12

WASHER

13606-47A00

$3.70

13

SPRING,THROTTLE SCREW

13268-48700

$3.97

14

SCREW

13269-33E00

$10.45

15

SENSOR ASSY

13580-29G00

$109.53

16

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

17

SCREW

13605-29G00

Unavailable
