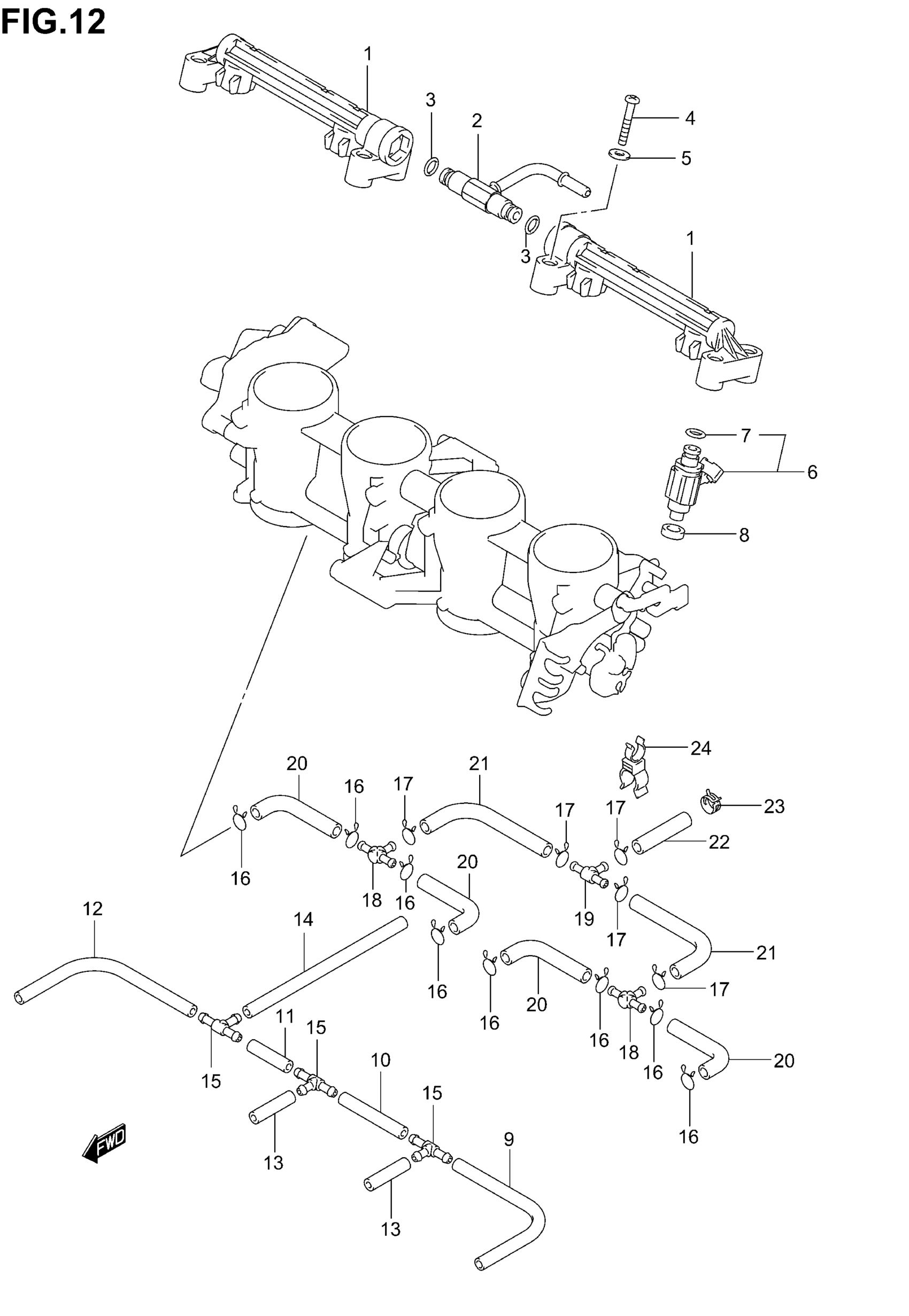

Suzuki GSX-R750 (2005) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE

13471-29G00

Unavailable

2

NIPPLE ASSY

13473-29G00

$108.60

3

O-RING This part replaces 15721-29G00.

15721-08J00

$11.88

4

SCREW

13601-29G00

$3.22

5

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

6

INJECTOR ASSY | Includes Item(s) 7

15710-17G00

$357.70

7

O RING

15717-16G00

$9.11

8

SEAL

15722-29G00

$10.01

9

HOSE(3.2X7.4X22 | L:225!125 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

10

HOSE(3.2X7.4X22 | L:225!45 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

11

HOSE(3.2X7.4X22 | L:225!30 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

12

HOSE(3.2X7.4X22 | L:225!80 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

13

HOSE(3.2X7.4X22 | L:225!25 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

14

HOSE(3.2X7.4X22 | L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

$10.10

15

3WAY,VACUUM HOSE

13685-02FA0

$7.95

16

CLIP | E33

13671-29G00

Unavailable

17

CLIP | E33

13671-06A10

Unavailable

18

NIPPLE | E33

13685-29G00

Unavailable

19

.NIPPLE | E33

13685-48B00

$11.44

20

HOSE | E33

13683-29G10

Unavailable

21

HOSE | E33

13683-29G30

Unavailable

22

HOSE | E33

13683-29G20

Unavailable

23

CLIP (ID:9.4,H:8) | E33

09401-09403

$2.01

24

CLAMP | E33

09408-00174

Unavailable
