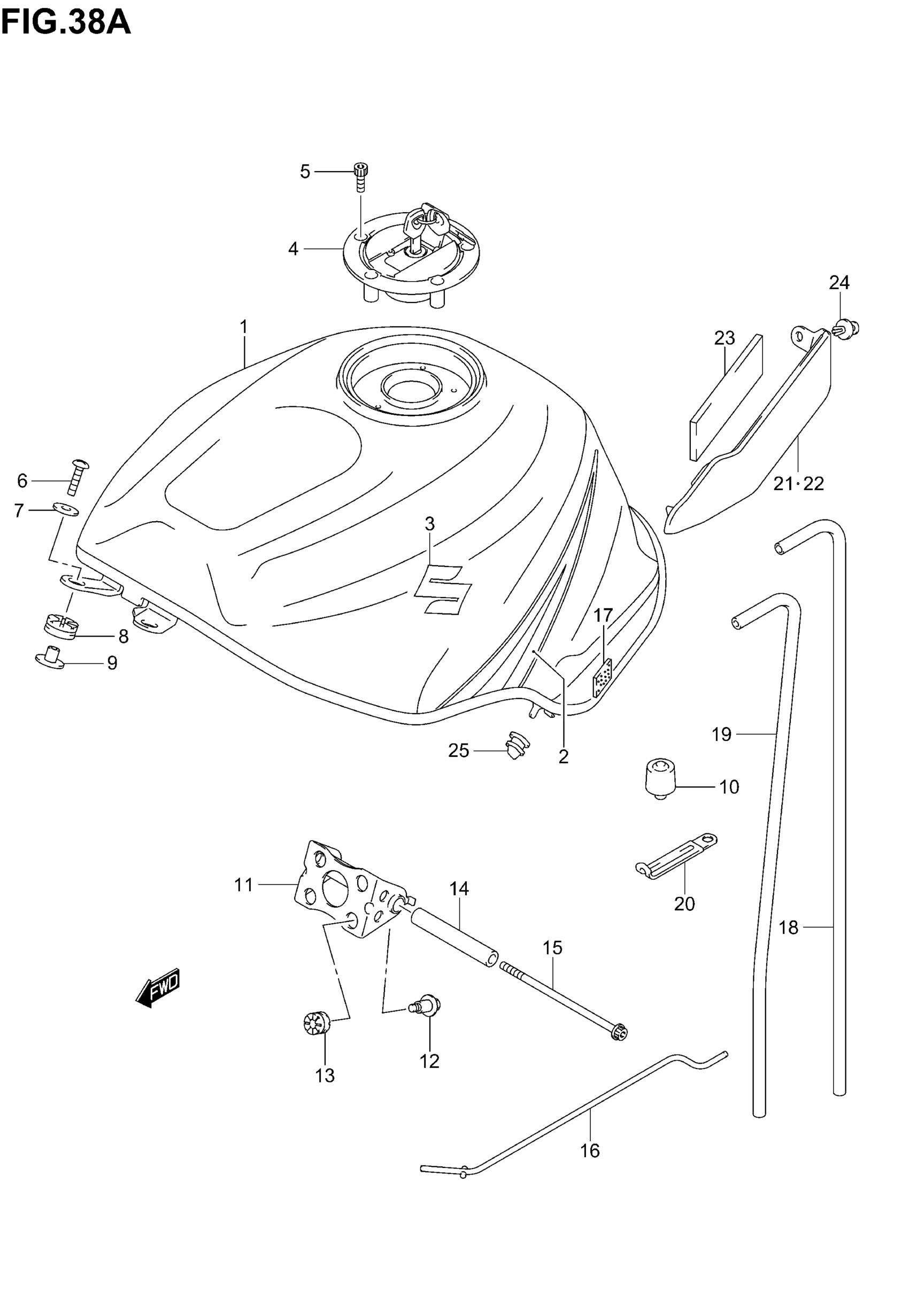

Suzuki GSX-R750 (2005) FUEL TANK (MODEL K5) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR LR5

44100-29G30-4HX

Unavailable

1

TANK ASSY, FUEL (BLUE) | FOR BMV

44100-29G30-4JX

Unavailable

1

TANK ASSY, FUEL (YELLOW) | FOR AGN

44100-29G30-4KX

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR LR5

44100-29G50-4HX

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR BMV

44100-29G50-4JX

Unavailable

1

TANK ASSY, FUEL (GRAY) | E33 FOR AGN; Includes Item(s) 2 - 2

44100-29G50-4KX

Unavailable

2

TAPE SET | FOR 4HX

68110-29G10-LW8

Unavailable

2

TAPE SET | FOR 4JX

68110-29G10-BPY

Unavailable

2

TAPE SET | FOR 4KX

68110-29G10-BPZ

Unavailable

3

EMBLEM

68111-18G20

$30.90

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$112.54

4

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

5

BOLT

09106-05017

$2.80

6

SCREW, FRONT

09139-06029

$4.99

7

WASHER

09160-06054

$1.66

8

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

9

SPACER, FRONT

44512-16G00

$7.11

10

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.60

11

BRACKET, TANK

44530-29G00

Unavailable

12

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.79

13

CUSHION

09320-08071

$3.16

14

SPACER

44561-18G00

$16.22

15

BOLT

09106-06103

$4.27

16

STAY, FUEL TANK

44574-35F00

$14.51

17

FASTENER

44572-13G00

$10.59

18

HOSE,WATER DRAI This part replaces 44423-16G01.

44423-16G02

$13.20

19

HOSE,FUEL TANK This part replaces 44424-18G00.

44424-18G01

$10.45

20

CLAMP This part replaces 09404-06431.

09404-06039

$1.79

21

COVER, TANK RH (BLACK)

44171-29G00-291

$48.82

22

COVER, TANK LH (BLACK)

44181-29G00-291

$47.90

23

CUSHION

44277-29G00

$5.03

24

CLIP (GRAY)

09409-08314-6GS

$2.71

25

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.51
