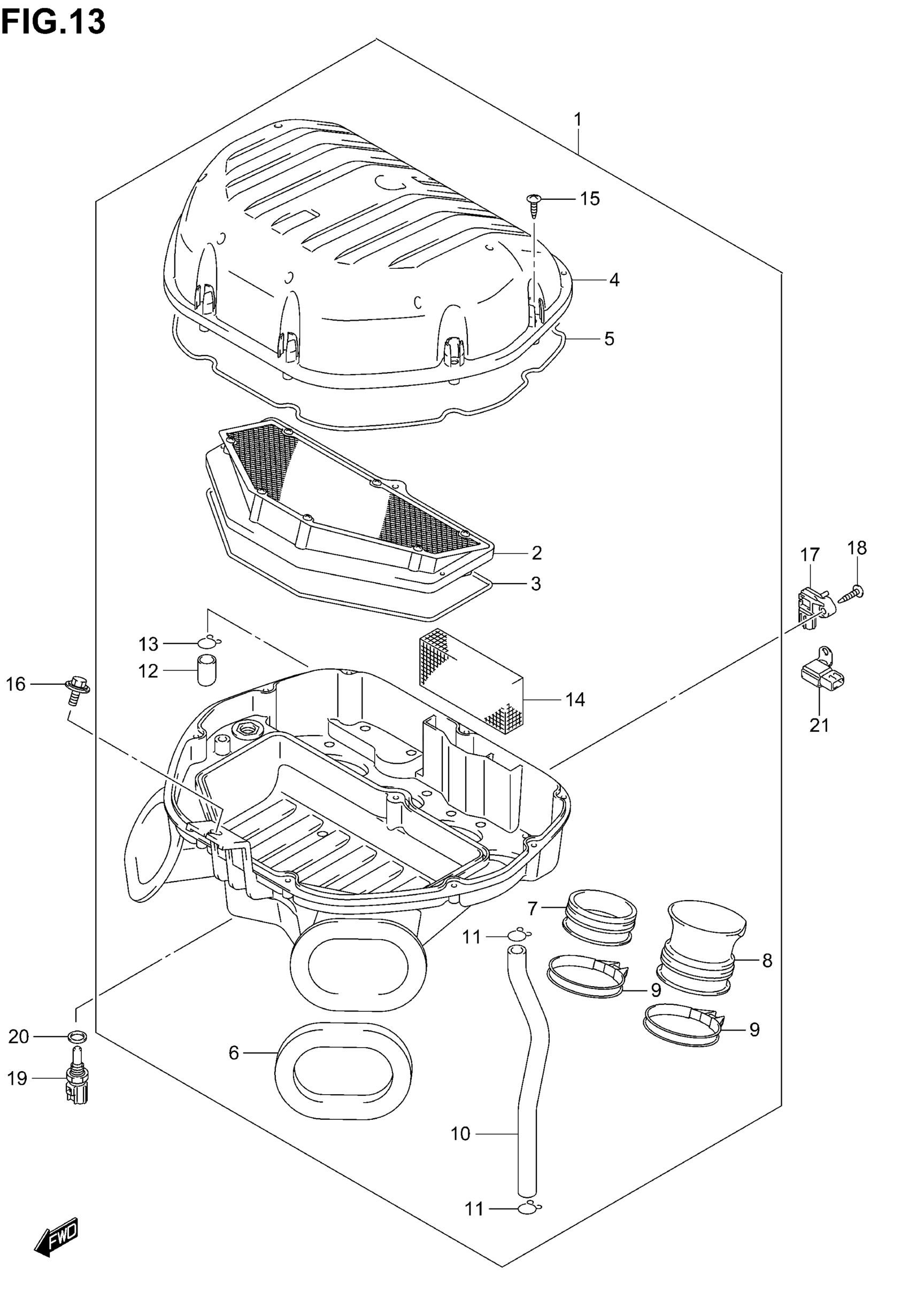

Suzuki GSX-R750 (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 15

13700-30G00

Unavailable

2

FILTER ASSY

13780-29G00

$37.85

3

GASKET, CASE

13756-29G00

$16.58

4

CAP

13741-29G00

Unavailable

5

GASKET, CAP

13746-29G00

$19.68

6

CUSHION, DUCT

13736-29G00

$8.95

7

TUBE, OUTLET, LH/RH

13881-30G00

Unavailable

8

TUBE, OUTLET, ML/MR

13882-30G00

Unavailable

9

..CLAMP

09402-60208

$4.62

10

TUBE,BREATHER This part replaces 13853-30G00.

13853-30G01

Unavailable

11

CLIP

09401-14301

$2.17

12

.PLUG This part replaces 13878-10G00.

13878-10G01

$6.53

13

CLIP

09401-14301

$2.17

14

FILTER, BREATHER

13788-29G00

$7.65

15

SCREW This part replaces 03541-05203.

03541-0520A

$1.81

16

BOLT

09116-06130

$2.19

17

SENSOR,BOOST

15620-29G00

$304.30

18

SCREW This part replaces 03541-05253.

03541-0525B

$2.34

19

SENSOR, AIR TEMPERATURE

13650-61B00

$122.53

20

GASKET

09168-12017

$1.97

21

SENSOR, PRESSURE This part replaces 15620-29G10.

15630-29G10

$304.30
