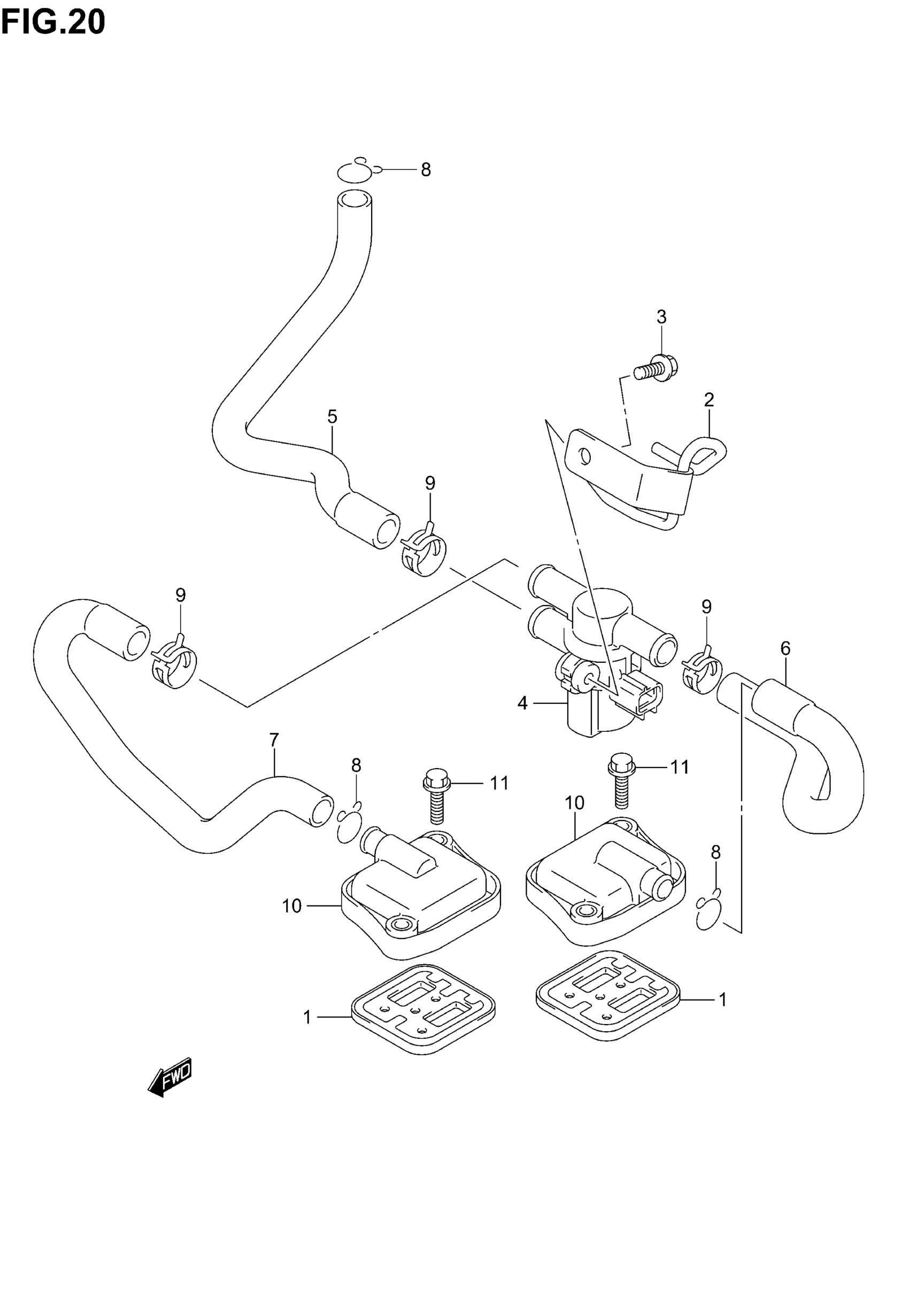

Suzuki GSX-R750 (2005) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED This part replaces 18450-35F10.

18450-35F11

$112.45

2

BRACKET, 2ND AIR VALVE

18610-29G00

Unavailable

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

VALVE ASSY,AIR This part replaces 18510-29G00.

18510-29G01

$111.50

5

HOSE, 2ND AIR CLEANER

18711-29G00

Unavailable

6

HOSE,AIR CUT VA This part replaces 18461-30G00.

18461-30G01

$14.37

7

HOSE,AIR CUT VA This part replaces 18471-30G00.

18471-30G01

Unavailable

8

CLIP

09401-15101

$2.28

9

CLIP

09401-17401

$1.01

10

COVER, 2ND AIR REED VALVE

18531-35F10

Unavailable

11

BOLT

09103-06201

$2.54
