2005 Suzuki GSX-R750 Front Damper Diagram

← All diagrams

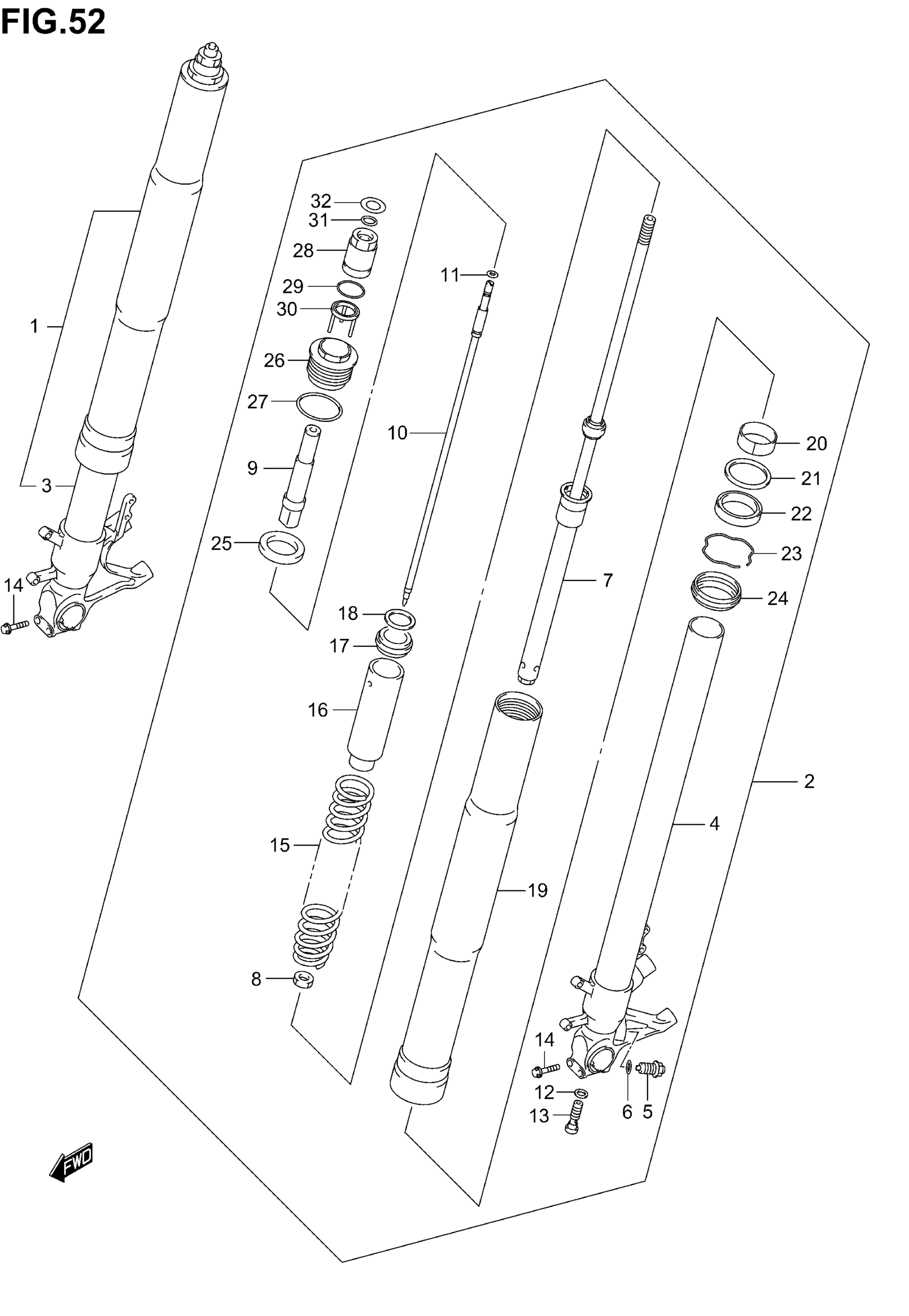

Find the part on the Front Damper diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R750 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-30G00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 32

51104-30G00

1
Out of stock

3

TUBE, INNER RH

51110-29G00

1
Out of stock

4

TUBE, INNER LH

51120-29G00

1
Out of stock

5

PIECE, ADJUSTER LOWER

51830-29G00

2
Out of stock

6

O RING

09280-14011

2
Out of stock

7

ROD, DAMPER

52110-30G00

2
Out of stock

8

NUT

51827-29G00

2
Out of stock

9

CASE, ADJUST

51829-29G00

2
Out of stock

10

PIECE, ADJUST

51821-29G00

2
Out of stock

11

O RING

09280-03002

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

2
Out of stock

13

BOLT

51147-17C00

2
Out of stock

14

BOLT, AXLE HOLDER

51166-35F00

4

$7.47

In stock

15

SPRING

51171-29G00

2
Out of stock

16

SPACER, SPRING

51176-29G00

2
Out of stock

17

.GUIDE,SPRING UPR

51175-22D00

2
Out of stock

18

WASHER, JOINT

51172-34370

2
Out of stock

19

TUBE, OUTER

51131-29G00

2
Out of stock

20

BUSH, GUIDE

51152-13E00

2
Out of stock

21

SPACER, SEAL

51168-29G00

2
Out of stock

22

.OIL SEAL This part replaces 51553-27G00.

51153-27G00

2
Out of stock

23

RING, STOPPER

51556-38B00

2
Out of stock

24

.SEAL, DUST

51173-27G00

2
Out of stock

25

RUBBER, SEAT

51193-17D00

2
Out of stock

26

BOLT, FORK

51189-35F00

2
Out of stock

27

O RING, FORK BOLT

51187-08D00

2
Out of stock

28

ADJUSTER, SPRING

51828-35F00

2
Out of stock

29

O RING, ADJUSTER OUTER

51199-17D00

2
Out of stock

30

PLATE, SPRING ADJUSTER

51823-22D30

2
Out of stock

31

RING, STOPPER

51837-17D00

2
Out of stock

32

LABEL, ADJUST PIECE UPPER

51149-42E00

2
Out of stock
