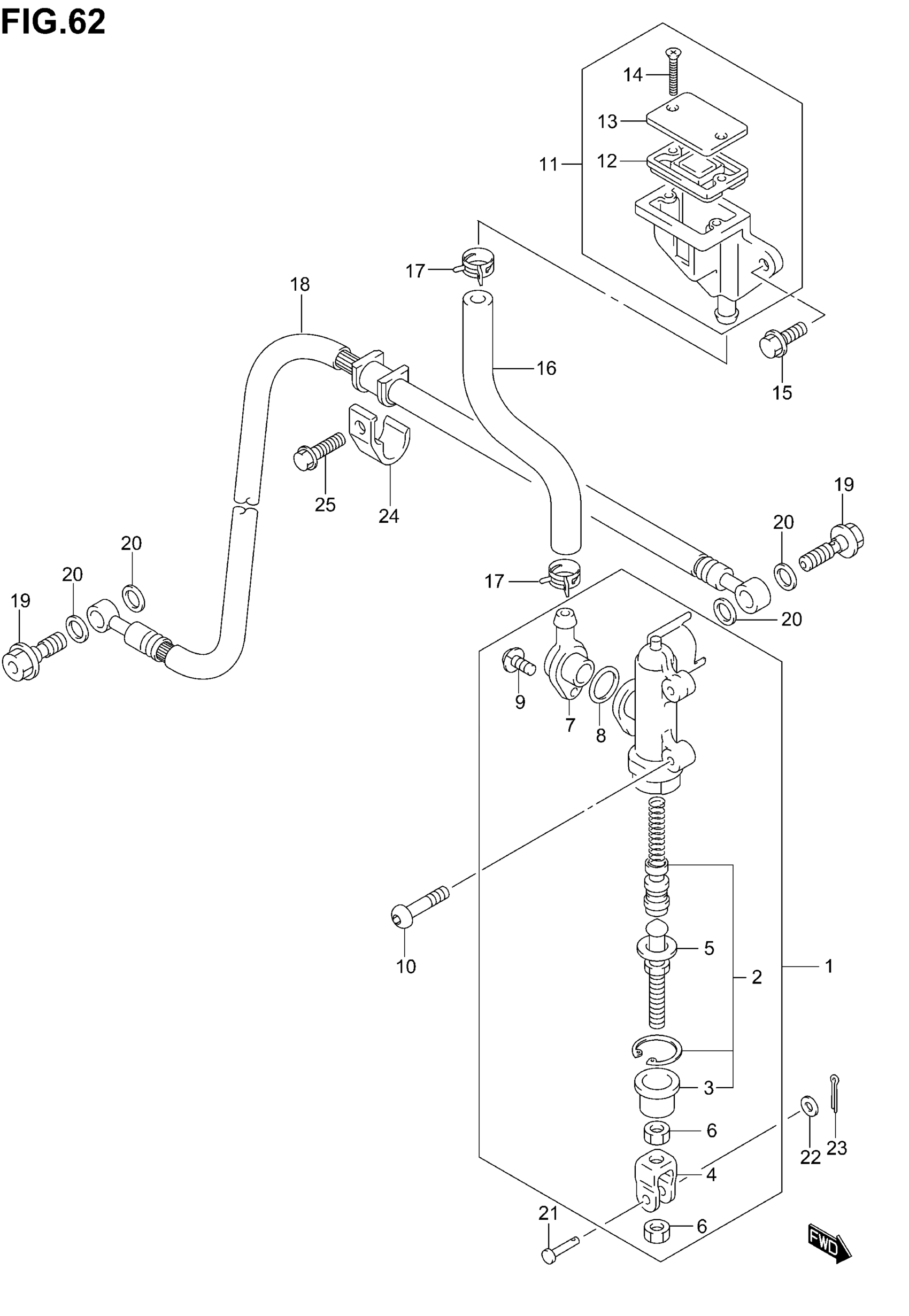

Suzuki GSX-R750 (2005) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$215.02

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-27A30

$13.02

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.23

8

O RING

69686-34200

$2.80

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

10

BOLT

09139-06125

$2.80

11

TANK ASSY,RR RESERVOIR | Includes Item(s) 12 - 14

69740-01D02

$64.52

12

DIAPHRAGM

59667-04700

$8.95

13

CAP

59669-05D00

$15.78

14

SCREW

69689-04A00

$2.15

15

BOLT

09103-06222

$2.28

16

HOSE, RESERVOIR TANK

69731-29G00

Unavailable

17

CLAMP

09401-13417

$2.24

18

HOSE This part replaces 69480-29G00.

69480-29G02

Unavailable

19

UNION This part replaces 09360-10042.

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

22

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

24

CLAMP, REAR BRAKE HOSE This part replaces 69268-29G00.

69268-29G01

$19.97

25

BOLT

09103-06223

$2.49
