2005 Suzuki GSX-R750 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

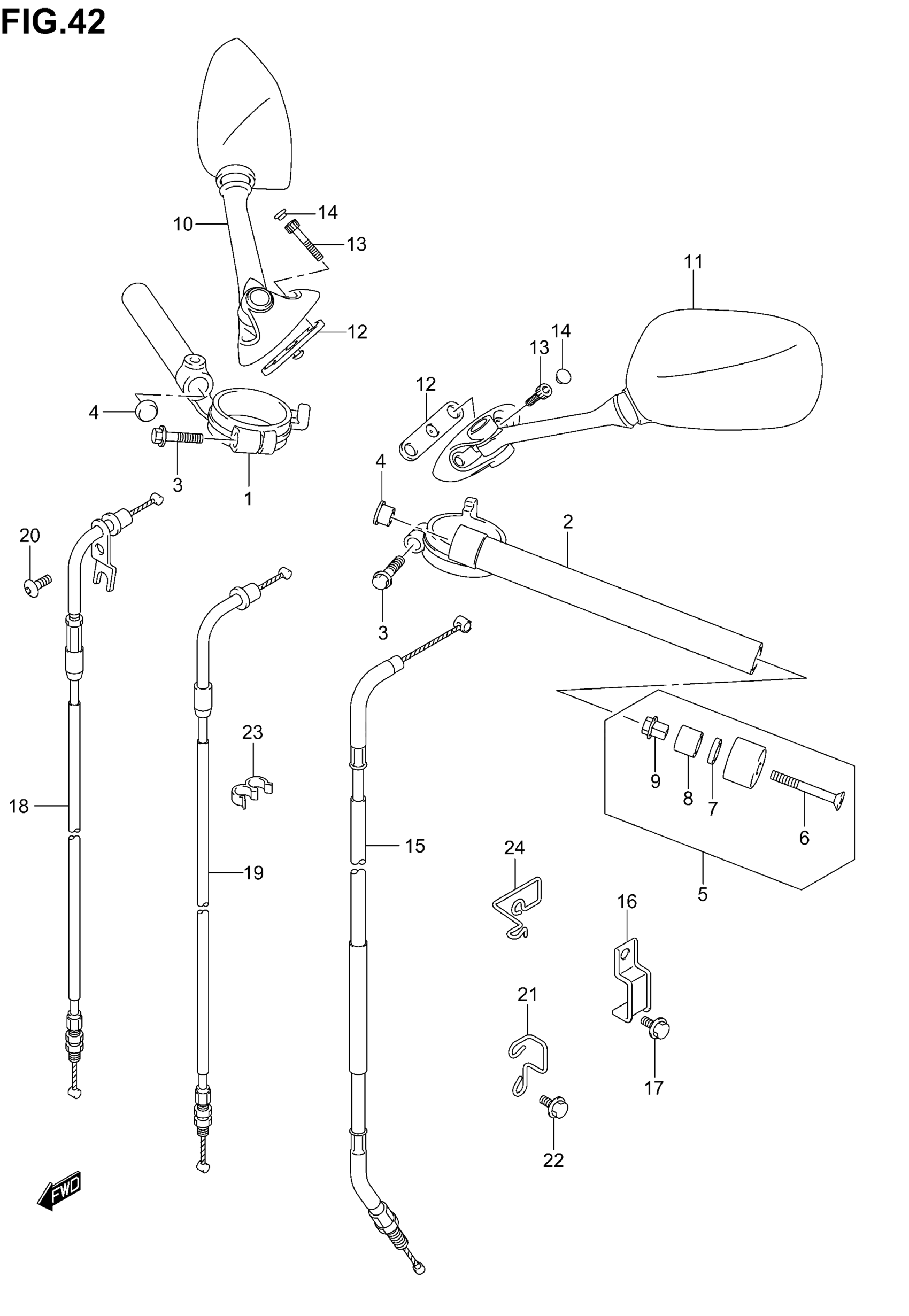

2005 Suzuki GSX-R750 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-29G00

1
Out of stock

2

HANDLEBAR, LH

56151-29G00

1
Out of stock

3

BOLT, HANDLEBAR

56123-35F00

2
Out of stock

4

CAP,HANDLEBAR

56131-29G00

2
Out of stock

5

BALANCER SET,HN | Includes Item(s) 6 - 9 This part replaces 56200-14830.

56200-14833

2
Out of stock

6

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

2
Out of stock

7

WASHER

09160-06131

2
Out of stock

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

9

NUT This part replaces 56273-10G00.

56273-10G10

2
Out of stock

10

MIRROR ASSY, REAR VIEW RH

56500-29G00

1
Out of stock

11

MIRROR ASSY, REAR VIEW LH

56600-29G00

1
Out of stock

12

CUSHION

94576-24F00

2
Out of stock

13

BOLT This part replaces 07130-06303.

07130-0630B

4
Out of stock

14

CAP

09250-05009

4
Out of stock

15

CABLE ASSY, CLUTCH

58200-29G00

1
Out of stock

16

GUIDE, CLUTCH CABLE

58621-06G00

1
Out of stock

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

18

CABLE ASSY, THROTTLE NO.1

58300-29G00

1
Out of stock

19

CABLE ASSY, THROTTLE NO.2

58300-29G10

1
Out of stock

20

SCREW, CASE | MODEL K4

09139-05079

1
Out of stock

20

SCREW | MODEL K5 This part replaces 02142-05083.

02142-0508A

1
Out of stock

21

GUIDE, THROTTLE CABLE NO.1

58621-29G00

1
Out of stock

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

23

CLIP

09408-00033

1
Out of stock

24

GUIDE, THROTTLE CABLE NO.2

58631-29G00

1
Out of stock
