2005 Suzuki GSX-R750 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

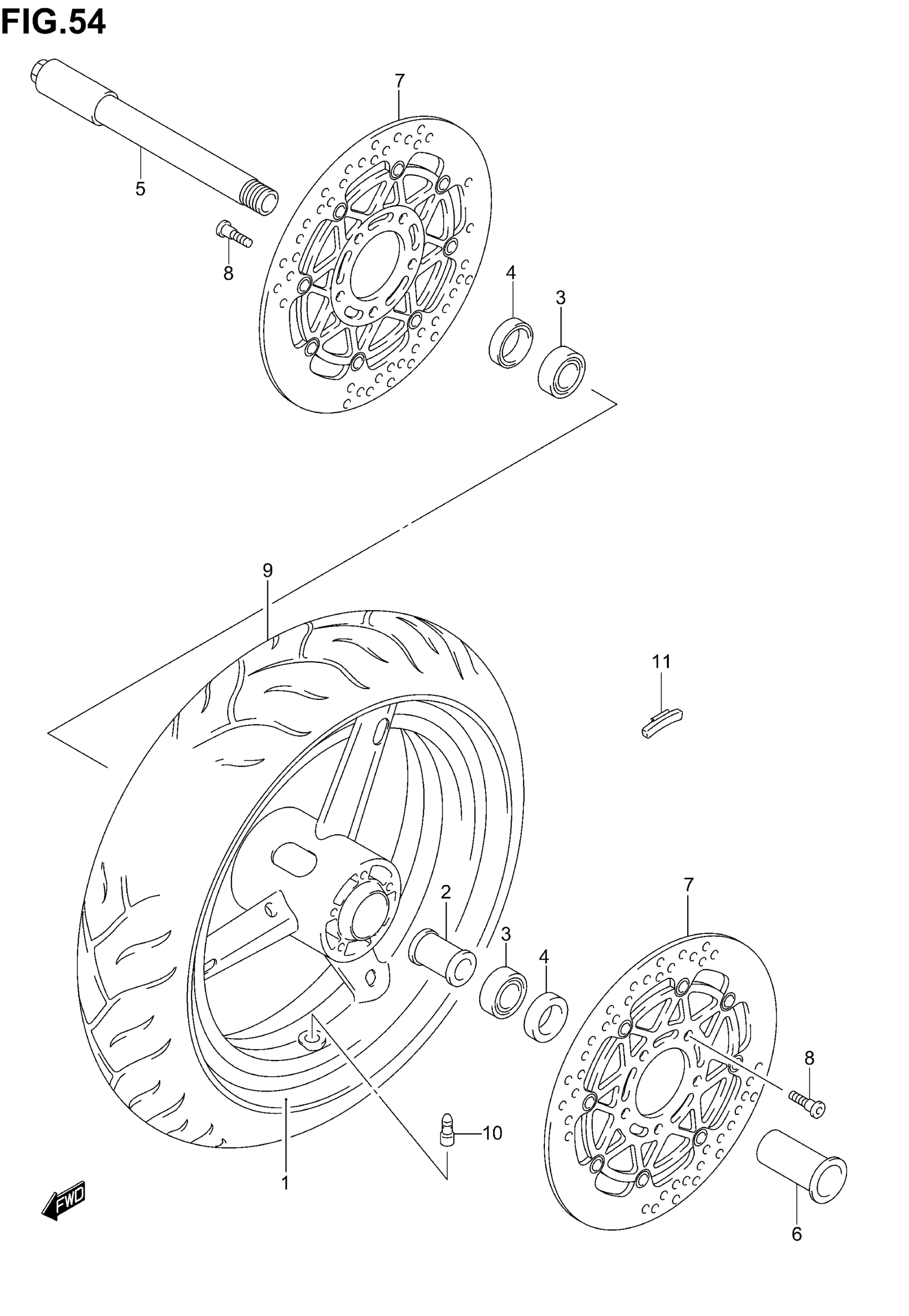

2005 Suzuki GSX-R750 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT 17M/CXMT3.50 (BLACK) This part replaces 54111-35F01-019.

54111-35F11-019

1
Out of stock

2

SPACER,FR HUB BEARING

54731-35F10

1
Out of stock

3

BEARING (25X52X15)

09262-25061

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT

54711-35F10

1
Out of stock

6

NUT, AXLE

54712-33E00

1
Out of stock

7

DISC, FRONT BRAKE

59210-18G30

2
Out of stock

8

BOLT

09106-08148

10
Out of stock

9

TIRE, FRONT 120/70 ZR17 M/C (58W)(DUNLOP)

55110-30G10

1
Out of stock

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

11

BALANCER, WHEEL NO.1

43222-73H10

1
Out of stock

11

BALANCER, WHEEL NO.2

43224-73H10

1
Out of stock

11

BALANCER, WHEEL NO.3

43226-73H10

1
Out of stock
