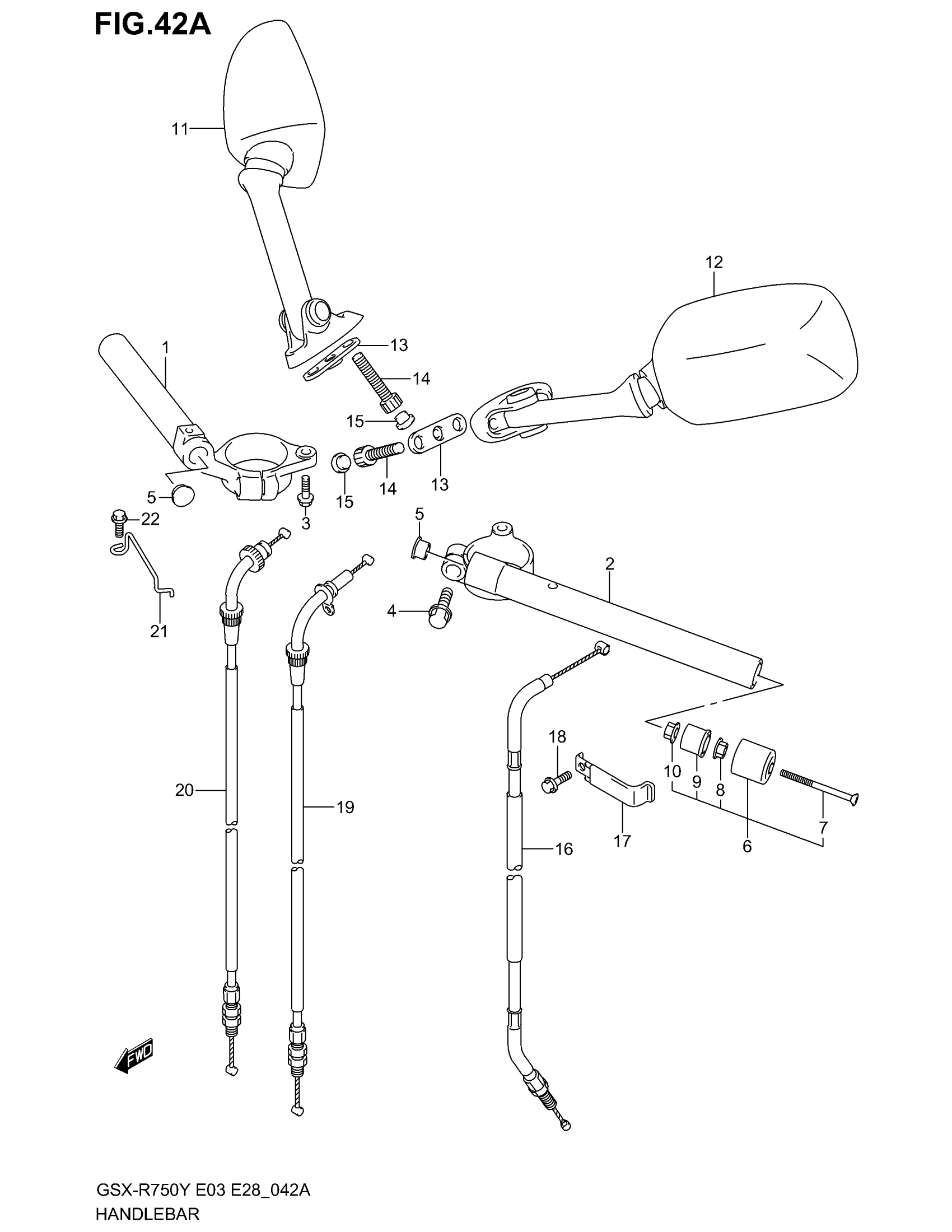

Suzuki GSX-R750 (2003) HANDLEBAR (MODEL K2/K3) Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-35F02

Unavailable

2

HANDLEBAR, LH

56151-35F01

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT, HANDLEBAR

56123-35F00

$6.95

5

CAP

09250-14006

$2.00

6

BALANCER SET,HA | Includes Item(s) 7 - 10 This part replaces 56200-35830.

56200-35831

$36.43

7

SCREW This part replaces 02122-06603.

02122-0660B

$2.80

8

NUT This part replaces 08316-10083.

08316-1008B

$2.65

9

EXPANDER

56272-44500

$4.16

10

NUT

09159-06024

$2.12

11

MIRROR ASSY, REAR VIEW RH

56500-40F10

$184.32

12

MIRROR ASSY, REAR VIEW LH

56600-40F10

$184.32

13

CUSHION

94576-24F00

$6.14

14

BOLT This part replaces 07130-06303.

07130-0630B

$3.04

15

CAP

09250-05009

$2.10

16

CABLE ASSY, CLUTCH

58200-35F10

$23.19

17

CLAMP This part replaces 36651-35F01.

36651-35F02

Unavailable

18

BOLT This part replaces 01550-05123.

01550-0512B

$3.12

19

CABLE ASSY, THROTTLE NO.1

58300-35F20

Unavailable

20

CABLE ASSY, THROTTLE NO.2

58300-35F30

$39.77

21

GUIDE,THROTTLE This part replaces 58621-35F10.

58621-35F1V

Unavailable

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
