2003 Suzuki GSX-R750 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2003 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

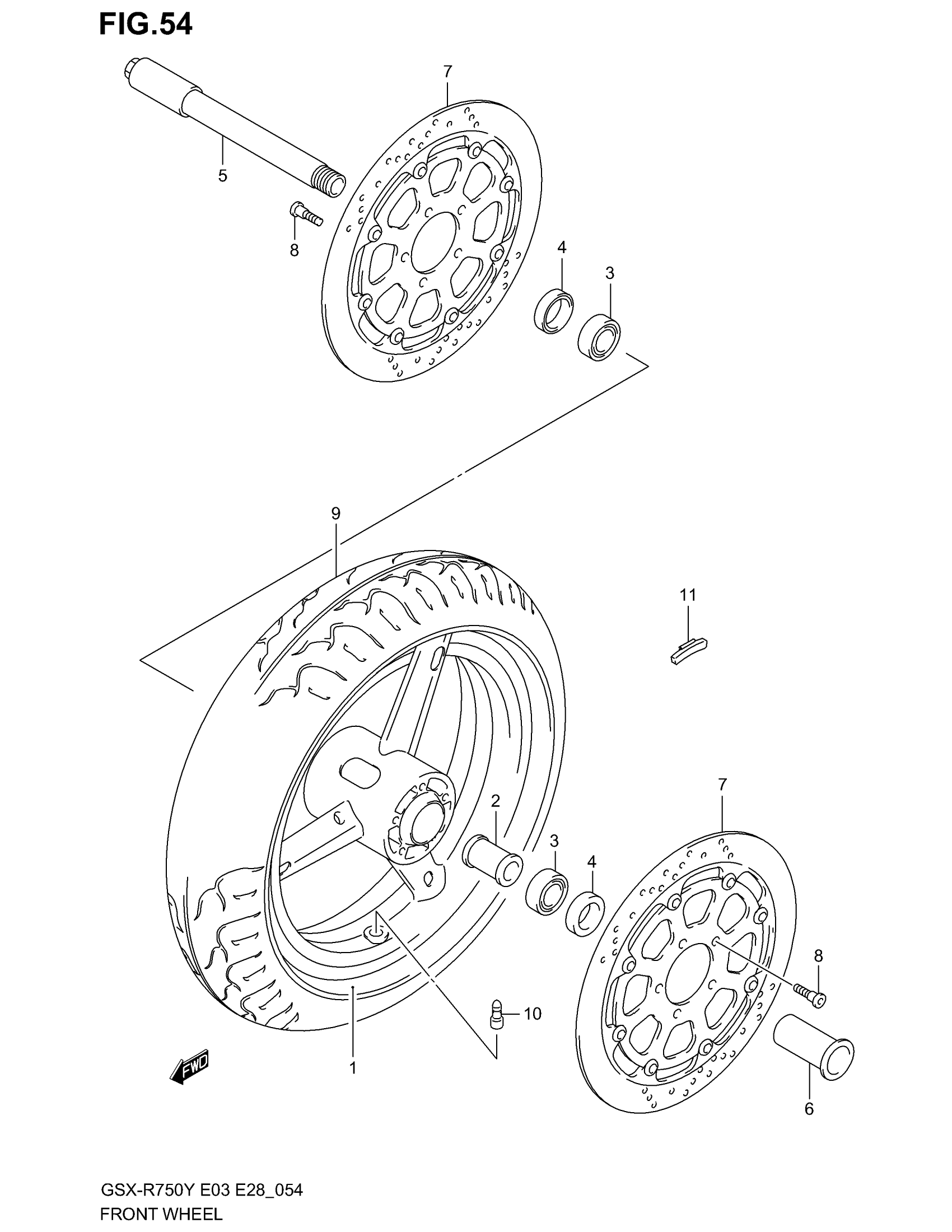

2003 Suzuki GSX-R750 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL Y FOR CY8 This part replaces 54111-35F00-Y6G.

54111-35F01-Y6G

1
Out of stock

1

WHEEL,FR,17M/CX | MODEL Y FOR L99 MODEL K1 FOR L99 MODEL K2 FOR L99 MODEL K3 FOR LR5 This part replaces 54111-35F00-28W.

54111-35F01-28W

1
Out of stock

1

WHEEL, FRONT 17M/CXMT3.50 (BLACK) | MODEL K1 FOR BP9,FN9 MODEL K2 FOR BP9,FN9 MODEL K3 FOR CT5,KU2 This part replaces 54111-35F00-019.

54111-35F11-019

1
Out of stock

2

SPACER,FR HUB BEARING This part replaces 54731-35F00.

54731-35F10

1
Out of stock

3

BEARING (25X52X15)

09262-25061

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT | MODEL Y/K1

54711-35F00

1
Out of stock

5

AXLE, FRONT | MODEL K2/K3

54711-35F10

1
Out of stock

6

NUT, AXLE

54712-33E00

1
Out of stock

7

DISC, FRONT BRAKE | MODEL Y/K1

59210-33E60

2
Out of stock

7

DISC, FRONT BRAKE | MODEL K2

59210-33E30

2
Out of stock

7

DISC,FRONT BRAK | MODEL K3 This part replaces 59210-33E90.

59210-33E91

2
Out of stock

8

BOLT (8X33) | MODEL Y This part replaces 09106-08125.

09106-08148

10
Out of stock

8

BOLT | MODEL K1/K2/K3

09106-08148

10
Out of stock

9

TIRE, FRONT 120/70 ZR17 (58W) (DUNLOP)

55110-35F10

1
Out of stock

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

11

BALANCER (10G) This part replaces 43232-82000.

43222-73H10

1
Out of stock

11

BALANCER (20G) This part replaces 43234-82000.

43224-73H10

1
Out of stock

11

BALANCER (30G) This part replaces 43236-82000.

43226-73H10

1
Out of stock
