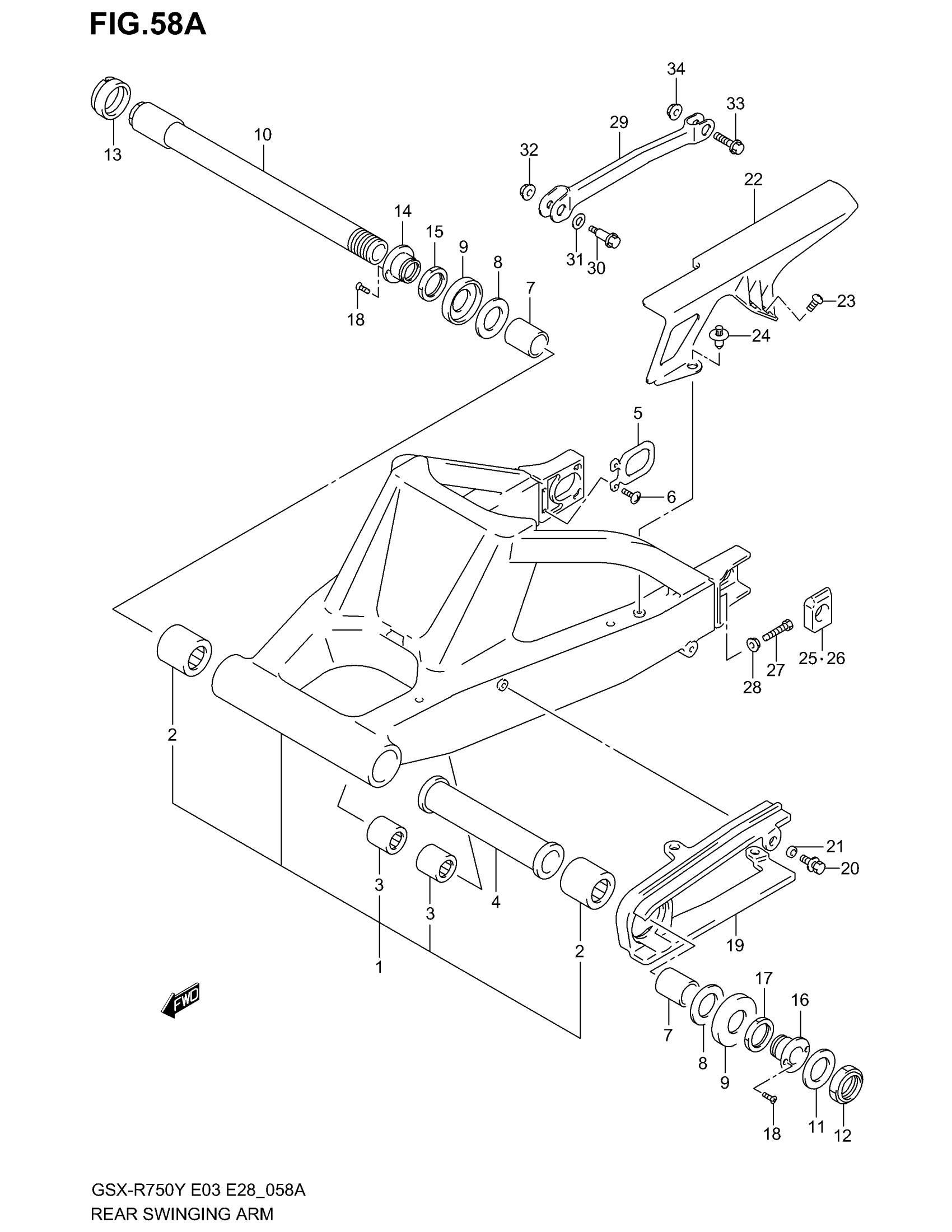

Suzuki GSX-R750 (2003) REAR SWINGING ARM (MODEL K2/K3) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-35F10

Unavailable

2

BEARING, PIVOT (30X47X2)

09263-30040

$35.38

3

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

4

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$63.75

5

PLATE, BRACKET

61124-33E00

$6.27

6

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

7

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$12.02

8

WASHER, THRUST

08211-25481

$5.17

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$8.29

10

SHAFT, PIVOT

61211-33E00

Unavailable

11

WASHER

09160-25070

$4.30

12

NUT This part replaces 09159-25001.

09159-25003

$28.75

13

NUT, PIVOT

61214-40C31

$64.22

14

BOSS, PIVOT RH

61212-33E00

Unavailable

15

NUT, PIVOT RH

61213-33E00

Unavailable

16

BOSS, PIVOT LH

61214-33E00

Unavailable

17

NUT, PIVOT LH

61215-33E00

Unavailable

18

SCREW This part replaces 02122-05123.

02122-0512A

$1.88

19

BUFFER,CHAIN TO This part replaces 61273-35F00.

61273-35F01

$51.65

20

SCREW

09116-06152

$2.14

21

SPACER (6.5X9X5)

09180-06306

$2.06

22

CASE, CHAIN This part replaces 61311-35F00.

61311-35F01

$102.08

23

SCREW (6X16)

09139-06083

$2.24

24

CLIP

09409-08308-5ES

$1.97

25

ADJUSTER, CHAIN RH

61445-40F00

$43.20

26

ADJUSTER, CHAIN LH

61446-40F00

$43.20

27

BOLT (8X50)

09100-08287

$2.80

28

NUT This part replaces 08316-10083.

08316-1008B

$2.65

29

TORQUE LINK, REAR

64310-35F00

Unavailable

30

BOLT, FRONT

09111-08093

$7.95

31

WASHER | MODEL K2

09160-12011

$1.48

32

NUT

08319-31087

$2.31

33

BOLT, REAR (10X37)

09103-10019

$2.71

34

NUT

08319-31107

$2.73
