2003 Suzuki GSX-R750 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2003 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

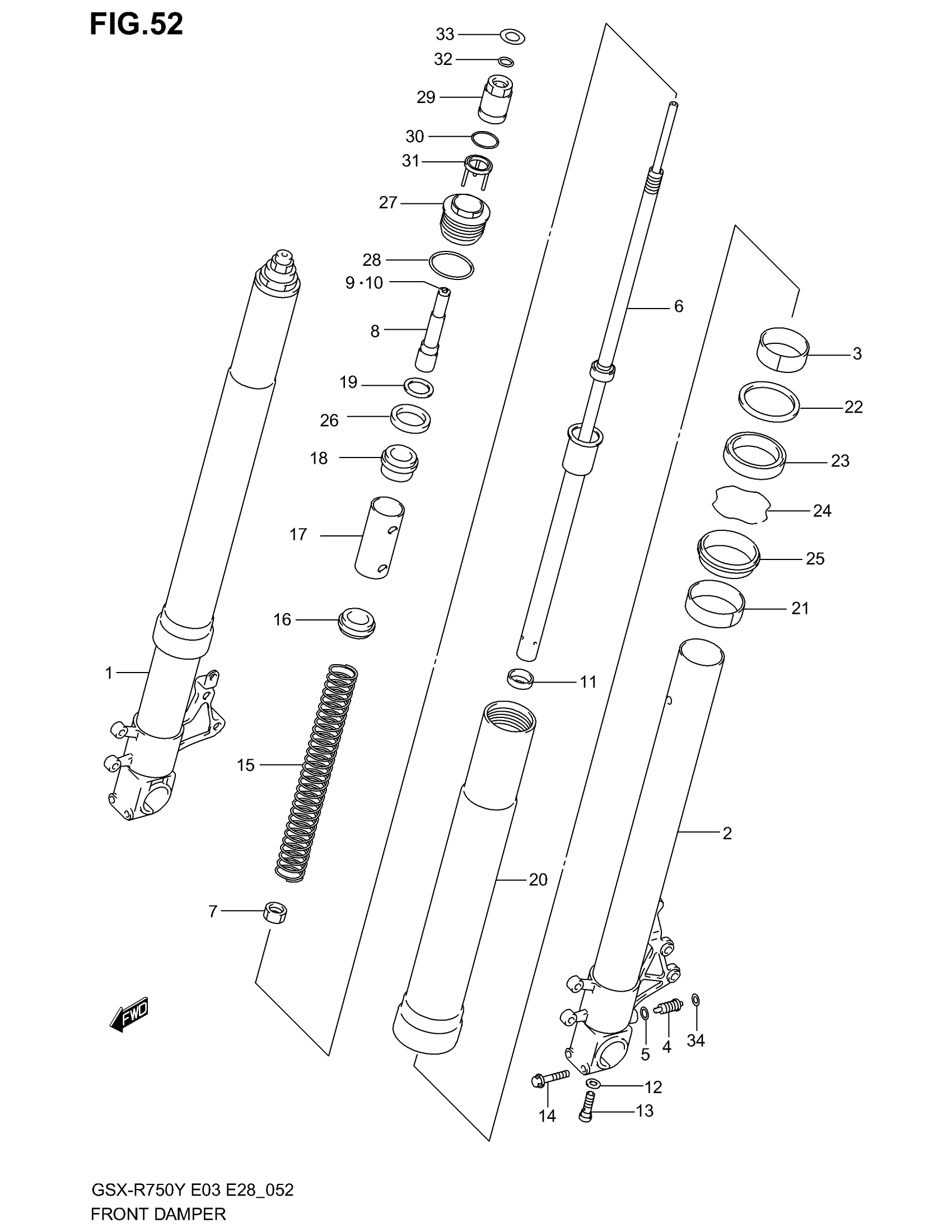

2003 Suzuki GSX-R750 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, FRONT FORK RH | MODEL Y/K1

51103-35F10

1
Out of stock

DAMPER ASSY, FRONT FORK RH | MODEL K2/K3

51103-35F40

1
Out of stock

DAMPER ASSY, FRONT FORK LH | MODEL Y/K1

51104-35F10

1
Out of stock

DAMPER ASSY, FRONT FORK LH | MODEL K2/K3; Includes Item(s) 1 - 34

51104-35F40

1
Out of stock

1

TUBE, INNER RH

51110-35F00

1
Out of stock

2

TUBE, INNER LH

51120-35F00

1
Out of stock

3

BUSH, SLIDE

51121-13E00

2
Out of stock

4

PIECE, ADJUSTER LOWER

51830-33E00

2
Out of stock

5

O RING

09280-14011

2
Out of stock

6

ROD, DAMPER

52110-35F00

2
Out of stock

7

NUT

51827-33E00

2
Out of stock

8

CASE, ADJUST

51829-33E20

2
Out of stock

9

PIECE, ADJUST

51821-33E00

2
Out of stock

10

O RING

09280-03002

2
Out of stock

11

PLATE, CENTERING

51815-33E00

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

2
Out of stock

13

BOLT

51147-17C00

2
Out of stock

14

BOLT, AXLE HOLDLER

51166-35F00

4

$7.47

In stock

15

SPRING

51171-35F00

2
Out of stock

16

JOINT, SPRING LOWER

51172-17E00

2
Out of stock

17

SPACER, SPRING

51176-33E00

2
Out of stock

18

.GUIDE,SPRING UPR

51175-22D00

2
Out of stock

19

WASHER, JOINT

51172-34370

2
Out of stock

20

TUBE, OUTER

51131-35F00

2
Out of stock

21

BUSH, GUIDE

51152-13E00

2
Out of stock

22

.SPACER, SEAL

51168-17C00

2
Out of stock

23

SEAL, OIL

51153-14D00

2
Out of stock

24

RING, STOPPER

51556-38B00

2
Out of stock

25

SEAL, DUST

51173-29E00

2
Out of stock

26

RUBBER, SEAT

51193-17D00

2
Out of stock

27

BOLT, FORK

51189-35F00

2
Out of stock

28

O RING, FORK BOLT

51187-08D00

2
Out of stock

29

ADJUSTER, SPRING

51828-35F00

2
Out of stock

30

O RING, ADJUSTER OUTER

51199-17D00

2
Out of stock

31

PLATE, SPRING ADJUSTER

51823-22D30

2
Out of stock

32

RING, STOPPER

51837-17D00

2
Out of stock

33

LABEL, ADJUST PIECE UPPER

51149-42E00

2
Out of stock

34

LABEL, ADJUST PIECE LOWER

51169-42E00

2
Out of stock
