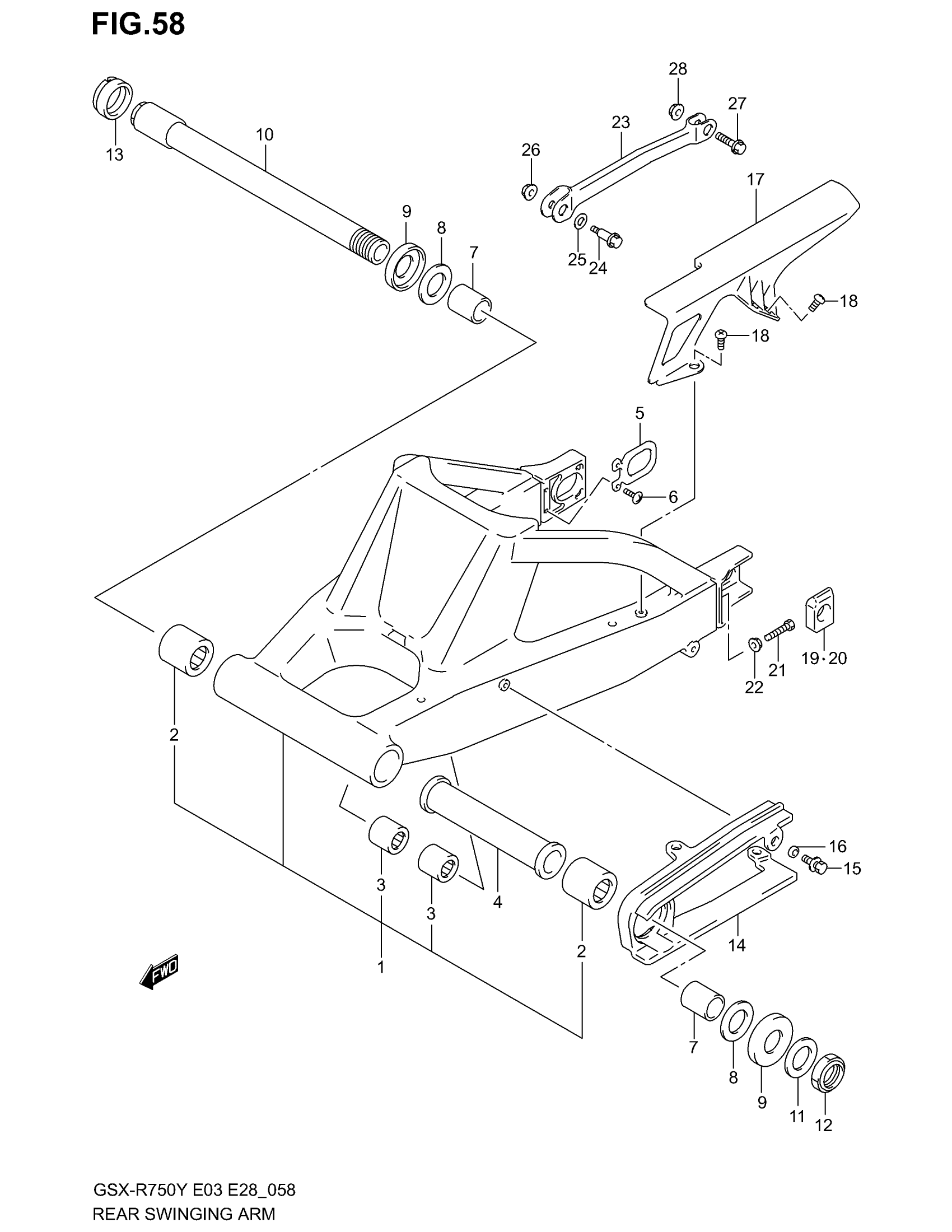

Suzuki GSX-R750 (2003) REAR SWINGING ARM (MODEL Y/K1) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-35F00

Unavailable

2

BEARING, PIVOT (30X47X2)

09263-30040

$36.43

3

.BEARING This part replaces 09263-17039.

09263-17058

$15.30

4

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$63.75

5

PLATE, BRACKET

61124-33E00

$6.56

6

SCREW This part replaces 02142-06163.

02142-0616A

$1.41

7

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$12.56

8

WASHER, THRUST

08211-25481

$5.32

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$8.67

10

SHAFT, PIVOT

61211-33E00

Unavailable

11

WASHER

09160-25070

$4.44

12

NUT This part replaces 09159-25001.

09159-25003

$29.61

13

NUT, PIVOT

61214-40C31

$64.22

14

BUFFER,CHAIN TO This part replaces 61273-35F00.

61273-35F01

$51.65

15

SCREW

09116-06152

$2.21

16

SPACER (6.5X9X5)

09180-06306

$2.13

17

CASE, CHAIN This part replaces 61311-35F00.

61311-35F01

$102.08

18

SCREW (6X16)

09139-06083

$2.31

19

ADJUSTER, CHAIN, R This part replaces 61445-35F00.

61445-40F00

$45.14

20

ADJUSTER, CHAIN, L This part replaces 61446-35F00.

61446-40F00

$45.14

21

BOLT (8X50)

09100-08287

$2.88

22

NUT This part replaces 08316-10083.

08316-1008B

$2.74

23

TORQUE LINK, REAR

64310-35F00

Unavailable

24

BOLT, FRONT (8X44)

09111-08085

$7.03

25

WASHER

09160-12011

$1.52

26

NUT

08319-31087

$2.38

27

BOLT, REAR (10X37)

09103-10019

$2.71

28

NUT

08319-31107

$2.80
