1993 Suzuki GSX-R600WP Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

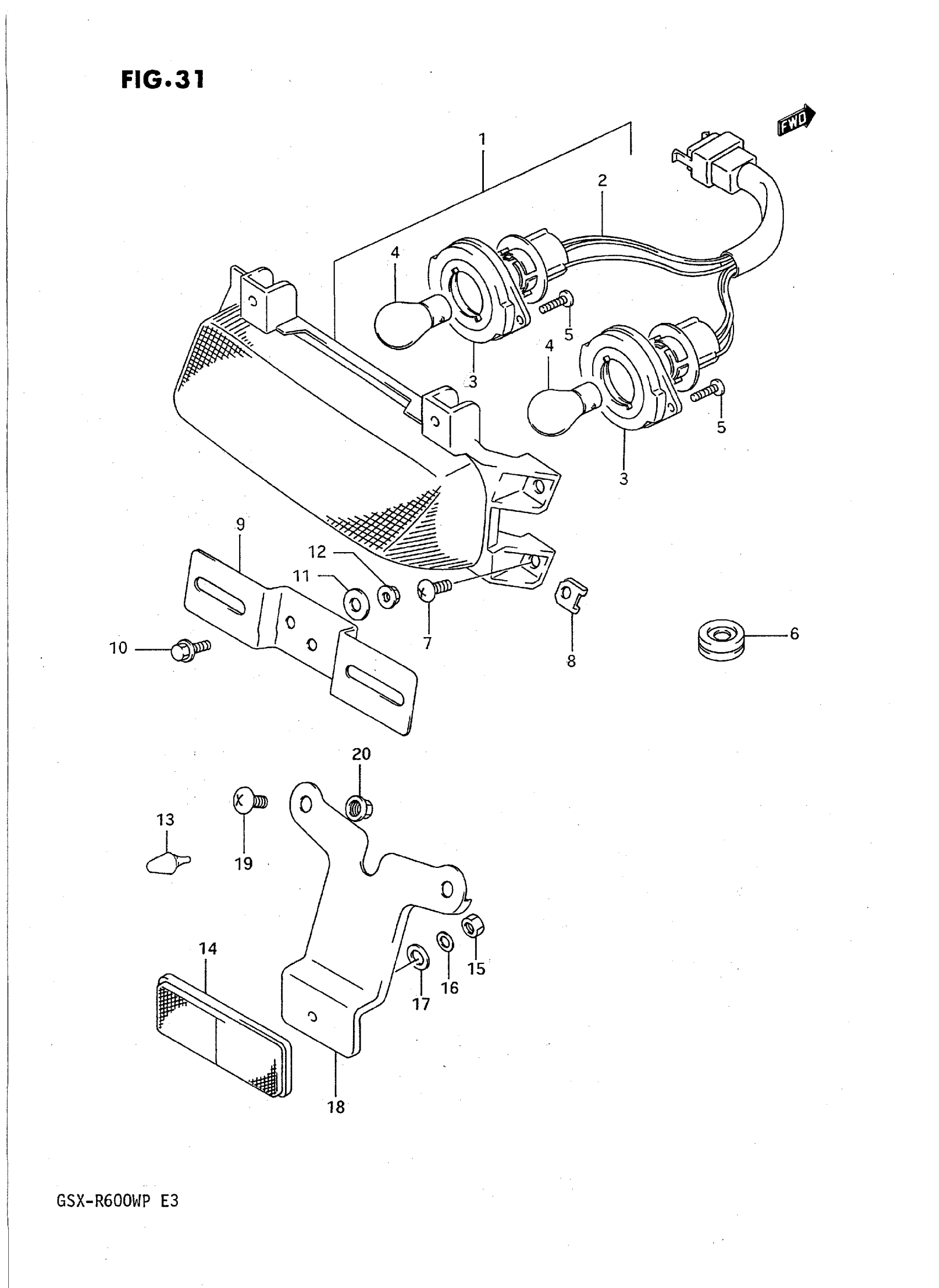

1993 Suzuki GSX-R600WP Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-17E30

1
Out of stock

2

SOCKET & CORD

35718-17E00

1
Out of stock

3

CUSHION

35765-48B21

2
Out of stock

4

BULB (12V,21/5W)

09471-12128

2
Out of stock

5

SCREW This part replaces 03211-04126.

03211-0412A

4
Out of stock

6

GROMMET

09308-07013

2
Out of stock

7

.SCREW This part replaces 02142-05124.

02142-0512A

4
Out of stock

8

NUT This part replaces 09148-05023.

09148-05021

6
Out of stock

9

BRACKET, LICENSE PLATE This part replaces 35927-17E30.

35927-00A10

1
Out of stock

10

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

11

.WASHER (6.5X20X1.6) This part replaces 09160-06059.

09160-06088

2
Out of stock

12

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

13

CUSHION

09321-06026

1
Out of stock

14

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

3
Out of stock

15

.NUT | MODEL N This part replaces 08310-22055.

09140-05006

3
Out of stock

15

NUT | MODEL P This part replaces 08310-11056.

08310-0005A

3
Out of stock

16

LOCK WASHER This part replaces 08321-21055.

08321-0105A

1
Out of stock

17

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

1
Out of stock

18

BRACKET, REAR REFLECTOR

35974-18D00

1
Out of stock

19

SCREW This part replaces 02142-06125.

02142-0612A

2
Out of stock

20

NUT This part replaces 08316-26065.

08316-2006A

2
Out of stock
