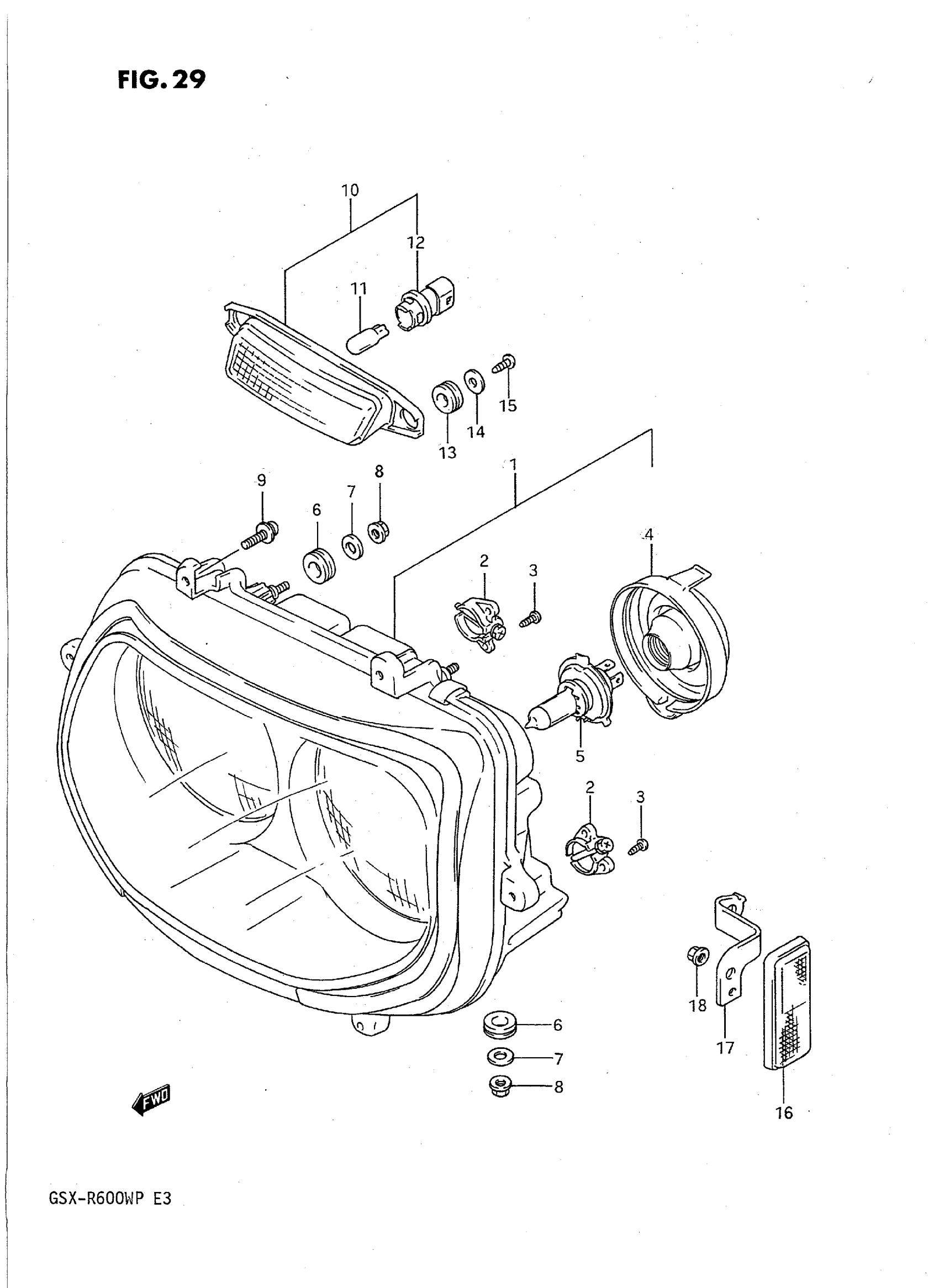

Find the part on the Headlamp diagram for your 1993 Suzuki GSX-R600WP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX-R600WP Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 4

35100-17E00-999

1
Out of stock

2

GEAR UNIT ASSY

35250-33C10

4
Out of stock

3

SCREW This part replaces 03511-04165.

03511-0416A

8
Out of stock

4

COVER, SOCKET

35173-41C00

2
Out of stock

5

BULB (12V,60/55W)

09471-12060

2
Out of stock

6

CUSHION This part replaces 09320-09034.

09320-09063

4
Out of stock

8

NUT This part replaces 08310-11065.

08310-0006A

4
Out of stock

9

SCREW This part replaces 02112-75165.

02112-7516A

6
Out of stock

10

LAMP ASSY, FRONT POSITION | Includes Item(s) 11 - 12

36110-17E00

1
Out of stock

11

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

1
Out of stock

12

SOCKET

36118-41C00

1
Out of stock

13

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

14

WASHER (4.5X16X1.2) This part replaces 09160-04014.

09160-04026

2
Out of stock

15

SCREW This part replaces 03541-04105.

03541-0410A

2
Out of stock

16

REFLECTOR, FRONT SIDE

35950-43431

2
Out of stock

17

BRACKET, RH

35956-17D00

1
Out of stock

17

BRACKET, LH

35957-17D00

1
Out of stock

18

NUT | MODEL N This part replaces 08361-15055.

08361-1505B

2
Out of stock

18

NUT | MODEL P This part replaces 08310-11056.

08310-0005A

2
Out of stock
