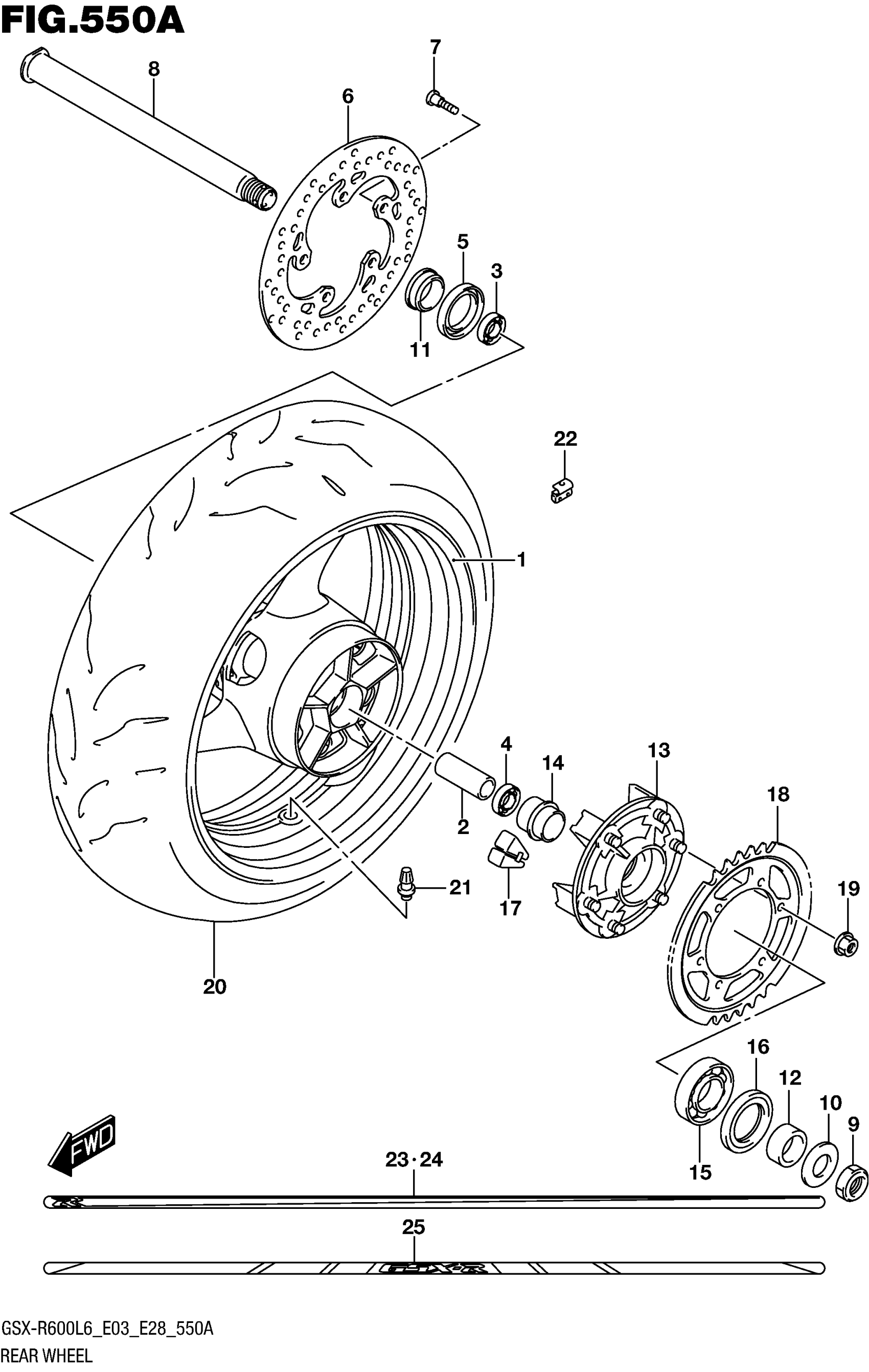

Suzuki GSX-R600L6 (2016) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50)

64111-14J00-019

$1,426.01

1

(BLACK)

64111-14J00-019

$1,426.01

2

SPACER,RR WHEEL BEARING

64731-14J00

$33.54

3

BEARING (25X52X15) | RH

09262-25061

$30.77

4

BEARING | LH

08123-60057

$31.52

5

.SEAL,OIL (32X52X7) | RH

09285-32004

$7.42

6

DISC,RR BRAKE

69211-18G00

$355.08

7

BOLT (8X21)

09106-08160

$3.32

8

AXLE,RR

64711-14J00

$92.82

9

NUT

09159-22007

$17.84

10

WASHER (22X35X2)

09160-22081

$2.82

11

SPACER, AXLE RH

54751-41G10

$18.80

12

SPACER,RR AXLE,L

64751-44G00

$39.70

13

DRUM,RR SPROCKET

64610-47H00

$349.18

14

RETAINER, SPROCKET DRUM

64733-44G00

$28.68

15

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$36.61

16

OIL SEAL (39X65X7)

09285-39001

$9.86

17

ABSORBER, HUB SHOCK

64651-47H10

$28.80

18

SPROCKET, REAR (43T-525)

64511-14J00

$154.63

19

NUT

08319-3110A

$2.80

20

TIRE, REAR

65110-14J00

$784.48

20

(180/55 ZR17M/C(73W) BATTLAX

65110-14J00

$784.48

20

BT016R BRIDGESTONE))

65110-14J00

$784.48

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

22-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

22-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

22-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93

23

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-47H00-A29

$79.15

24

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-47H00-A29

$79.15

25

TAPE, WHEEL | FOR AJP

68251-47H10-BAJ

$70.23
