Description

Price

1

GRIP,THROTTLE

57110-21H02

$19.46

2

LEVER ASSY,BRAKE

57300-29G40

$85.46

3

.BOLT, PIVOT

57431-29G00

$8.91

4

.NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

6

.SCREW

57465-17C00

$2.37

7

GRIP, LH

57211-21H01

$10.65

8

LEVER ASSY,CLUTCH This part replaces 57500-41G41.

57500-41G42

$66.16

9

.LEVER, CLUTCH

57621-41G10

$32.23

10

.BOLT

57431-41G00

$11.46

11

.COLLAR

57532-41G00

$18.88

12

NUT

08319-3106A

$2.09

13

.SWITCH ASSY, CLUTCH

57560-41G20

$21.87

14

.SCREW,CLUTCH SWITCH

57562-41G21

$7.97

15

..BOLT

01547-0620B

$2.50

16

.NUT, CABLE ADJUSTER

57641-33E21

$46.38

17

.SPRING

57644-33E00

$8.93

18

.SCREW, SPRING

57642-33E00

$4.53

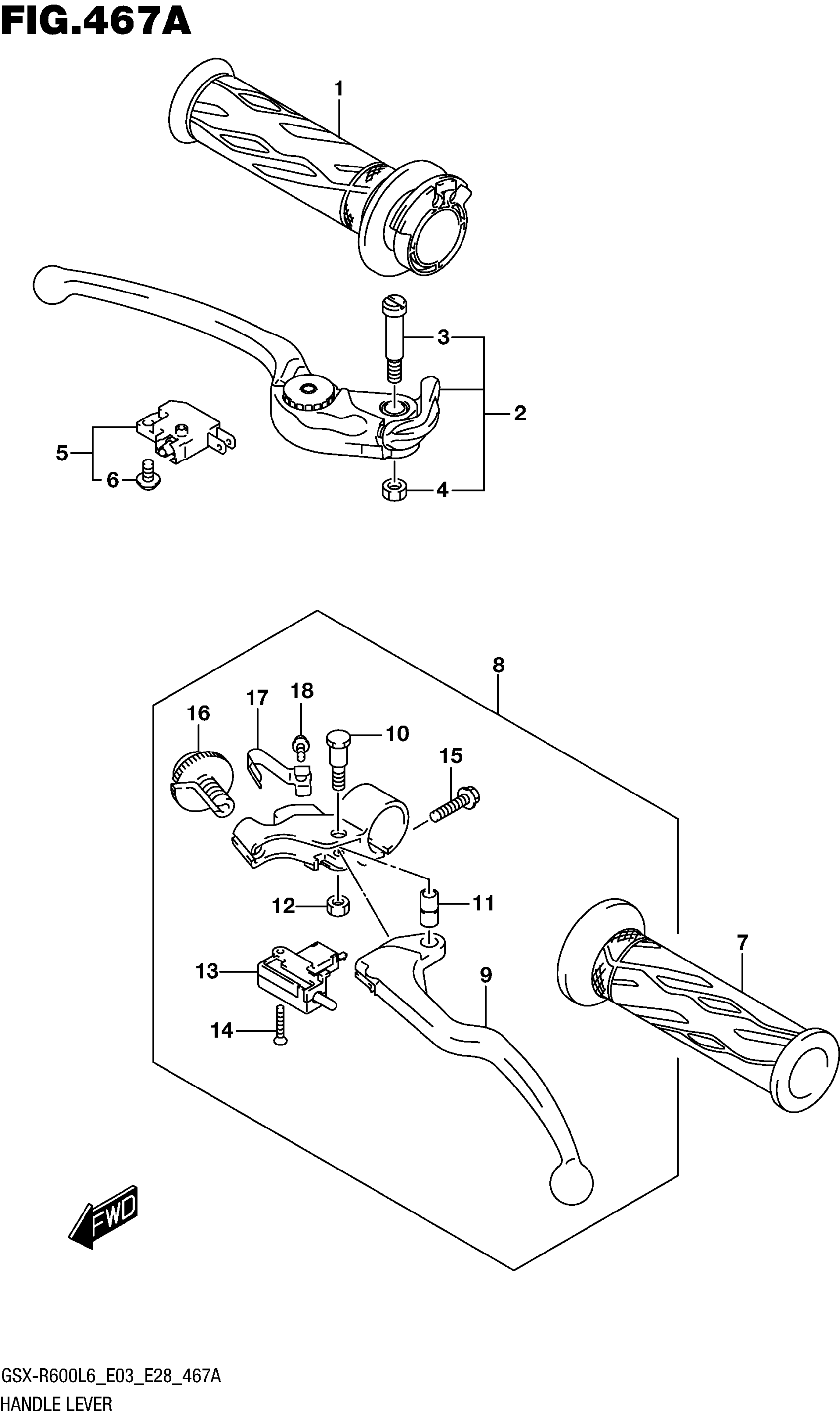

Suzuki GSX-R600L6 (2016) HANDLE LEVER Diagram
