2016 Suzuki GSX-R600L6 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2016 Suzuki GSX-R600L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

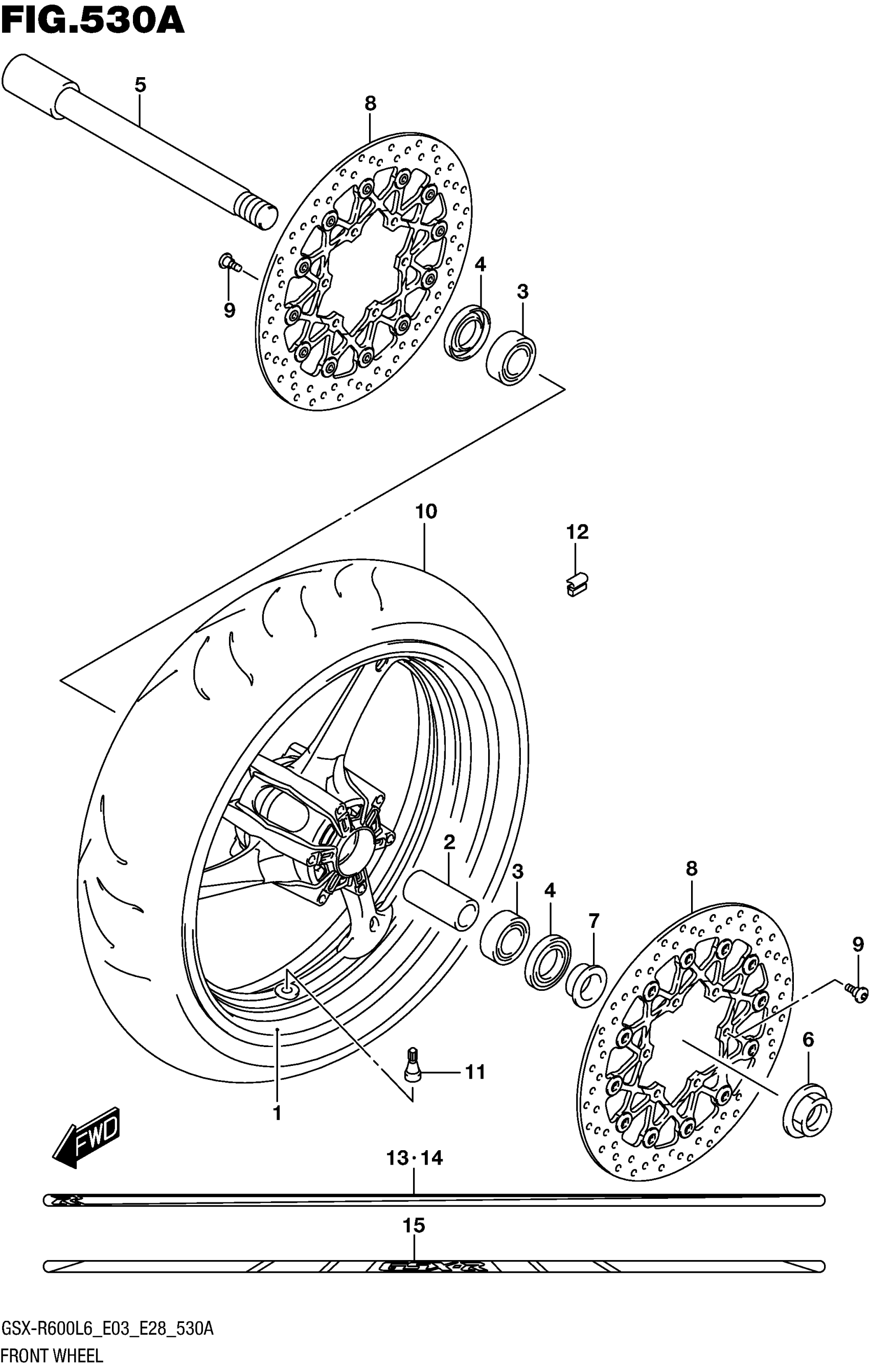

2016 Suzuki GSX-R600L6 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (17M/CXMT3.50)

54111-14J00-019

1
Out of stock

1

(BLACK)

54111-14J00-019

1
Out of stock

2

SPACER, HUB BEARING

54731-14J00

1
Out of stock

3

BEARING This part replaces 09262-22035.

09262-22049

2
Out of stock

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

2
Out of stock

5

AXLE,FR

54711-14J00

1
Out of stock

6

NUT, AXLE

62994-47H00

1
Out of stock

7

SPACER,FR AXLE,L

54751-14J00

1
Out of stock

8

DISC,FR BRAKE

59210-37H01

2
Out of stock

9

BOLT (6X21)

09106-06124

12
Out of stock

10

TIRE, FRONT

55110-14J00

1
Out of stock

10

(120/70 ZR17M/C(58W) BATTLAX

55110-14J00

1
Out of stock

10

BT016F BRIDGESTONE)

55110-14J00

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

12-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

12-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

13

TAPE, RH (BLACK/ORANGE) | FOR YSF

68251-47H00-A29

1
Out of stock

14

TAPE, LH (BLACK/ORANGE) | FOR YSF

68252-47H00-A29

1
Out of stock

15

TAPE, WHEEL | FOR AJP

68251-47H10-BAJ

2
Out of stock
