2007 Suzuki GSX-R600 Under Cowling Diagram

← All diagrams

Find the part on the Under Cowling diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

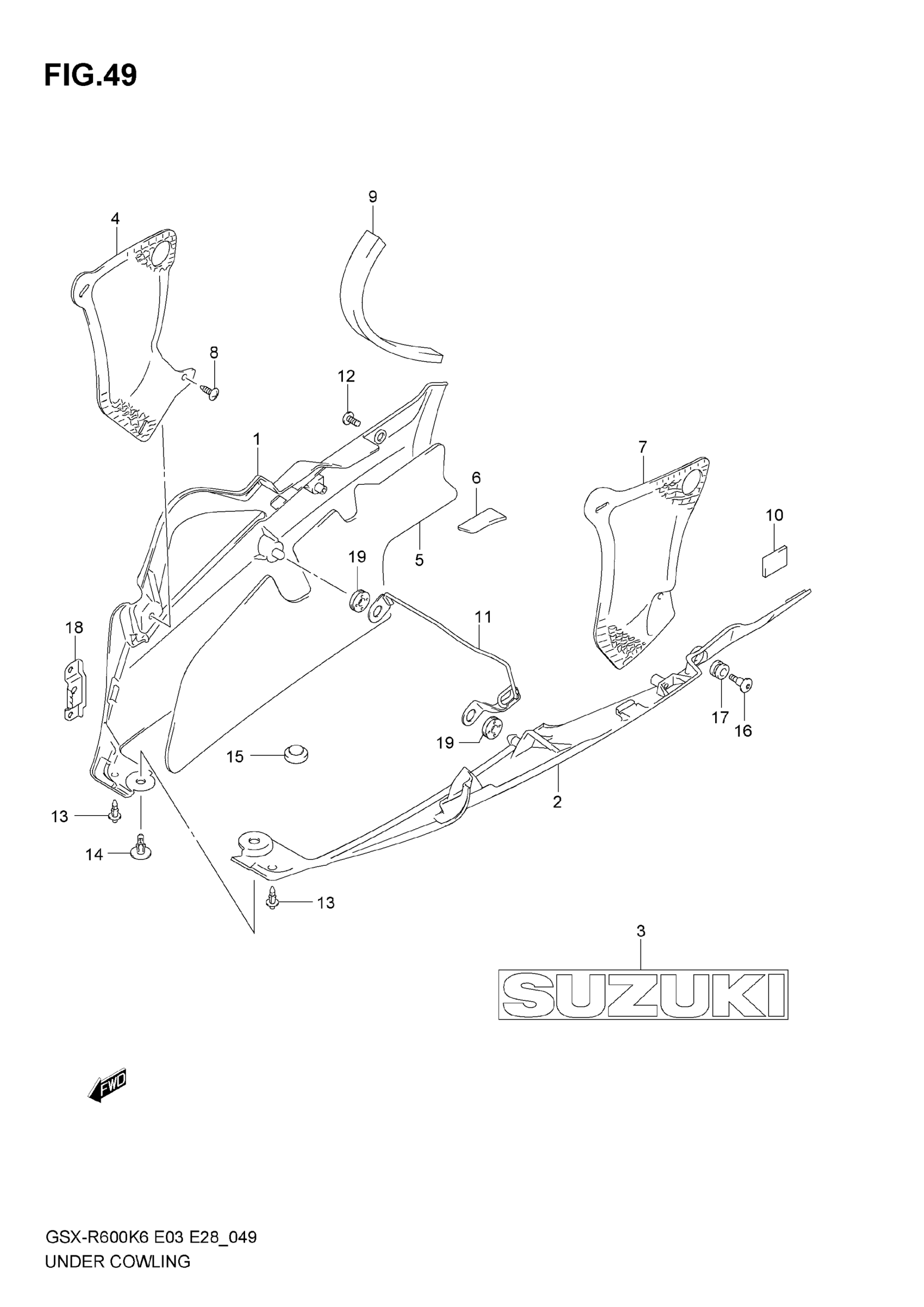

2007 Suzuki GSX-R600 Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL,UNDER,R | FOR BZG,CWH,CWJ,DYH,DYJ This part replaces 94470-01H00-YKV.

94470-01H01-YKV

1
Out of stock

1

COWL,UNDER,R | FOR CAD This part replaces 94470-01H00-4TX.

94470-01H01-4TX

1
Out of stock

1

COWL,UNDER,R | FOR CRU This part replaces 94470-01H00-4UX.

94470-01H01-4UX

1
Out of stock

2

1

$397.92

In stock

2

COWL, UNDER LH (BLACK) | FOR CAD

94480-01H00-4TX

1
Out of stock

2

COWL, UNDER LH (BLACK) | FOR CRU; Includes Item(s) 3 - 3

94480-01H00-4UX

1
Out of stock

3

EMBLEM (SILVER) | FOR YKV

68181-01H00-YD8

2

$36.30

In stock

3

EMBLEM (GRAY) | FOR 4TX

68181-01H00-YU8

2
Out of stock

3

EMBLEM (BLACK) | FOR 4UX

68181-01H00-019

2

$36.30

In stock

4

SHIELD, HEAT NO.1 RH

94472-01H01

1

$54.07

In stock

5

SHIELD, HEAT NO.2 RH

94472-01H10

1

$37.12

In stock

6

SHIELD, HEAT NO.3 RH

94472-01H20

1

$9.25

In stock

7

SHIELD, HEAT LH

94482-01H01

1

$52.10

In stock

8

SCREW

03541-1516A

2

$2.23

In stock

9

CUSHION

94460-01H00

1

$20.87

In stock

10

1

$5.70

In stock

11

BRACKET, LOWER

94530-01H00

1

$17.25

In stock

12

SCREW, RH

09139-05064

1
Out of stock

13

CLIP, FRONT (BLACK)

09409-06314-5PK

2

$2.92

In stock

14

CLIP, JOINT

94479-35F00

1
Out of stock

15

CUSHION, LOWER

09321-10018

1
Out of stock

16

SCREW, LH

09139-06126

1
Out of stock

17

CUSHION

09320-09016

1
Out of stock

18

PLATE

94498-01H00

1

$11.80

In stock

19

CUSHION

09320-08028

2
Out of stock
← Stand Optional →
