2007 Suzuki GSX-R600 Inner Cowling Diagram

← All diagrams

Find the part on the Inner Cowling diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

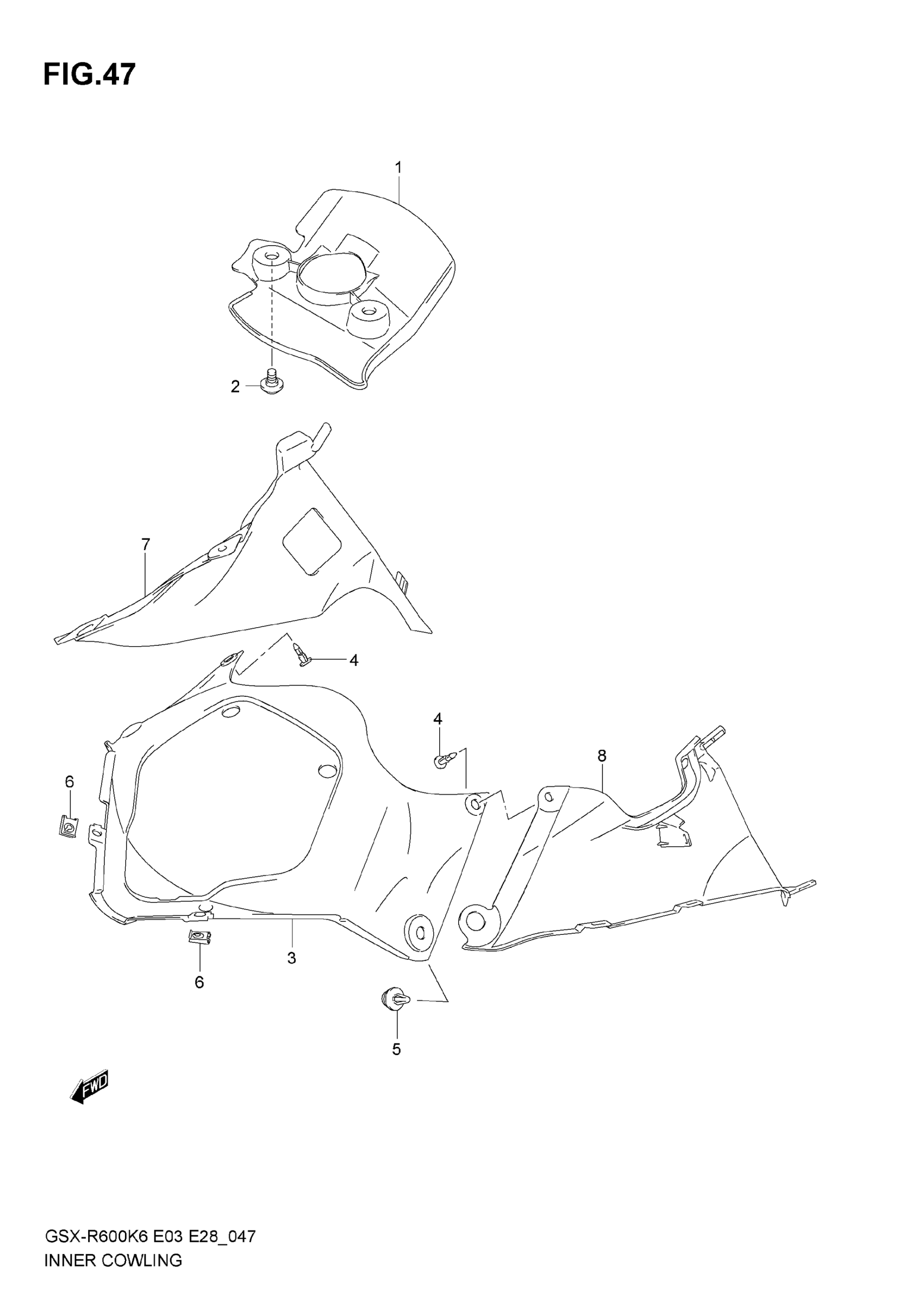

2007 Suzuki GSX-R600 Inner Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,LWR BRACKET

94458-01H00

1
Out of stock

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

2
Out of stock

3

COVER, BODY COWL

94419-01H00

1
Out of stock

4

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

5

CLIP

09409-07333

2
Out of stock

6

NUT

09148-05038

2
Out of stock

7

COWL, UNDER INNER RH

94461-01H00

1
Out of stock

8

COWL, UNDER INNER LH

94462-01H00

1
Out of stock
