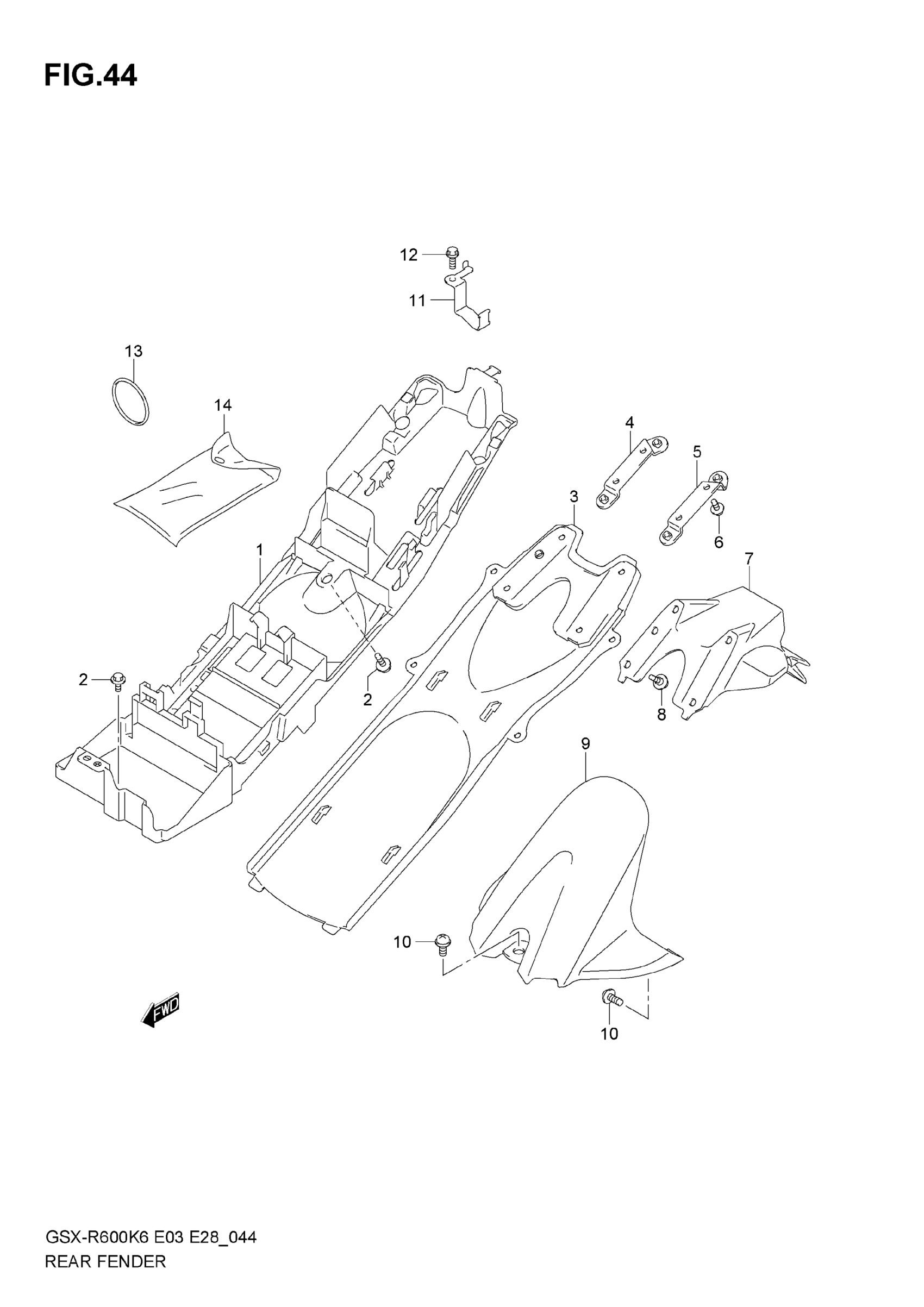

Suzuki GSX-R600 (2007) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT UPPER

63111-01H00

Unavailable

2

BOLT (6X12) This part replaces 63161-43E00-A05.

09111-06107

$2.66

3

FENDER, REAR FRONT LOWER

63112-01H00

Unavailable

4

BRACKET, RH

63120-01H00

$14.47

5

BRACKET, LH

63220-01H00

$14.47

6

BOLT

01550-0612A

$1.97

7

FENDER, REAR

63113-01H00

$124.32

8

BOLT (6X16) This part replaces 09111-06089-A05.

09111-06089

$2.61

9

FENDER, LOWER This part replaces 63114-01H00.

63114-01H02

$61.17

10

BOLT

09103-06289

$1.89

11

PLATE, FUSE BOX

47410-01H00

Unavailable

12

BOLT

01550-0612A

$1.97

13

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.50

14

TOOL ASSY This part replaces 09800-21039.

09800-21089

$88.40
