2007 Suzuki GSX-R600 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

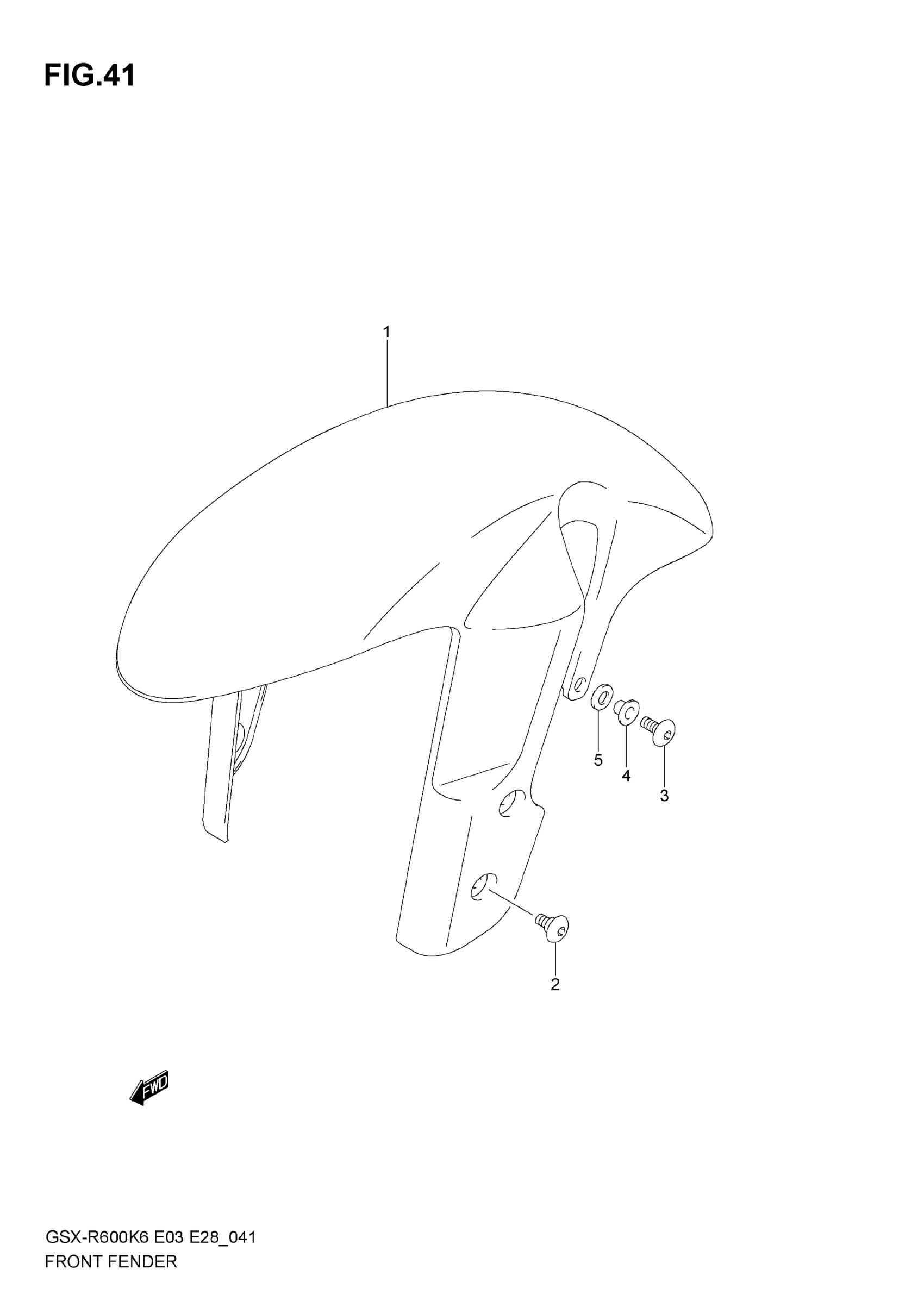

2007 Suzuki GSX-R600 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (BLACK)

53110-41G00-019

1

$347.20

In stock

2

SCREW, FRONT

09139-06144

4

$2.68

In stock

3

SCREW, REAR

09139-06030

2

$3.58

In stock

4

WASHER

09169-06063

2
Out of stock

5

WASHER

53121-33E00

2
Out of stock
