2007 Suzuki GSX-R600 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

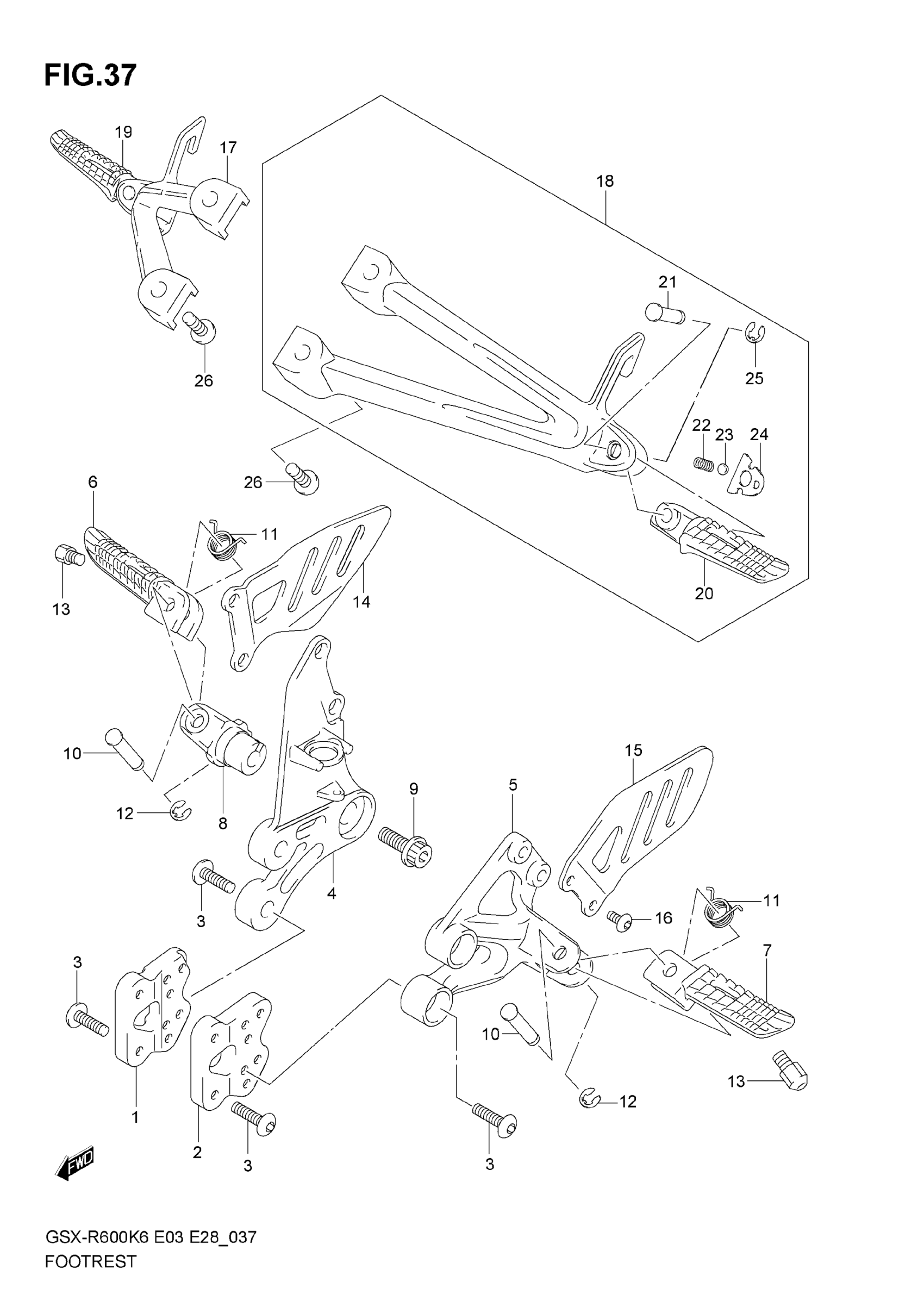

2007 Suzuki GSX-R600 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST NO.1 RH

43541-01H00

1
Out of stock

2

1

$156.15

In stock

3

BOLT

09106-08181

8
Out of stock

4

BRACKET, FRONT FOOTREST NO.2 RH

43511-01H01

1
Out of stock

5

BRACKET, FRONT FOOTREST NO.2 LH

43521-01H00

1
Out of stock

6

BAR, FOOTREST RH

43516-41G00

1
Out of stock

7

BAR, FOOTREST LH

43526-41G00

1
Out of stock

8

HOLDER, FOOTREST This part replaces 43531-41G00.

43531-41G10

1
Out of stock

9

BOLT (10X28) This part replaces 09106-10064-A05.

09106-10064

1
Out of stock

10

PIN This part replaces 09208-08010-A05.

09208-08010

2
Out of stock

11

SPRING This part replaces 09448-14037-A05.

09448-14037

2
Out of stock

12

E RING

08332-1106A

2
Out of stock

13

.BOLT,BANK SENSOR This part replaces 43576-07D01-A05.

43576-07D01

2
Out of stock

14

1

$75.56

In stock

15

1

$71.55

In stock

17

1

$298.40

In stock

19

BAR, RH

43611-41G00

1

$72.20

In stock

20

BAR, LH

43621-41G00

1

$72.20

In stock

21

PIN This part replaces 09208-08011-A05.

09208-08011

2
Out of stock

22

SPRING

09440-05005

2
Out of stock

23

BALL

06111-07004

2
Out of stock

24

2

$6.63

In stock

25

E RING

08332-1106A

2
Out of stock

26

BOLT

09106-08181

4
Out of stock
