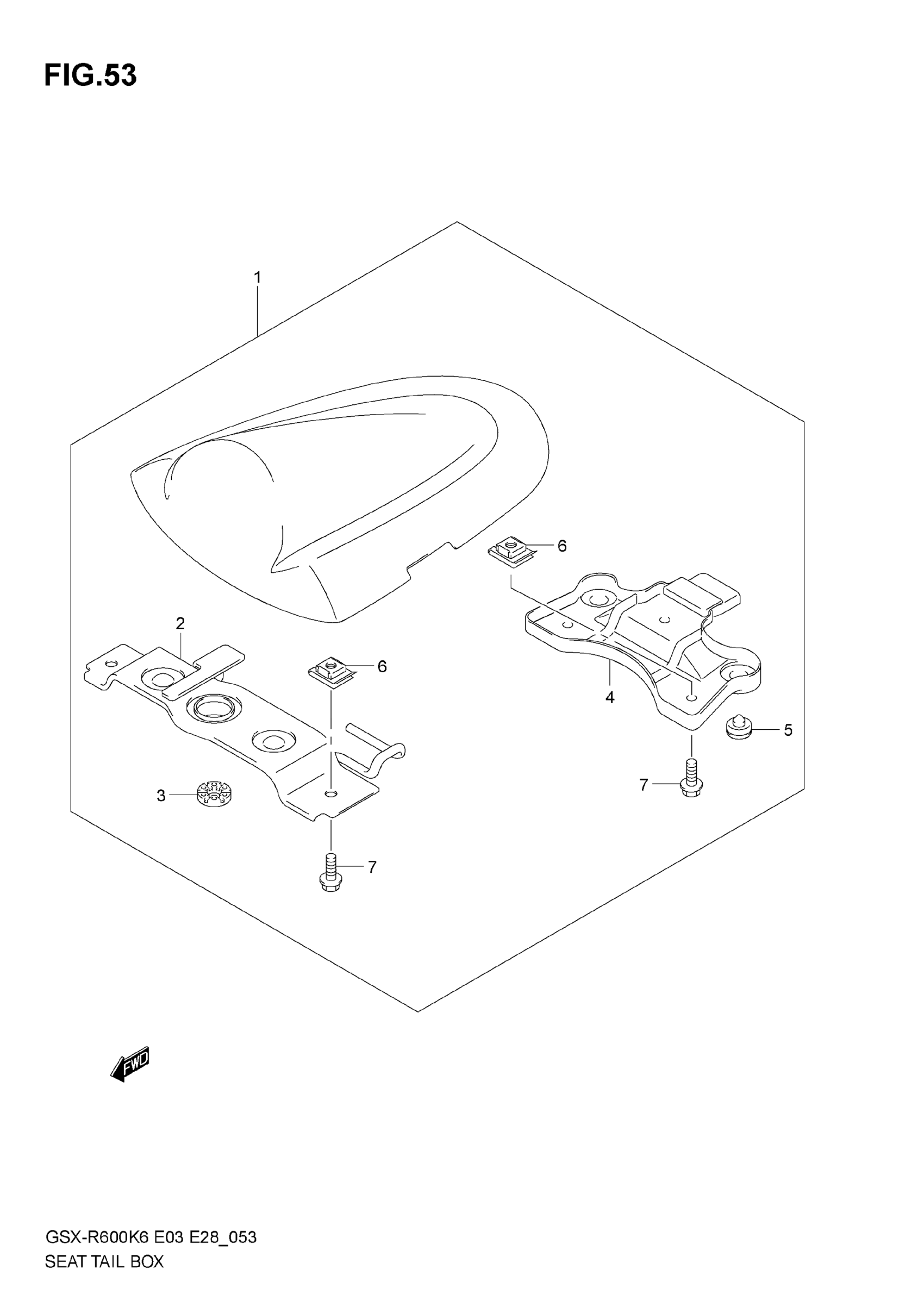

Suzuki GSX-R600 (2007) SEAT TAIL BOX Diagram

#

Description

Price

1

BOX COMP,SEAT T | MODEL K6 FOR CWH MODEL K7 FOR CWH,DYH This part replaces 45550-01H00-YKY.

45550-01H01-YKY

$332.32

1

BOX COMP,SEAT T | MODEL K6 FOR CWJ This part replaces 45550-01H00-YD8.

45550-01H01-YD8

Unavailable

1

BOX COMP,SEAT T | MODEL K6 FOR CAD,CRU MODEL K7 FOR CRU This part replaces 45550-01H00-019.

45550-01H01-019

Unavailable

1

BOX,SEAT TAIL(N | MODEL K6 FOR BZG MODEL K7 FOR DYJ; Includes Item(s) 2 - 7 This part replaces 45550-01H00-YHH.

45550-01H01

$196.08

2

STRIKER

45290-01H00

$79.35

3

CUSHION

45213-31300

$2.80

4

BOTTOM

45552-01H00

Unavailable

5

CUSHION This part replaces 45148-16700.

09321-10002

$2.02

6

NUT

09148-06018

$3.00

7

BOLT

01550-0612A

$2.01
