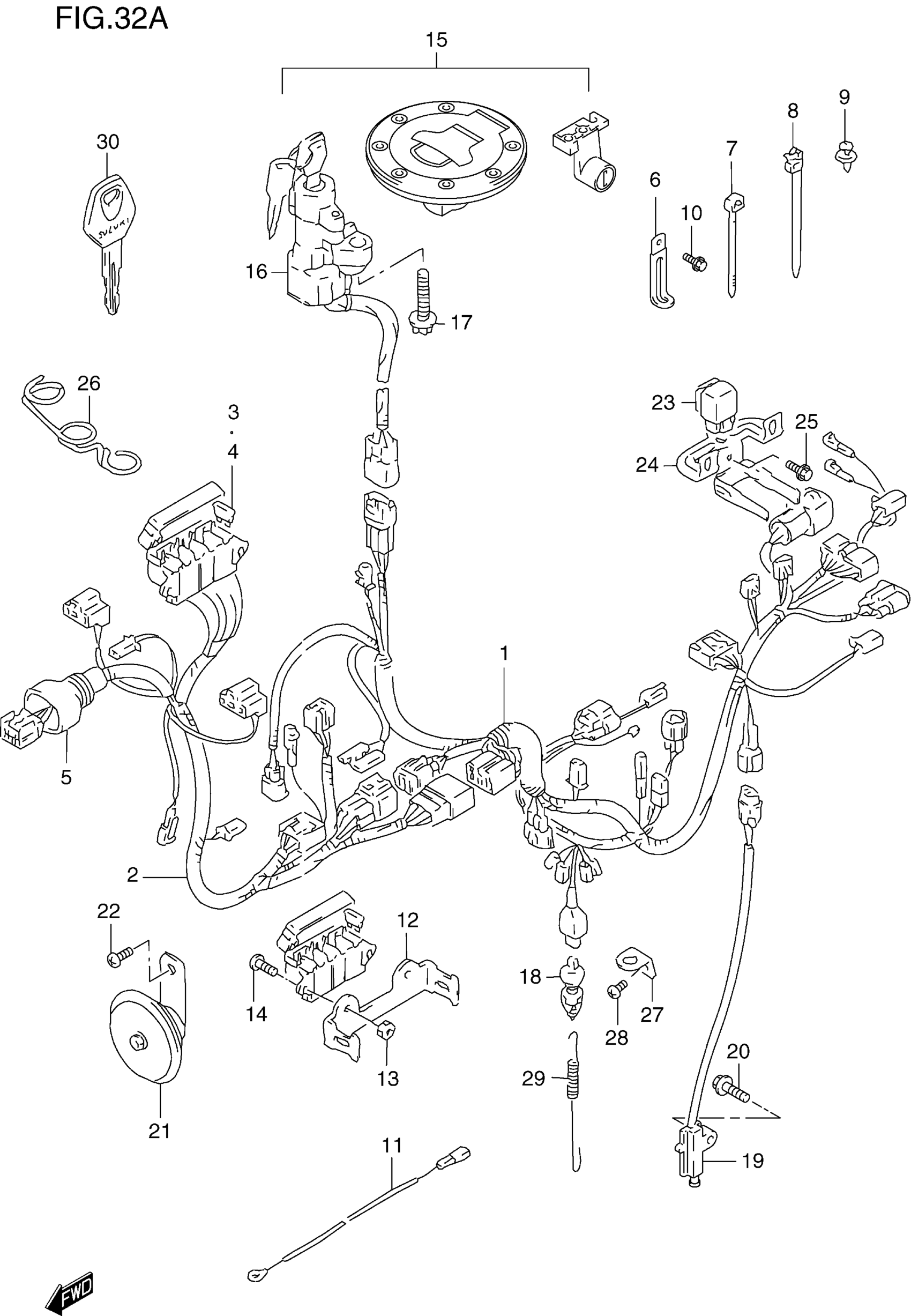

Suzuki GSX-R600 (2000) WIRING HARNESS (MODEL Y) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-34E10

Unavailable

2

HARNESS, WIRING NO.2 | Includes Item(s) 3 - 5

36620-34E10

Unavailable

3

FUSE (10A)

09481-10501

$2.07

4

FUSE (15A)

09481-15501

$2.07

5

COVER, SPEEDOMETER

36618-33E00

$9.90

6

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

7

CLAMP (L:125)

09407-14403

$2.24

7

CLAMP (L:165)

09407-18402

$2.21

8

CLAMP This part replaces 09407-17401.

09407-17402

$4.28

9

CLIP, WIRING HARNESS

09409-07305-5PK

$2.30

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

WIRE, OIL PRESSURE SW

36851-17E10

Unavailable

12

BRACKET, FUSE BOX

36744-33E00

Unavailable

13

NUT This part replaces 94619-27A00.

09159-05048

$6.61

14

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

15

LOCK SET This part replaces 37102-33850.

37102-33851

Unavailable

15

LOCK SET | E33; Includes Item(s) 16

37103-33880

Unavailable

16

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$224.17

17

SCREW, STEERING LOCK

09139-08016

$3.04

18

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

19

SWITCH ASSY, SIDE STAND

37840-33E00

Unavailable

20

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

21

HORN ASSY

38500-20E10

Unavailable

22

SCREW

09125-08003

$1.95

23

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

24

BRACKET, SIDE STAND

38930-33E00

Unavailable

25

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

26

GUIDE, WIRING HARNESS

36619-33E00

Unavailable

27

BRACKET, STOP LAMP SW

43251-21E00

Unavailable

28

SCREW This part replaces 02142-06083.

02142-0608A

$1.30

29

SPRING, STOP LAMP SW

09443-06005

$3.67

30

KEY, BLANK | OPT

37146-33E00

$19.42
