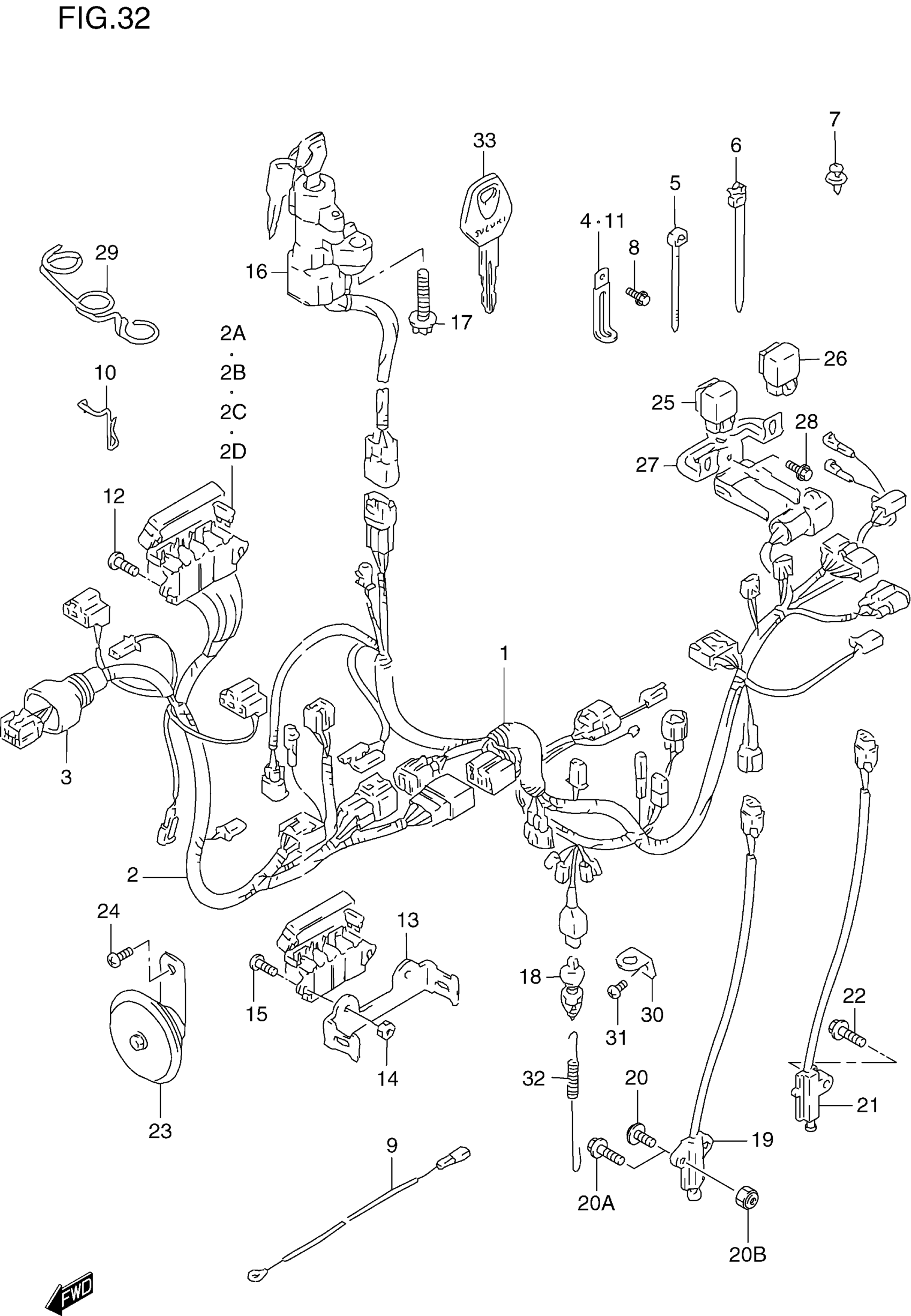

Suzuki GSX-R600 (2000) WIRING HARNESS (MODEL V/W/X) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL V

36610-34E00

Unavailable

1

HARNESS, WIRING NO.1 | MODEL W/X

36610-34E10

Unavailable

2

HARNESS, WIRING NO.2 | MODEL V

36620-33E10

Unavailable

2

HARNESS, WIRING NO.2 | MODEL W/X; Includes Item(s) 2A - 3

36620-34E10

Unavailable

2A

FUSE (10A) | MODEL V

09481-10101

$0.68

2B

FUSE (15A) | MODEL V

09481-15101

$2.77

2C

FUSE (10A) | MODEL W

09481-10501

$2.07

2D

FUSE (15A) | MODEL W

09481-15501

$2.07

3

COVER, SPEEDOMETER

36618-33E00

$9.90

4

CLAMP (L:60)

09404-06429

$1.82

4

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

5

CLAMP (L:125)

09407-14403

$2.24

5

CLAMP (L:165)

09407-18402

$2.21

5

CLAMP (L:235)

09407-25401

$4.21

6

CLAMP This part replaces 09407-17401.

09407-17402

$4.28

7

CLIP, WIRING HARNESS

09409-07305-5PK

$2.30

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

9

WIRE, OIL PRESSURE SW

36851-17E10

Unavailable

10

STOPPER, FUSE BOX | MODEL V

36745-33E00

Unavailable

11

CLAMP(L:80) | MODEL V This part replaces 09404-06433.

09404-06036

$1.76

12

SCREW | MODEL V This part replaces 02142-06203.

02142-0620A

$1.38

13

BRACKET, FUSE BOX | MODEL W

36744-33E00

Unavailable

14

NUT | MODEL W This part replaces 94619-27A00.

09159-05048

$6.61

15

.SCREW | MODEL W This part replaces 02142-05123.

02142-0512A

$1.37

16

LOCK ASSY, STEERING | MODEL V

37100-33E01

Unavailable

16

LOCK ASSY,STEER | MODEL W/X This part replaces 37100-33E20.

37100-33E21

$224.17

17

SCREW, STEERING LOCK

09139-08016

$3.04

18

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

19

SWITCH ASSY,SID | MODEL V/W This part replaces 37840-26X50.

37840-26X52

$98.18

20

BOLT (6X20) | MODEL V This part replaces 09103-06130.

09103-06286

$2.19

20A

BOLT | MODEL W This part replaces 01550-06203.

01550-0620A

$1.97

20B

.NUT | MDOEL W This part replaces 08319-21063.

08319-2106B

$2.31

21

SWITCH ASSY, SIDE STAND

37840-33E00

Unavailable

22

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

23

HORN ASSY

38500-20E10

Unavailable

24

SCREW

09125-08003

$1.95

25

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

26

RELAY ASSY, SIDE STAND | MODEL V

38740-24X50

$41.38

27

BRACKET, SIDE STAND

38930-33E00

Unavailable

28

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

29

GUIDE, WIRING HARNESS

36619-33E00

Unavailable

30

BRACKET, STOP LAMP SW

43251-21E00

Unavailable

31

SCREW This part replaces 02142-06083.

02142-0608A

$1.30

32

SPRING, STOP LAMP SW

09443-06005

$3.67

33

KEY, BLANK | OPT

37146-33E00

$19.42
