2000 Suzuki GSX-R600 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

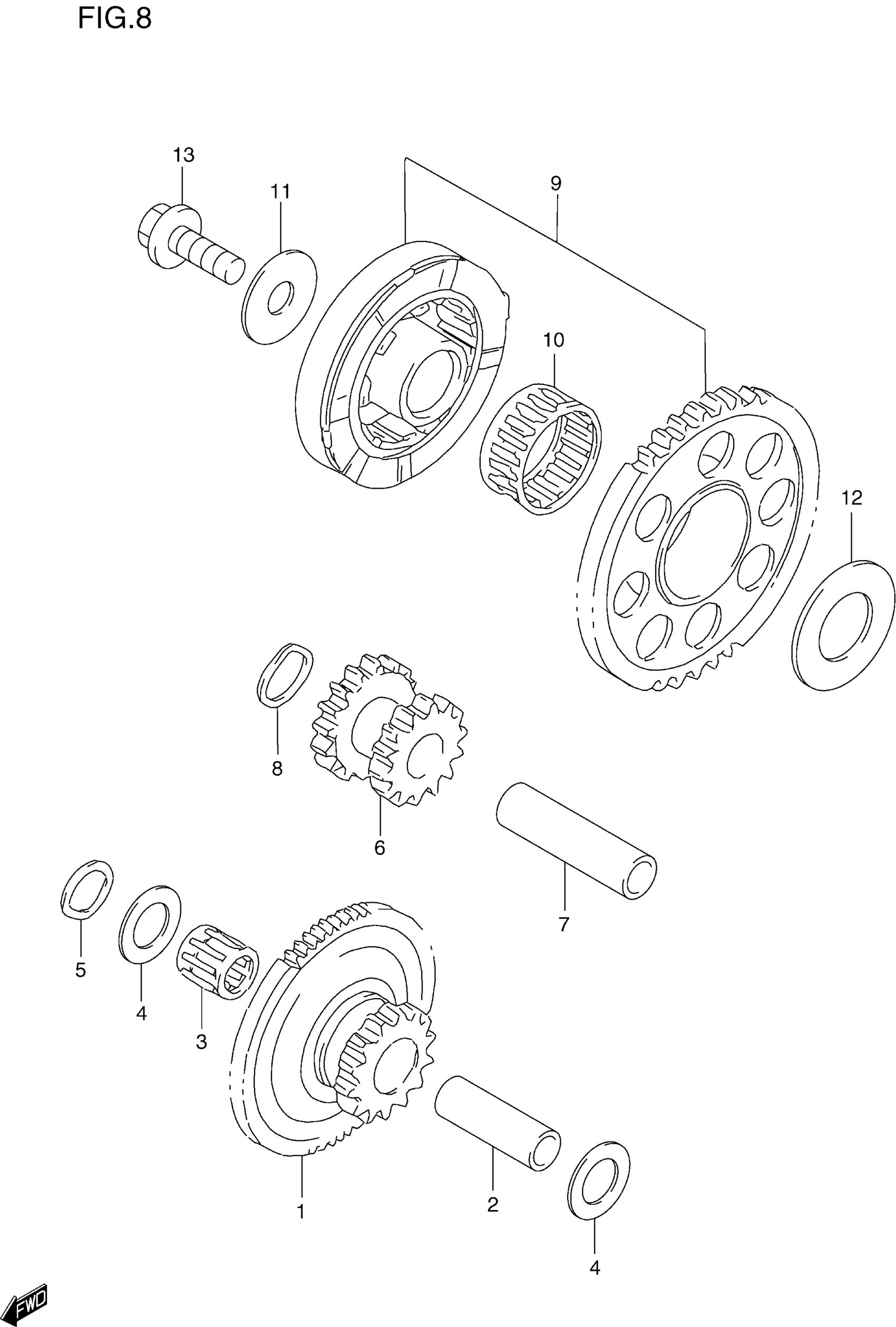

2000 Suzuki GSX-R600 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE NO.1 (NT:14/70)

12611-33E02

1
Out of stock

2

PIN

12151-09204

1
Out of stock

3

BEARING

09263-12023

1
Out of stock

4

WASHER

08211-12241

2

$2.23

In stock

5

WASHER

09164-12021

1
Out of stock

6

GEAR, STARTER IDLE NO.2 (NT:16/14)

12612-33E02

1
Out of stock

7

PIN

12151-05200

1
Out of stock

8

WASHER

09164-14008

1
Out of stock

9

CLUTCH SET, STARTER | MODEL V This part replaces 12600-33860.

12600-24850

1
Out of stock

9

CLUTCH SET, STARTER | MODEL W/X/Y This part replaces 12600-33871.

12600-24850

1
Out of stock

10

BEARING | MODEL V

09263-28029-0B0

1
Out of stock

10

BEARING | MODEL W/X/Y

09263-28031

1
Out of stock

11

WASHER

08211-10305

1
Out of stock

12

WASHER

08211-20403

1
Out of stock

13

BOLT (10X23)

09103-10189

1
Out of stock
