2000 Suzuki GSX-R600 Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

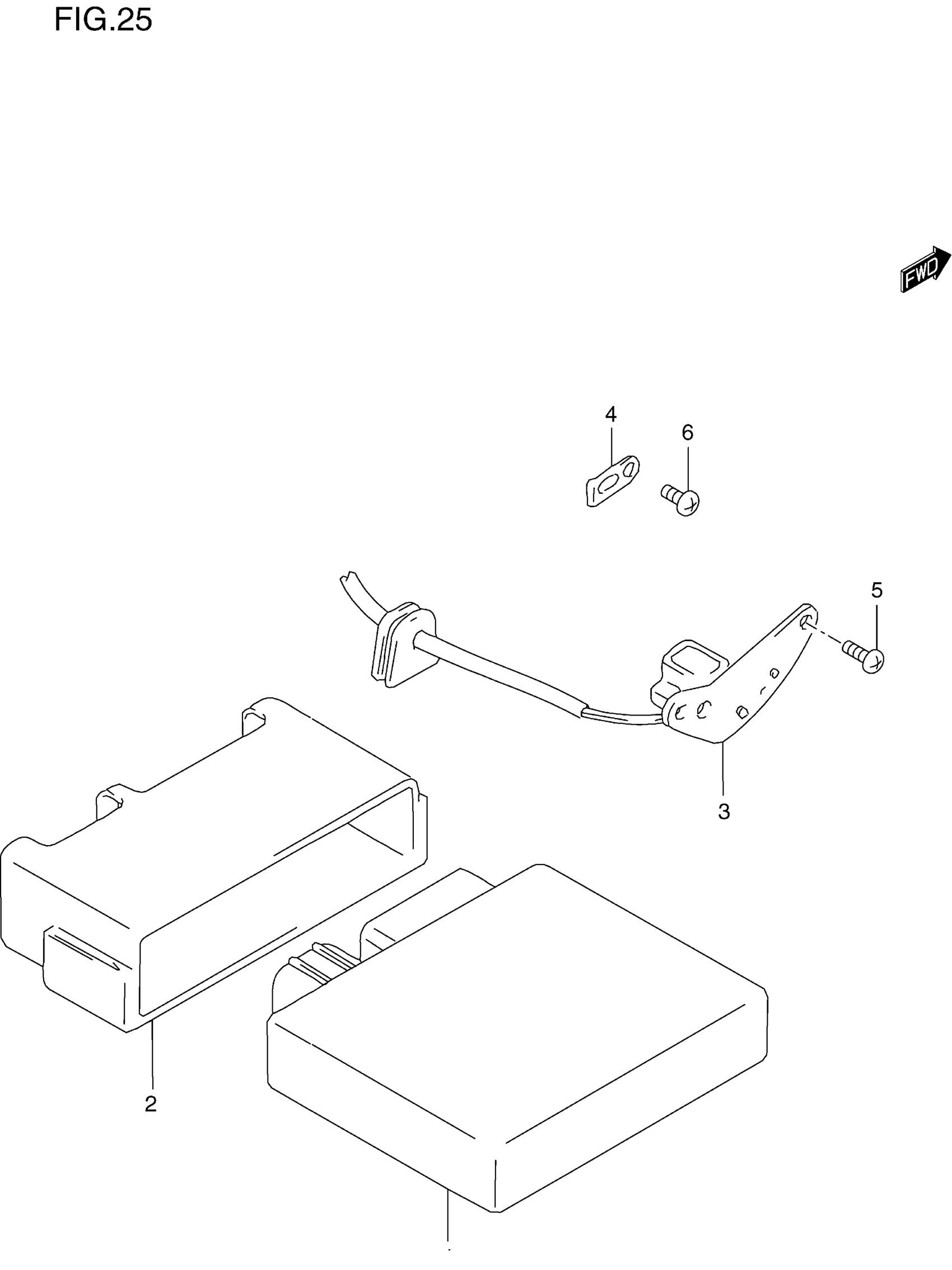

2000 Suzuki GSX-R600 Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITER ASSY | MODEL V

32900-34E00

1
Out of stock

1

IGNITER ASSY | MODEL W

32900-34E20

1
Out of stock

1

IGNITER ASSY | MODEL X/Y

32900-34E30

1
Out of stock

2

CUSHION, IGNITER

32980-19D10

1
Out of stock

3

STATOR, SIGNAL GENERATOR

33110-33E00

1
Out of stock

4

CLAMP, SIG GEN

33115-33E00

1
Out of stock

5

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

1
Out of stock

6

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

2
Out of stock
