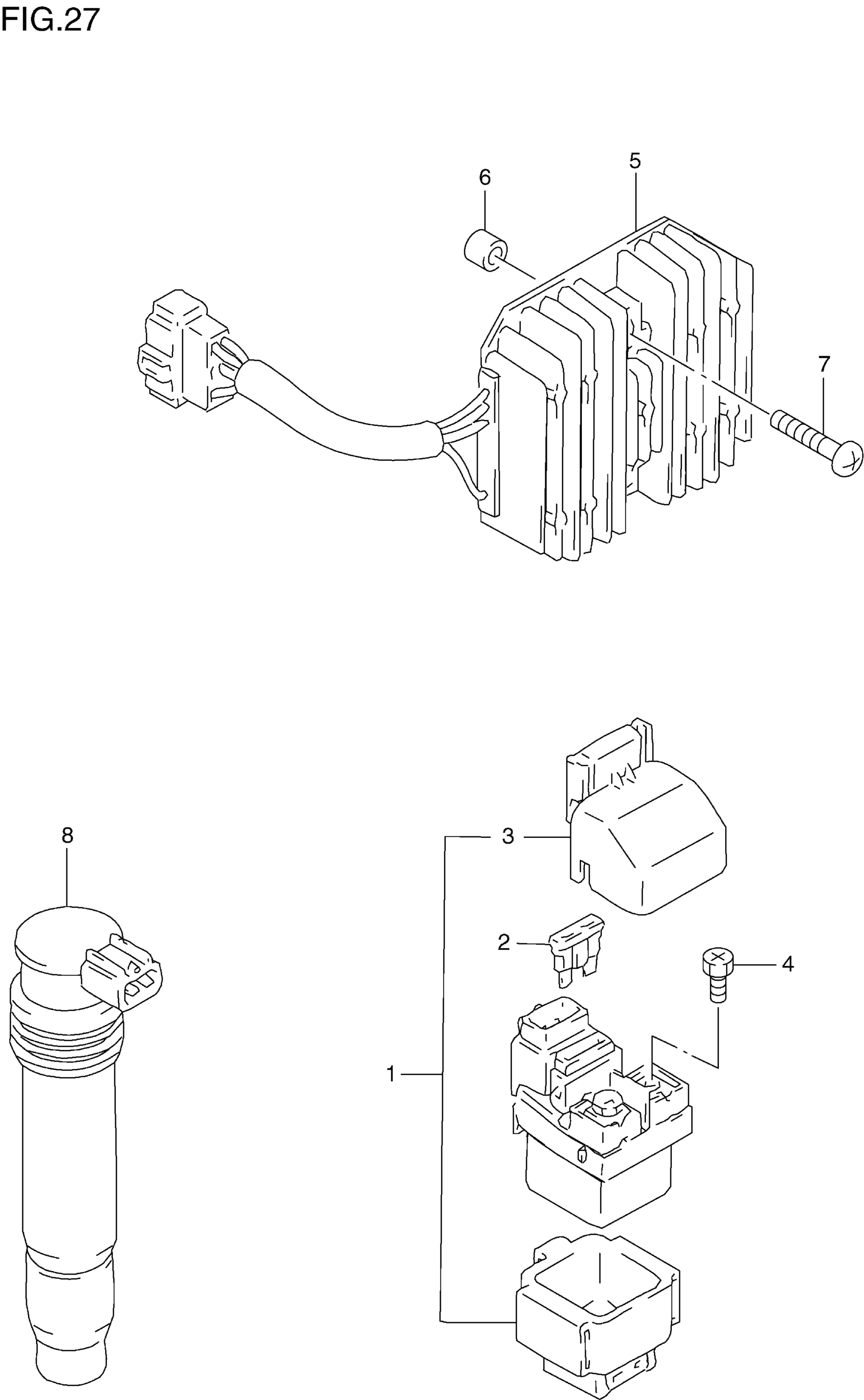

Suzuki GSX-R600 (2000) ELECTRICAL Diagram

#

Description

Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-26E00

$89.07

2

FUSE (30A)

09481-30101

$2.28

3

COVER, STARTER

31861-26E00

$3.92

4

BOLT (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-33E00.

32800-44D11

$354.87

6

SPACER (6.5X10X7)

09180-06283

$1.89

7

SCREW This part replaces 02142-06353.

02142-0635A

$2.97

8

COIL ASSY, IGNITION

33410-34E00

Unavailable
