2000 Suzuki GSX-R600 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

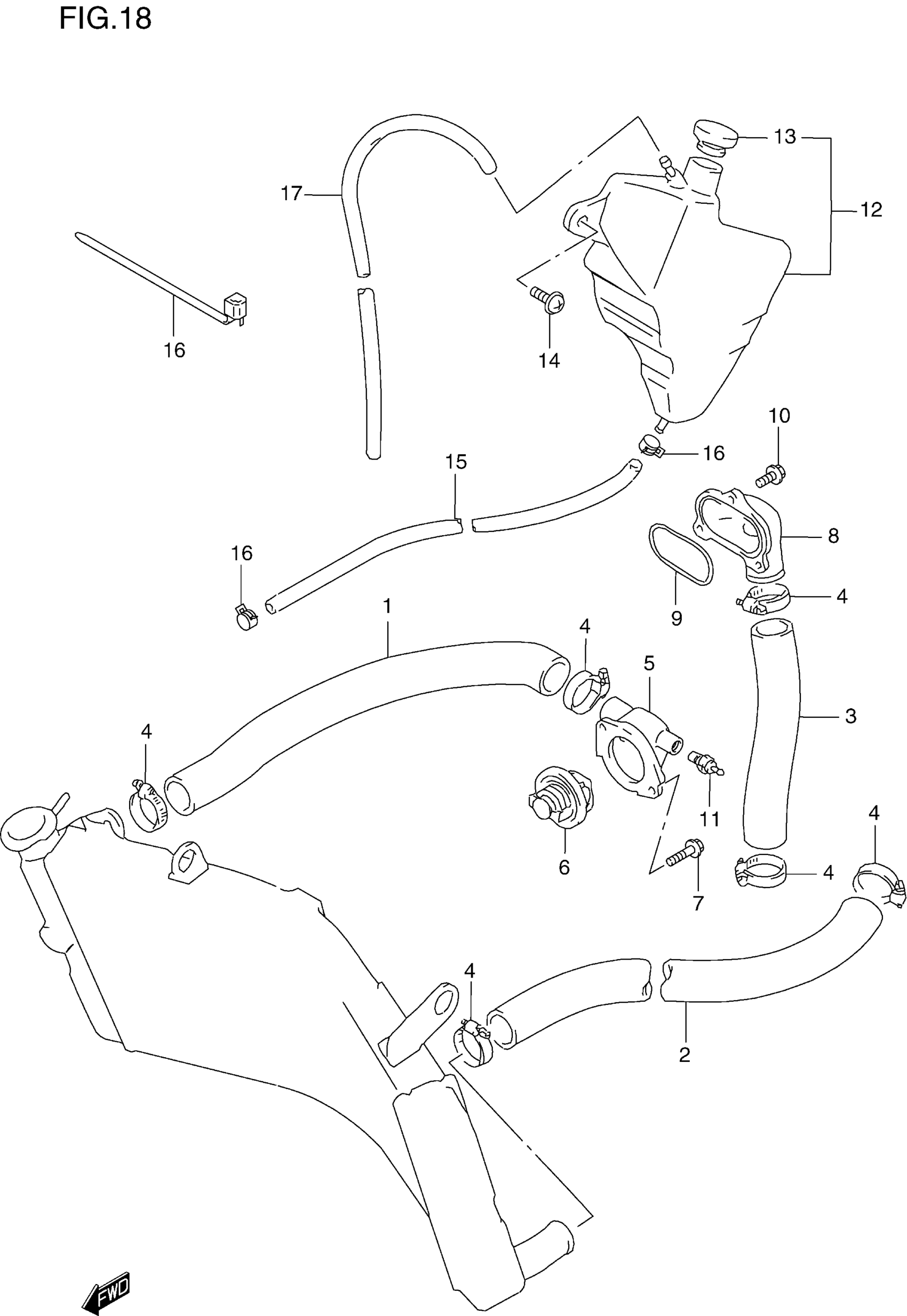

2000 Suzuki GSX-R600 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-33E00

1
Out of stock

2

HOSE, RADIATOR OUTLET

17852-33E00

1
Out of stock

3

HOSE, CYLINDER INLET

17853-33E00

1
Out of stock

4

CLAMP

09402-38511

6

$11.46

In stock

5

CONNECTOR, THERMOSTAT INLET

17662-33E00

1
Out of stock

7

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

2
Out of stock

8

1

$22.49

In stock

9

O RING

17863-33E00

1

$4.02

In stock

10

BOLT This part replaces 01550-06203.

01550-0620A

3
Out of stock

11

GAUGE ASSY, WATER TEMP

34850-33E00

1
Out of stock

12

TANK ASSY, RESERVOIR | Includes Item(s) 13

17910-33E00

1
Out of stock

13

CAP

17932-12C00

1

$4.46

In stock

14

SCREW (6X20)

09136-06022

2

$2.54

In stock

15

1

$33.47

In stock

16

CLIP

09401-08411

2
Out of stock

17

HOSE, OVER FLOW

17982-38810

1

$19.60

In stock

18

CLAMP | MODEL V This part replaces 09407-18403.

09407-18402

1
Out of stock

18

CLAMP | MODEL W/X/Y

09407-18402

1
Out of stock
