1990 Suzuki GSX-R1100 Headlamp Diagram

← All diagrams

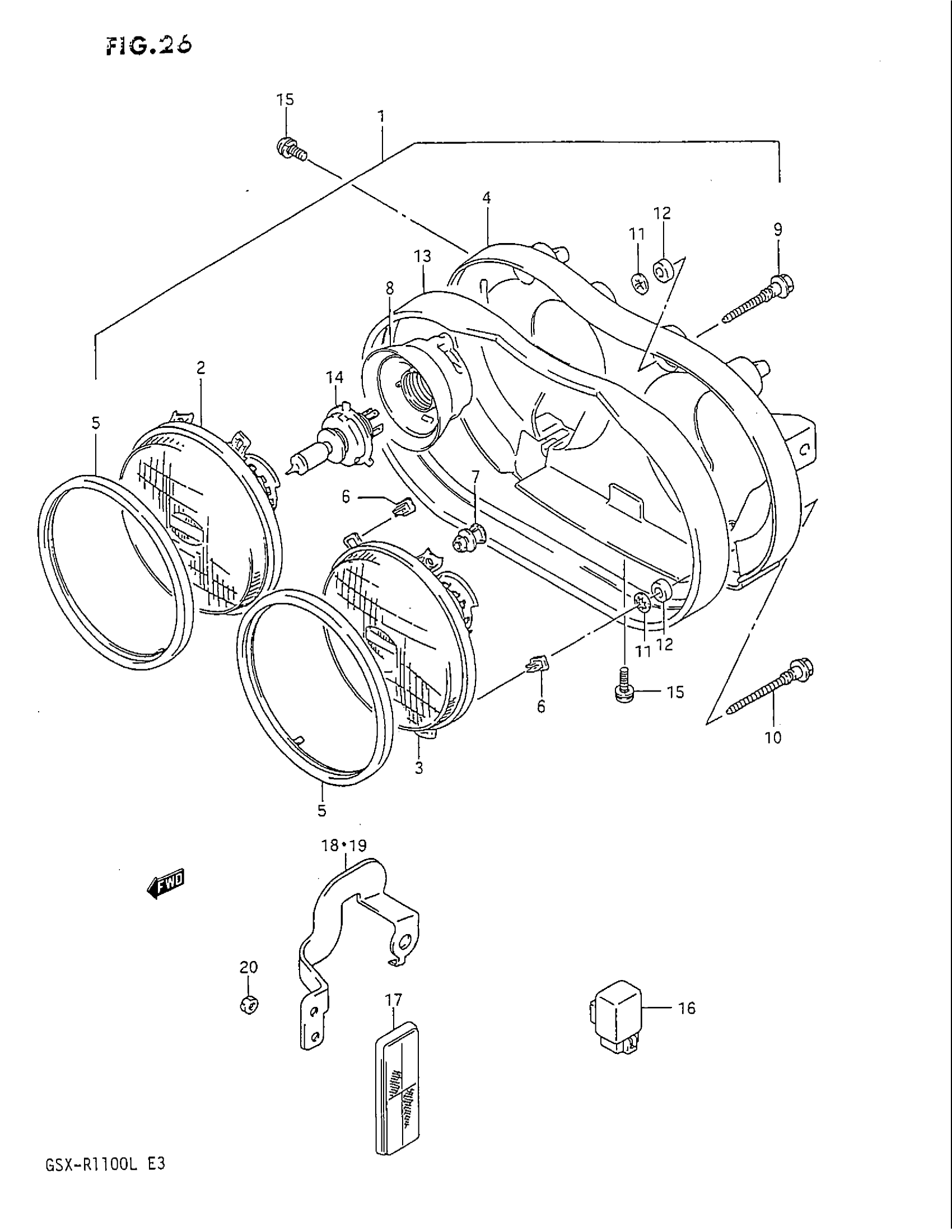

Find the part on the Headlamp diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R1100 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 12 This part replaces 35100-40C30-999.

35100-40C31-999

1
Out of stock

2

UNIT, HEADLAMP

35121-17C30

1
Out of stock

3

UNIT, HEADLAMP LH

35321-17C30

1
Out of stock

4

HOUSING

35240-05C02

1
Out of stock

5

RING, RETAINING

35127-04A00

2
Out of stock

6

4

$4.20

In stock

7

BEARING, SPHERICAL

35162-04A00

2
Out of stock

8

COVER, SOCKET,RH

35173-20A01

1
Out of stock

8

COVER, SOCKET,LH

35173-06B50

1
Out of stock

9

SCREW, ADJUSTING This part replaces 35151-05C00.

35153-05C00

2
Out of stock

10

SCREW, ADJUSTING

35153-05C00

2
Out of stock

11

NUT This part replaces 35157-32B00.

09148-05012

4
Out of stock

12

BUSHING

35167-05C00

4
Out of stock

13

GASKET, HEADLAMP HOUSING

35242-40C00

1
Out of stock

14

BULB (12V,60/55W)

09471-12060

2
Out of stock

15

SCREW This part replaces 02112-36165.

02112-3616A

3
Out of stock

16

RELAY ASSY, SIDE STAND | MODEL K This part replaces 38640-17C00.

38740-24X50

2
Out of stock

17

REFLEX-REFLECTOR ASSY This part replaces 35950-40C00.

35950-43431

2
Out of stock

18

BRACKET, RH

35956-40C01

1
Out of stock

19

BRACKET, LH

35957-40C01

1
Out of stock

20

NUT This part replaces 08361-15055.

08361-1505B

2
Out of stock
