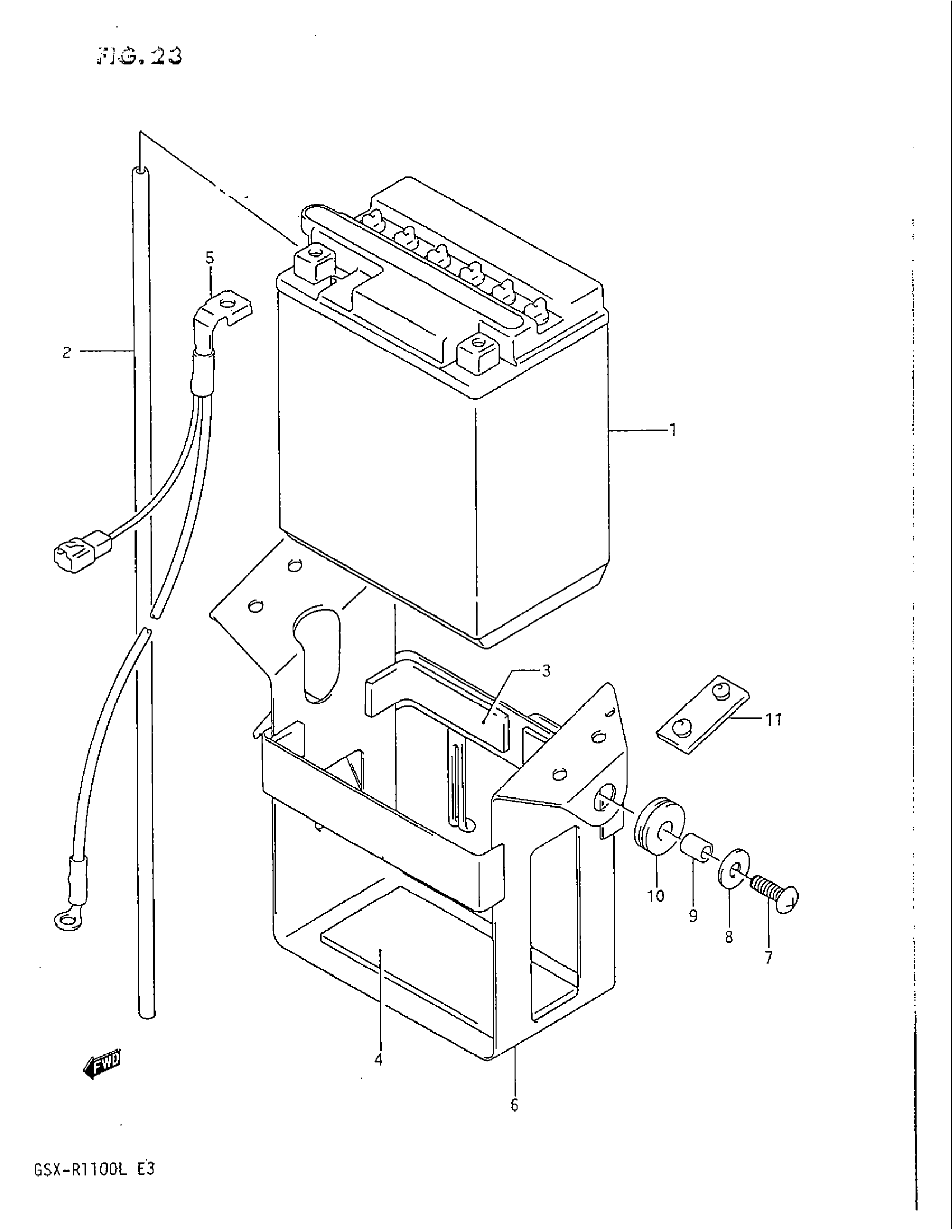

Find the part on the Battery diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R1100 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY (12V,14AH)

33610-49210

1
Out of stock

2

HOSE,BATTERY EX | L:700->650 This part replaces 33680-14A00.

33680-16A11

1
Out of stock

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

4
Out of stock

4

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

1
Out of stock

5

WIRE,BATT MINUS | MODEL K This part replaces 33860-40C00.

33860-06B12

1
Out of stock

5

WIRE,BATT MINUS | MODEL L This part replaces 33860-40C01.

33860-06B12

1
Out of stock

6

HOLDER, BATTERY This part replaces 41540-40C00.

41540-40C01

1
Out of stock

7

SCREW, BODY COVER UPPER This part replaces 09125-06038.

09125-06055

2
Out of stock

8

WASHER This part replaces 09160-060A6.

09160-06084

3
Out of stock

9

SPACER This part replaces 09180-06152.

09180-06262

2
Out of stock

10

CUSHION This part replaces 09320-09021.

09320-09502

2
Out of stock

11

CUSHION

09329-05005

2
Out of stock
