1990 Suzuki GSX-R1100 Handle Switch Diagram

← All diagrams

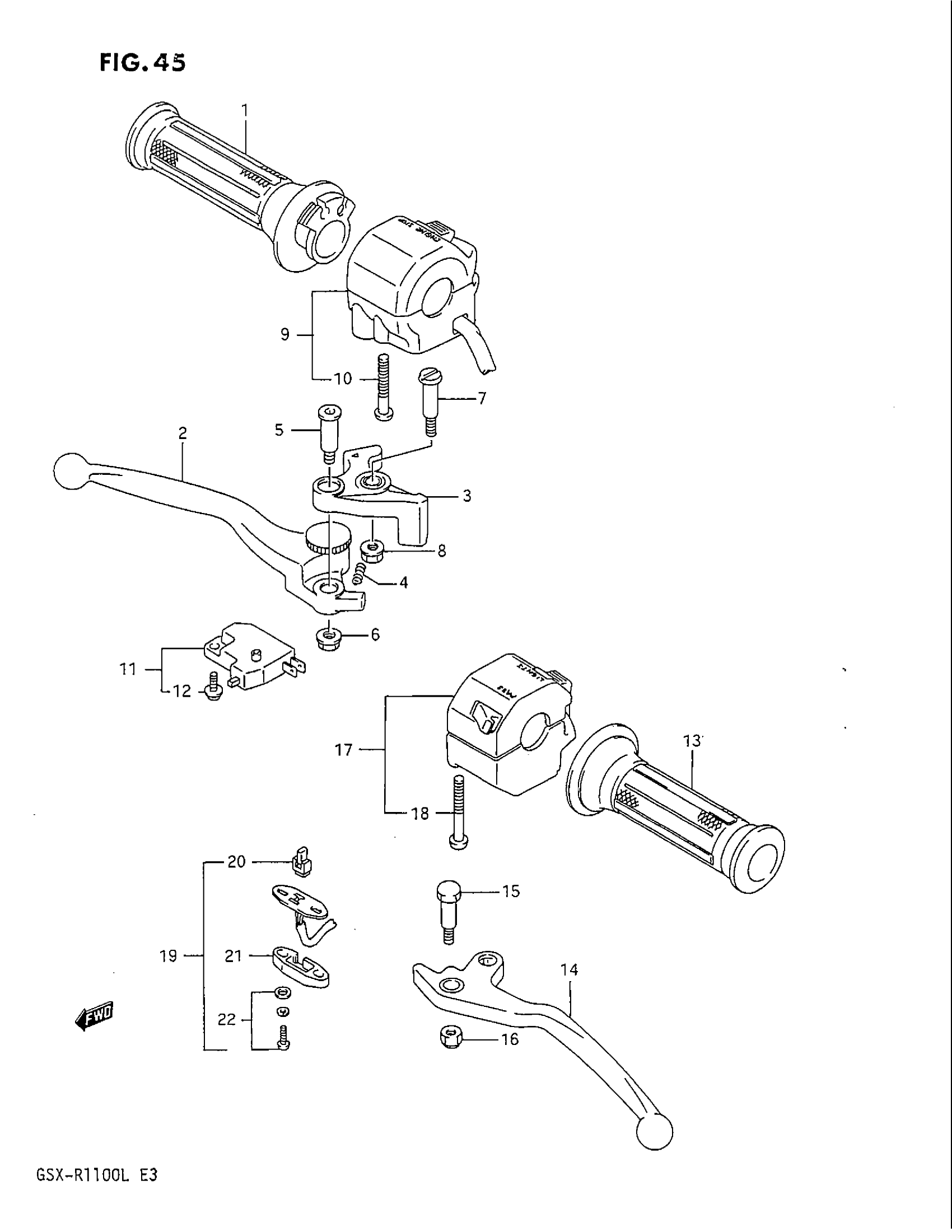

Find the part on the Handle Switch diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R1100 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-49501

1
Out of stock

2

LEVER, ADJUST

57420-32C00

1
Out of stock

3

KNOCKER | Includes Item(s) 4 This part replaces 57430-40C00.

57430-40C10

1
Out of stock

4

SPRING

57438-32C00

1
Out of stock

5

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

1
Out of stock

6

NUT This part replaces 08319-31065.

08319-3106A

1
Out of stock

7

BOLT, LEVER

57431-17C00

1
Out of stock

8

NUT This part replaces 08316-16064.

08316-1006B

1
Out of stock

9

SWITCH ASSY, RH | Includes Item(s) 10 This part replaces 37200-17C30.

37200-45C22

1
Out of stock

10

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

12

SCREW

57465-17C00

1
Out of stock

13

GRIP, LH

57211-49500

1
Out of stock

14

LEVER, CLUTCH This part replaces 57620-40C00.

57621-38A02

1
Out of stock

15

BOLT

57431-05A00

1
Out of stock

16

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

17

SWITCH ASSY,HAN | Includes Item(s) 18 This part replaces 37400-17C10.

37400-06B20

1
Out of stock

18

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

19

SWITCH ASSY, CLUTCH | Includes Item(s) 20 - 22 This part replaces 57560-08A00.

57560-18D10

1
Out of stock

20

HOLDER

57465-18601

1
Out of stock

21

COVER

57481-33010

1
Out of stock

22

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock
