1990 Suzuki GSX-R1100 Alternator Diagram

← All diagrams

Find the part on the Alternator diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

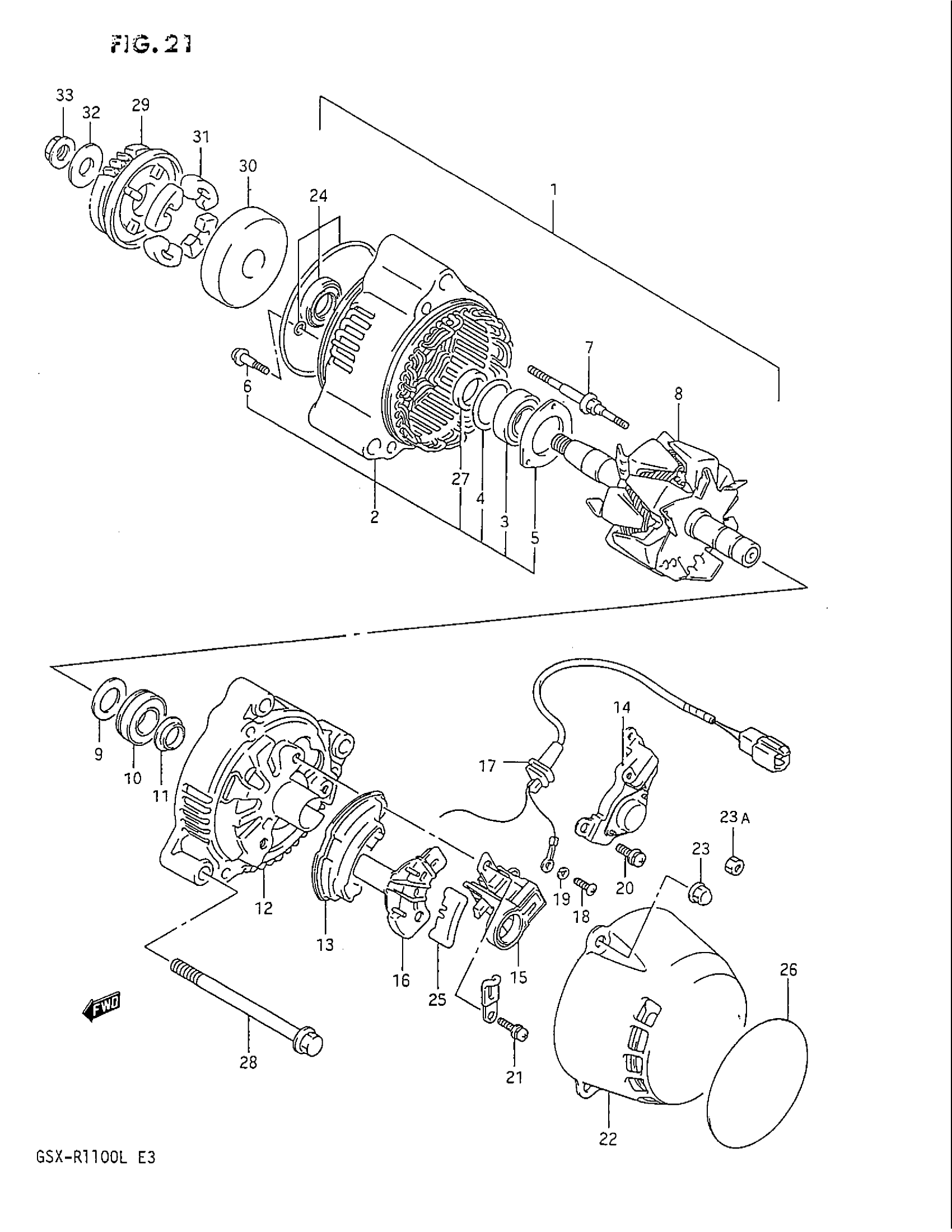

1990 Suzuki GSX-R1100 Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ALTERNATOR ASSY | Includes Item(s) 2 - 25 This part replaces 31400-48B03.

31400-17C04

1
Out of stock

2

FRAME, DRIVE END

31580-48B00

1
Out of stock

3

BEARING

31612-06B00

1
Out of stock

4

COVER, BEARING

31613-48B00

1
Out of stock

5

RETAINER, BEARING

31585-48B00

1
Out of stock

6

SCREW, BEARING RETAINER

31586-48B00

3
Out of stock

7

STUD BOLT | YELLOW

31587-85250

3
Out of stock

7

STUD BOLT | BLACK This part replaces 31587-19C00.

31587-85250

3
Out of stock

8

ROTOR ASSY This part replaces 31710-48B03.

31710-48B04

1
Out of stock

9

COVER (1) This part replaces 31613-27A00.

31613-82610

1
Out of stock

10

BEARING

31612-48B00

1
Out of stock

11

COVER (2)

31613-27A10

1
Out of stock

12

FRAME, END

31611-48B00

1
Out of stock

13

HOLDER, RECTIFIER

31621-27A00

1
Out of stock

14

REGULATOR

32500-27A00

1
Out of stock

15

HOLDER, BRUSH

31656-48B00

1
Out of stock

16

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

1
Out of stock

17

LEAD WIRE

31480-48B00

1
Out of stock

18

2

$1.15

In stock

18

2

$1.67

In stock

19

LOCK WASHER | MODEL K This part replaces 08321-21046.

08321-0104A

2
Out of stock

20

SCREW (5X17)

31688-27A00

2
Out of stock

21

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

1
Out of stock

22

COVER

31614-48B00

1
Out of stock

23

NUT This part replaces 31692-48B00.

08313-2005A

3
Out of stock

23A

NUT

08316-16055

3
Out of stock

24

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

1
Out of stock

25

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

1
Out of stock

26

PLATE, ALTERNATOR ABSORBER This part replaces 31615-17C00.

31615-27E00

1
Out of stock

27

SPACER

31776-06B00

1
Out of stock

28

BOLT | MODEL K This part replaces 01517-08905.

01550-0890B

3
Out of stock

28

3

$5.63

In stock

29

NO DESCRIPTION AVAILABLE This part replaces 22730-06B03.

22730-06B04

1
Out of stock

30

HOUSING DAMPER | MODEL K This part replaces 22733-27A03.

22733-27A05

1
Out of stock

30

HOUSING DAMPER | MODEL L This part replaces 22733-27A04.

22733-27A05

1
Out of stock

31

DAMPER

21231-06B00

4
Out of stock

32

WASHER

08211-10283

1
Out of stock

33

NUT This part replaces 08316-26106.

08316-2010B

1
Out of stock
