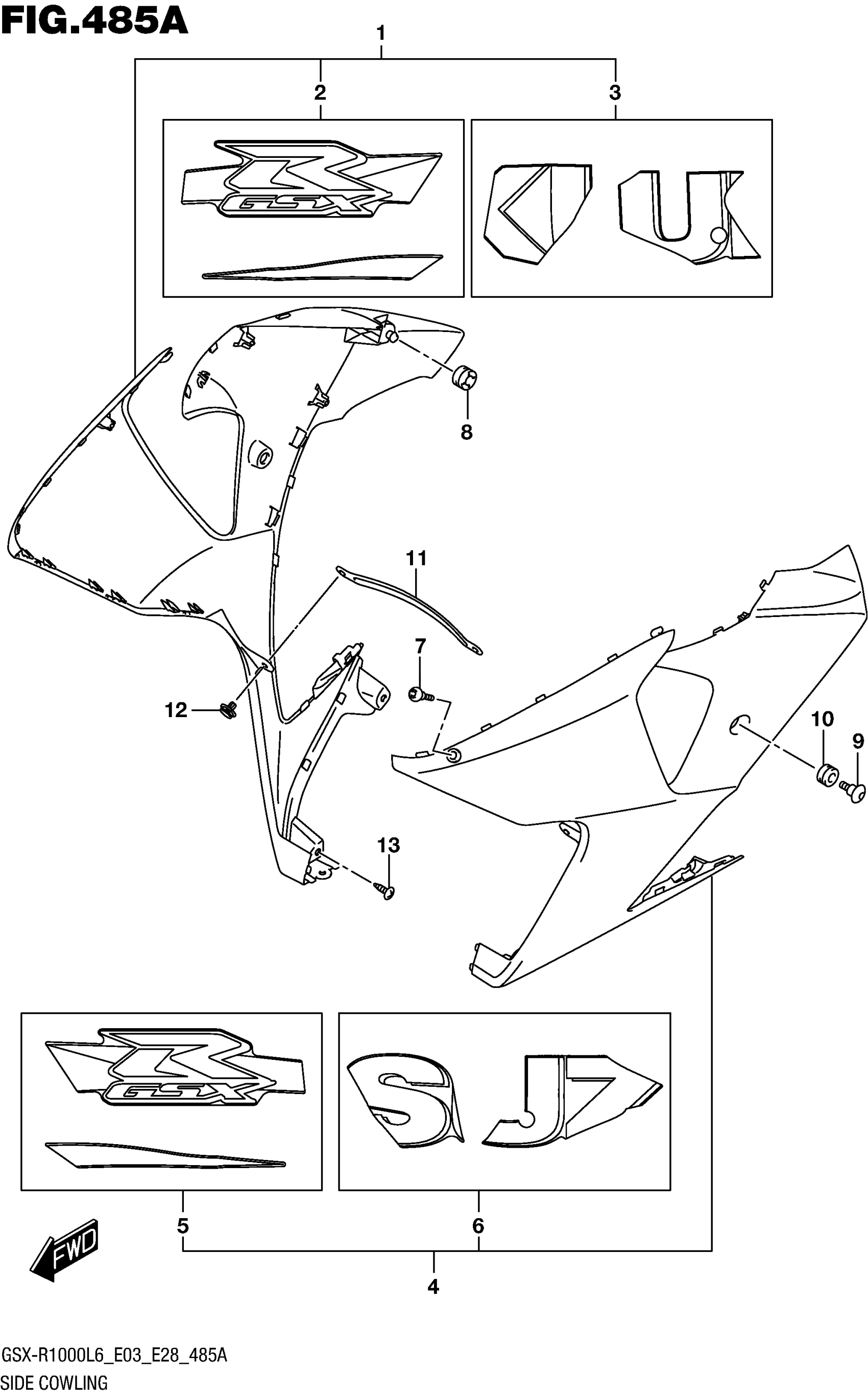

Suzuki GSX-R1000L6 (2016) SIDE COWLING (YSF) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLUE)

94490-47H90-YSF

$514.97

2

.TAPE, SIDE COWLING FRONT RH

68685-47H30-A4R

$91.45

3

.TAPE, SIDE COWLING REAR RH

68685-47H40-A41

$127.35

4

COWLING, SIDE LH (BLUE)

94440-47H90-YSF

$514.97

5

.TAPE, SIDE COWLING FRONT LH

68695-47H30-A4R

$91.45

6

.TAPE, SIDE COWLING REAR LH

68695-47H40-A41

$127.35

7

SCREW (5X16)

09139-05077

$3.06

8

CUSHION

09320-08028

$2.82

9

BOLT (6X20)

09139-06190

$3.89

10

CUSHION

09320-09016

$2.01

11

BRACKET

94498-47H00

$16.70

12

CLIP

94479-35F00

$5.38

13

SCREW

03541-0516A

$1.41
