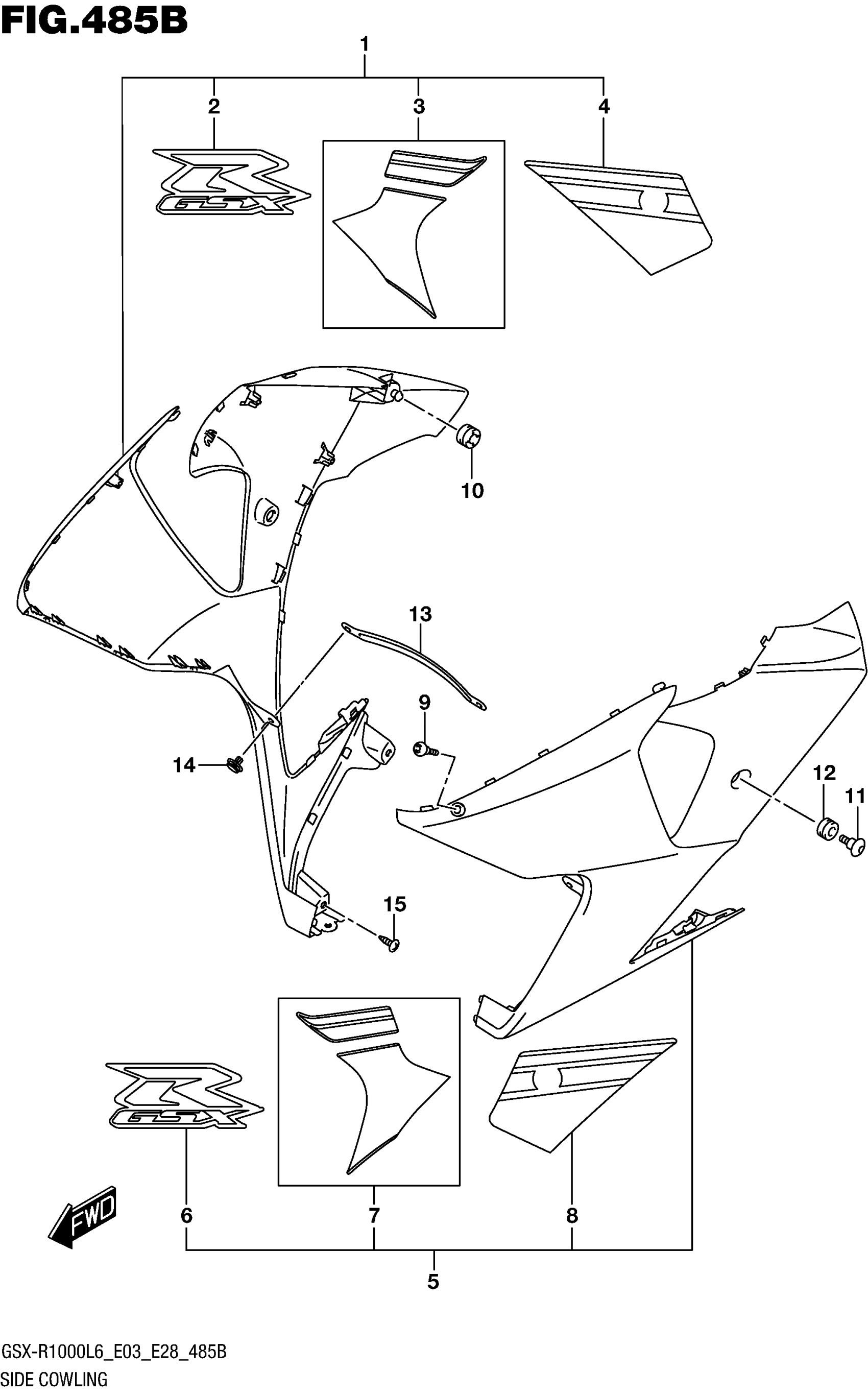

Suzuki GSX-R1000L6 (2016) SIDE COWLING (AJP,JSP) Diagram

#

Description
Price

1-1

COWLING, SIDE RH (WHITE) | FOR AJP

94490-47HB0-YWW

$455.02

1-2

COWLING, SIDE RH (BLACK) | FOR JSP

94490-47HB0-YVB

$446.60

2-1

.EMBLEM, "GSXR" RH | FOR YWW

68681-47H30-AG9

Unavailable

2-2

.EMBLEM, "GSXR" RH | FOR YVB

68681-47H30-A5Q

Unavailable

3-1

.TAPE SET, SIDE COWLING RH | FOR YWW

68680-47H40-BAG

Unavailable

3-2

.TAPE SET, SIDE COWLING RH | FOR YVB

68680-47H40-BAF

$115.38

4-1

.TAPE, SIDE COWLIMG RH | FOR YWW

68685-47H50-BAG

Unavailable

4-2

.TAPE, SIDE COWLIMG RH | FOR YVB

68685-47H50-BAF

Unavailable

5-1

COWLING, SIDE LH (WHITE) | FOR AJP

94440-47HB0-YWW

$463.60

5-2

COWLING, SIDE LH (BLACK) | FOR JSP

94440-47HB0-YVB

$446.60

6-1

.EMBLEM, "GSXR" LH | FOR YWW

68691-47H30-AG9

Unavailable

6-2

.EMBLEM, "GSXR" LH | FOR YVB

68691-47H30-A5Q

$35.57

7-1

.TAPE SET, SIDE COWLING LH | FOR YWW

68690-47H40-BAG

Unavailable

7-2

.TAPE SET, SIDE COWLING LH | FOR YVB

68690-47H40-BAF

Unavailable

8-1

.TAPE, SIDE COWLIMG LH | FOR YWW

68695-47H50-BAG

Unavailable

8-2

.TAPE, SIDE COWLIMG LH | FOR YVB

68695-47H50-BAF

Unavailable

9

SCREW (5X16)

09139-05077

$3.06

10

CUSHION

09320-08028

$2.82

11

BOLT (6X20)

09139-06190

$3.89

12

CUSHION

09320-09016

$2.01

13

BRACKET

94498-47H00

$16.70

14

CLIP

94479-35F00

$5.38

15

SCREW

03541-0516A

$1.41

16

COLOR :

SPECIAL NOTE

Unavailable

16

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

16

:

SPECIAL NOTE

Unavailable

16

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
