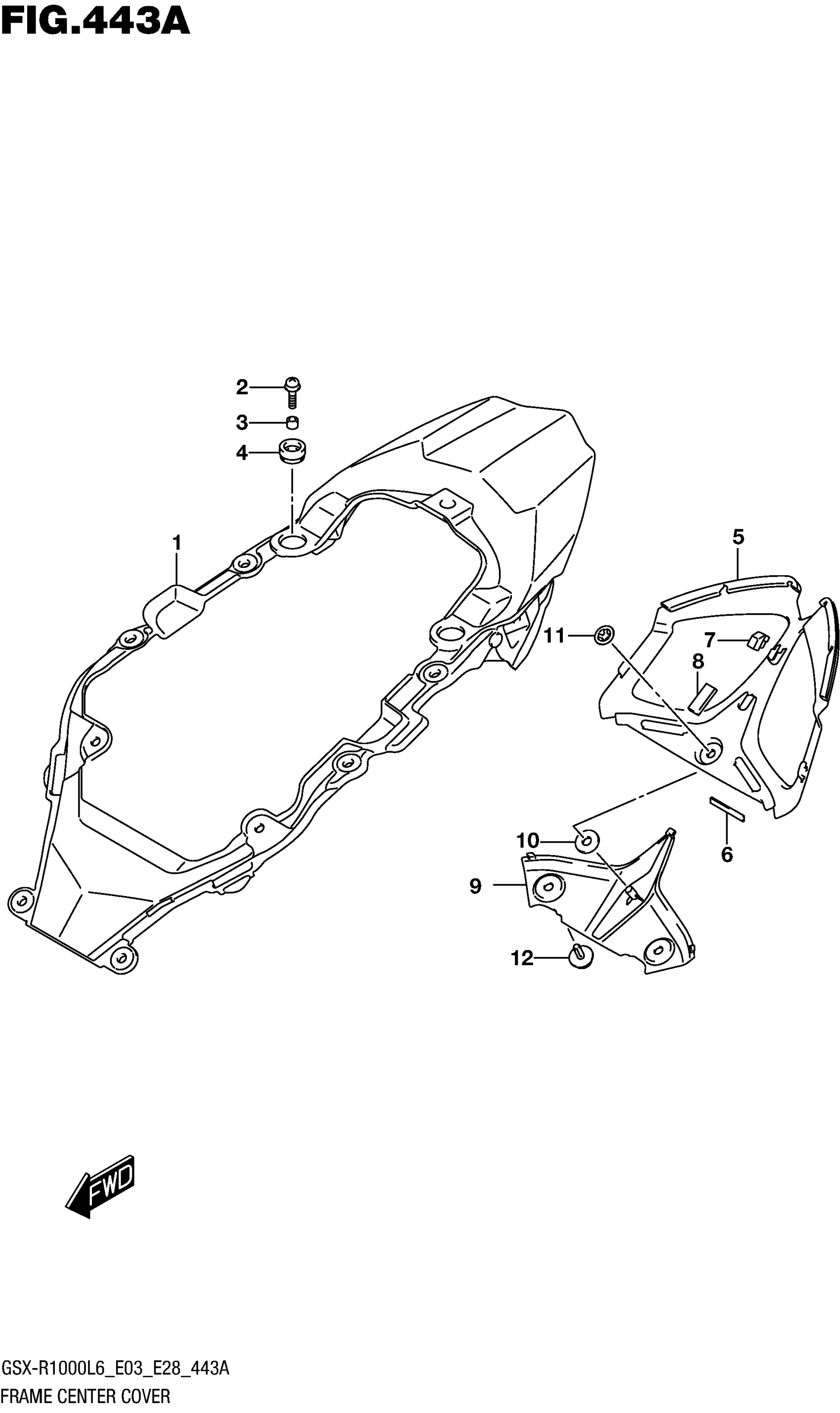

Suzuki GSX-R1000L6 (2016) FRAME CENTER COVER Diagram

#

Description
Price

1-1

COVER, FRAME CENTER (BLUE) | FOR YSF

47310-47H00-YSF

$337.75

1-2

COVER, FRAME CENTER (WHITE) | FOR AJP

47310-47H00-YWW

$335.18

1-3

COVER, FRAME CENTER (BLACK) | FOR JSP

47310-47H00-YVB

$381.80

2

SCREW (6X16)

09136-06056

$2.17

3

SPACER (6.5X10X7)

09180-06283

$1.97

4

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

5-1

COVER, REAR CENTER (BLACK) | FOR YSF

47911-47H00-YKV

$106.98

5-2

COVER, REAR CENTER (BLACK) | FOR AJP,JSP

47911-47H00-YVZ

$104.03

6

CUSHION

47912-47H00

$6.28

7

CUSHION

47913-37H00

$6.23

8

CUSHION

94413-08F00

$5.02

9-1

COVER, REAR LOWER (BLUE) | FOR YSF

47921-47H00-YSF

$96.63

9-2

COVER, REAR LOWER (RED) | FOR AJP

47921-47H00-YWW

$93.98

9-3

COVER, REAR LOWER (BLACK) | FOR JSP

47921-47H00-YVB

$93.77

10

CUSHION

09320-06501

$3.92

11

NUT This part replaces 09148-05006.

09148-05012

$1.82

12

CLIP

09409-06328

$3.00

13

COLOR :

SPECIAL NOTE

Unavailable

13

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

13

:

SPECIAL NOTE

Unavailable

13

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
