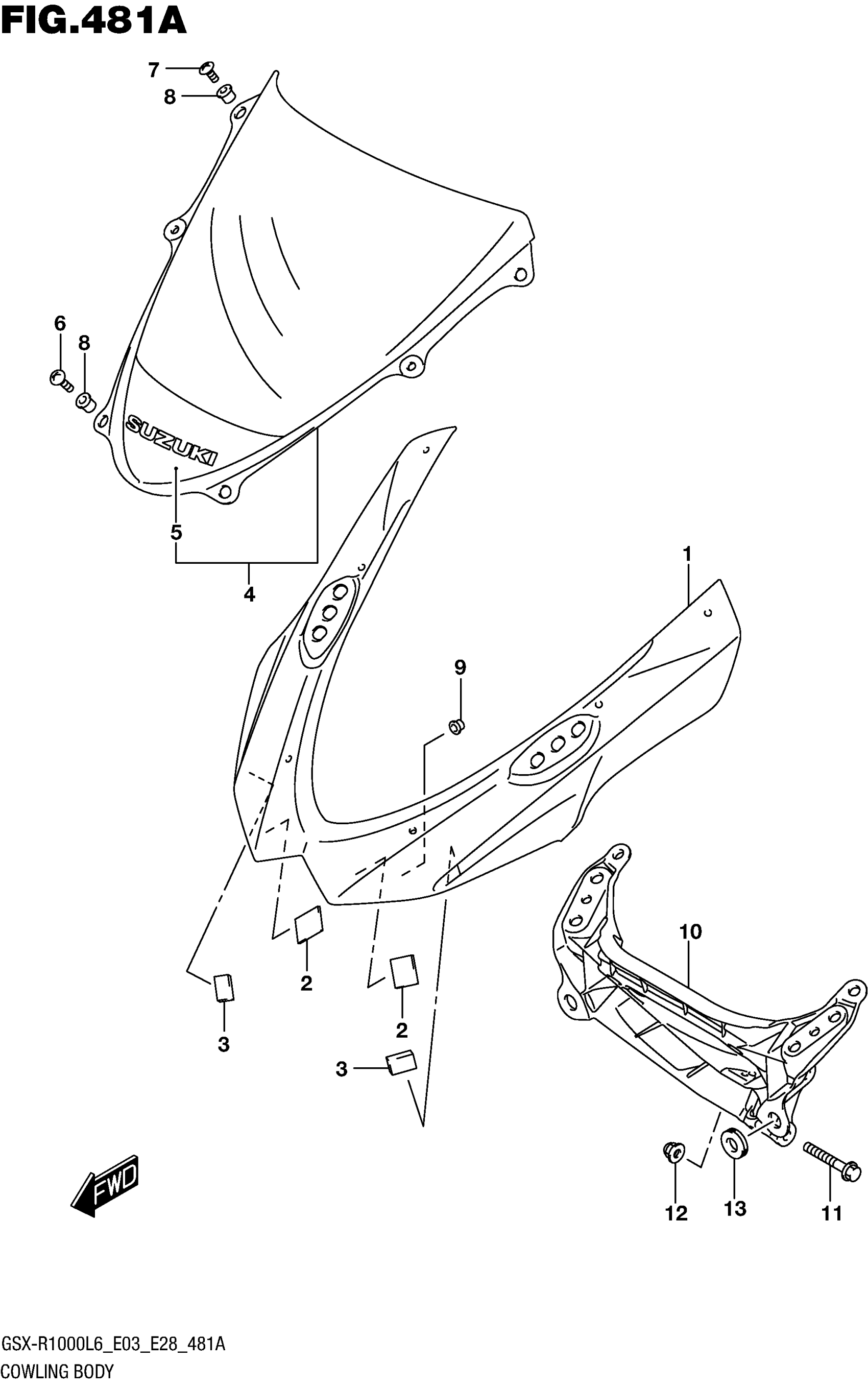

Suzuki GSX-R1000L6 (2016) COWLING BODY Diagram

#

Description
Price

1-1

BODY,COWLING | FOR YSF This part replaces 94411-47H00-YSF.

94411-47H01-YSF

$307.13

1-2

BODY,COWLING | FOR AJP This part replaces 94411-47H00-YKY.

94411-47H01-YKY

$318.83

1-3

BODY,COWLING | FOR JSP This part replaces 94411-47H00-YVZ.

94411-47H01-YVZ

$332.57

2

CUSHION, FRONT

44572-02F01

$10.59

3

CUSHION, SIDE

44572-37H00

$9.41

4

WINDSCREEN

64310-47H00

$128.22

5

.TAPE

68275-47H00

$47.15

6

SCREW (5X18)

09125-05133

$2.27

7

SCREW (5X15)

09125-05134

$2.27

8

NUT

09159-05019

$6.63

9

CUSHION This part replaces 09320-05018.

09320-05022

$2.45

10

BRACE, COWLING

94511-47H00

$417.23

11

BOLT

01550-0845A

$2.98

12

NUT

08313-2008A

$2.58

13

CUSHION

09320-08028

$2.82

14

COLOR :

SPECIAL NOTE

Unavailable

14

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

14

:

SPECIAL NOTE

Unavailable

14

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
