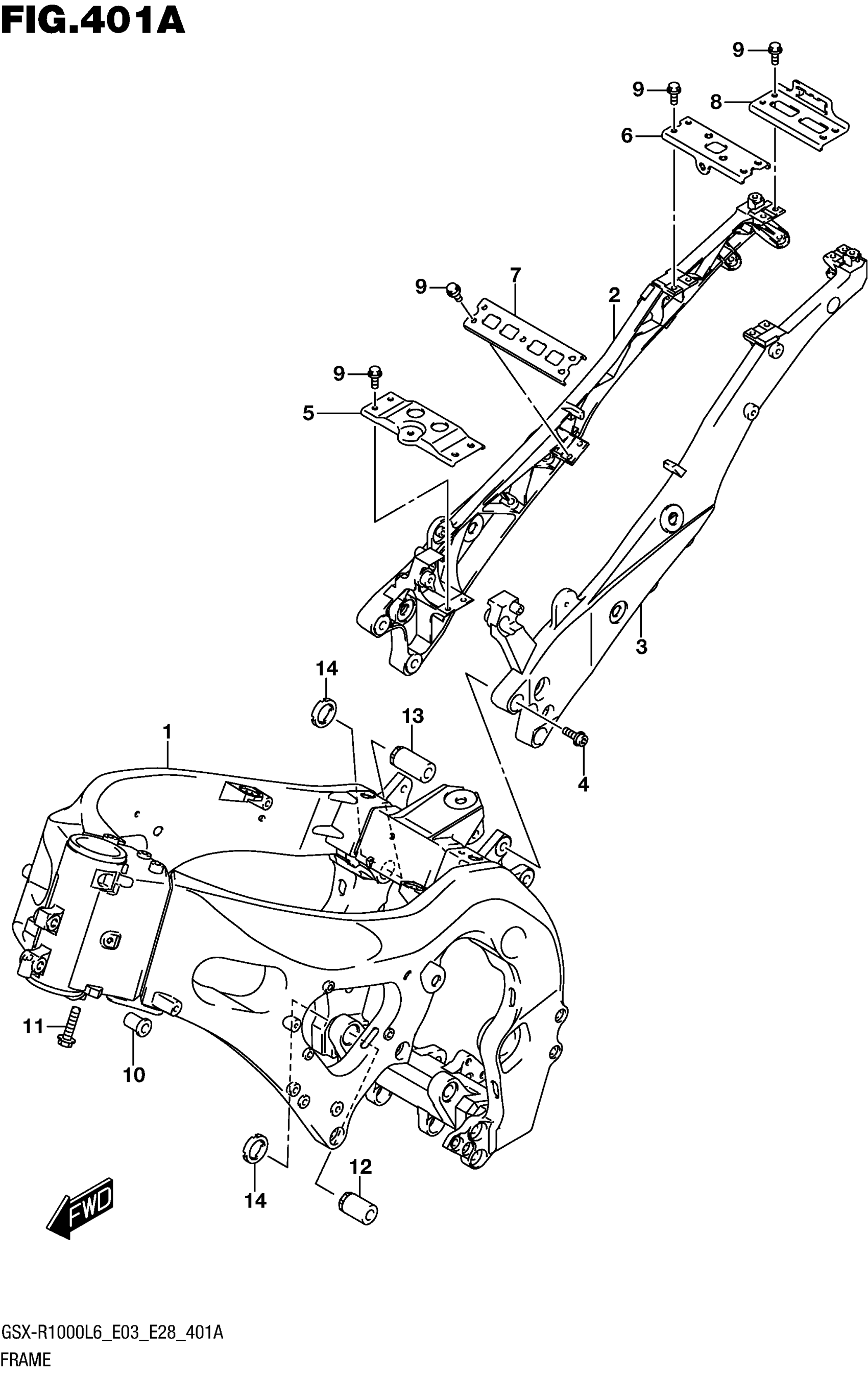

Suzuki GSX-R1000L6 (2016) FRAME (GSX-R1000L6 E03) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-47H21-YAP

Unavailable

2

RAIL, SEAT RH

41211-47H00

$581.07

3

RAIL, SEAT LH

41221-47H00

Unavailable

4

BOLT,SEAT RAIL

41233-18G20

$8.27

5

BRIDGE,SEAT RAIL FR

41770-01H00

$69.00

6

BRIDGE, UPPER

42730-47H00

$49.27

7

BRIDGE, LOWER

42741-37H00

$30.92

8

BRIDGE, REAR

42751-47H00

$30.92

9

BOLT (6X12)

09103-06285

$2.02

10

SPACER, MOUNT

41911-40F01

$22.19

11

BOLT (8X35)

09103-08512

$2.80

12

BOLT, ADJUST

41921-47H00

$59.37

13

BOLT, ADJUST UPPER

41921-47H10

Unavailable

14

NUT,CRANK CASE ADJUST BOLT

41922-47H00

$42.23
