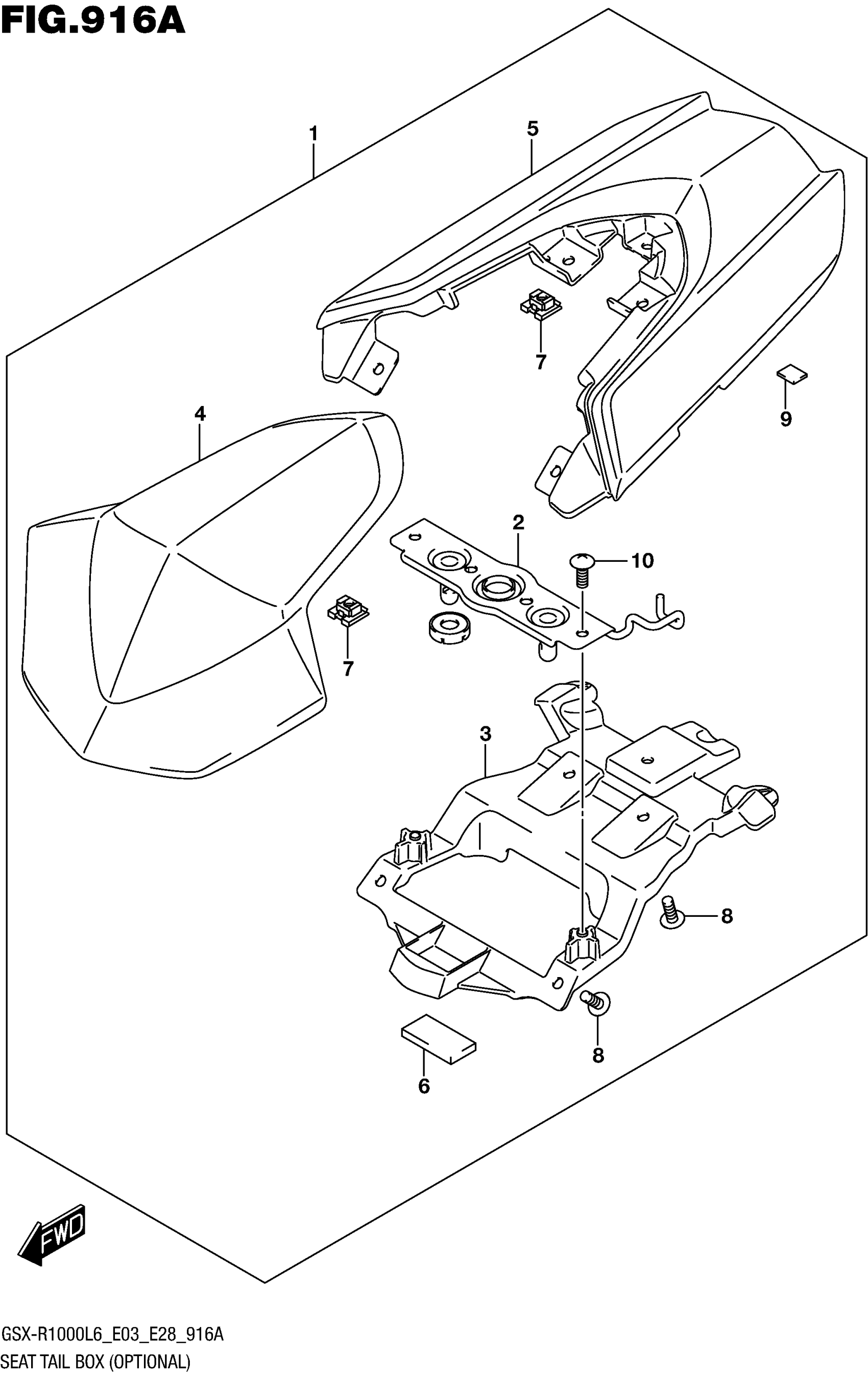

Suzuki GSX-R1000L6 (2016) SEAT TAIL BOX (OPTIONAL) Diagram

Description

Price

1-1

BOX, SEAT TAIL (BLUE) | FOR YSF

45550-47H00-YSF

$249.95

1-2

BOX, SEAT TAIL (BLUE) | FOR AJP

45550-47H00-YKY

Unavailable

1-3

BOX, SEAT TAIL (RED) | FOR JSP

45550-47H00-YVZ

$209.78

.STRIKER

45290-47H10

$57.92

.FRAME, SEAT TAIL BOX

45553-47H00

$19.32

4-1

.BOX, SEAT TAIL FR (BLUE) | FOR YSF

45551-47H00-YSF

$142.70

4-2

.BOX, SEAT TAIL FR (BLACK) | FOR YKY

45551-47H00-YKY

$113.97

4-3

.BOX, SEAT TAIL FR (GRAY) | FOR YVZ

45551-47H00-YVZ

Unavailable

5-1

.BOX, SEAT TAIL RR (BLUE) | FOR YSF

45552-47H00-YSF

$142.70

5-2

.BOX, SEAT TAIL RR (RED) | FOR YKY

45552-47H00-YKY

Unavailable

5-3

.BOX, SEAT TAIL RR (BLACK) | FOR YVZ

45552-47H00-YVZ

$128.30

.CUSHION

45149-47H00

$7.95

.NUT

09148-06018

$3.00

.SCREW

02142-0616A

$1.41

.CUSHION

45517-01H00

$6.10

.SCREW

03541-0616A

$2.07
