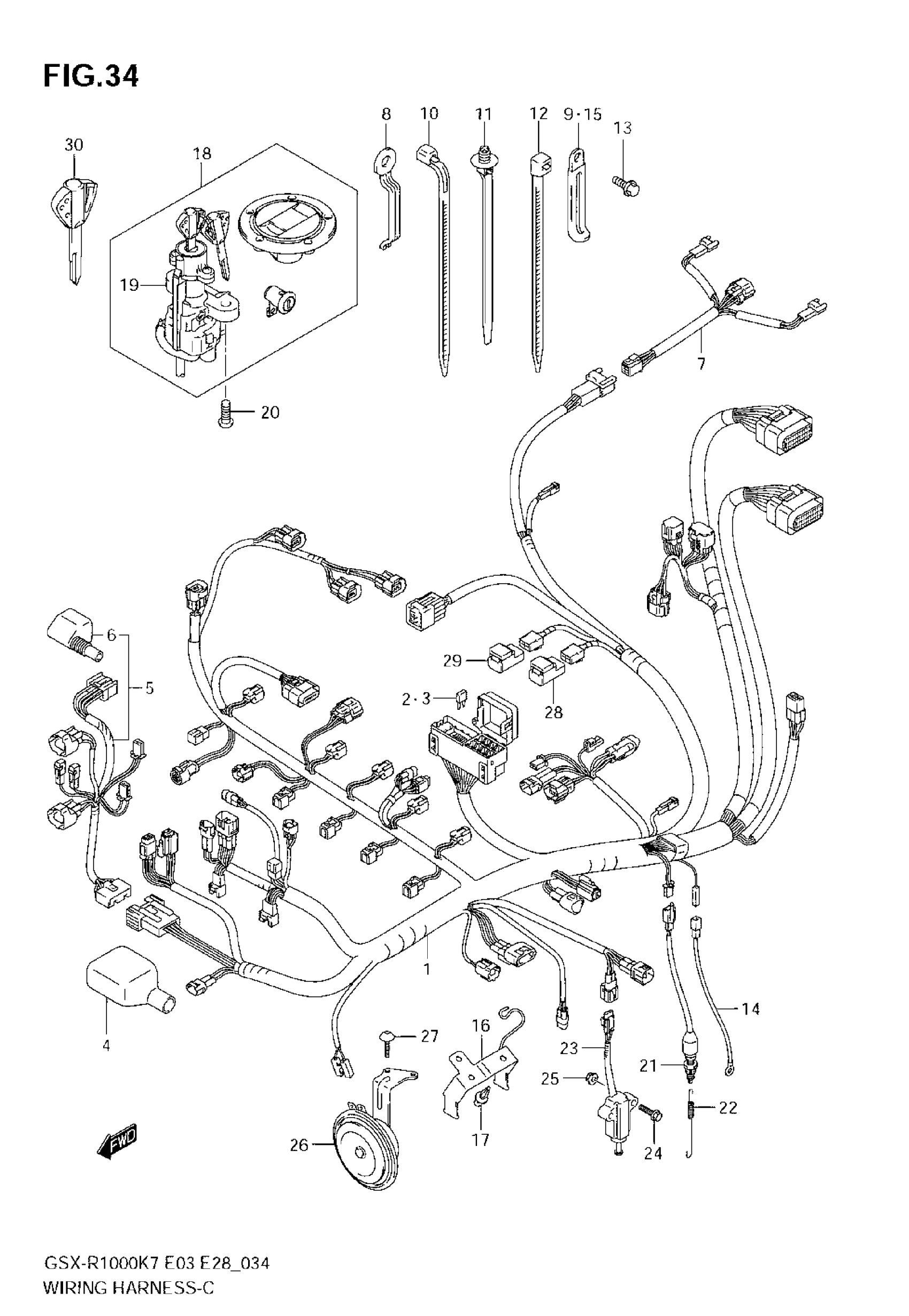

Suzuki GSX-R1000 (2008) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 4

36610-21H30

$1,410.93

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

COVER

36618-21H00

Unavailable

5

HARNESS, WIRING NO.2 | Includes Item(s) 6

36620-21H00

$268.38

6

COVER

36618-35F00

$11.37

7

WIRE, REAR COMB

36855-21H00

$65.62

8

GUIDE

09403-06322

$5.65

9

CLAMP (L:45)

09404-06429

$1.82

10

CLAMP (L:125)

09407-14403

$2.24

10

CLAMP (L:165)

09407-18402

$2.21

11

CLAMP (L:170)

09407-17403

$4.63

12

CLAMP (L:145)

09407-14407

$2.80

13

BOLT

01547-0612A

$2.01

14

WIRE, OIL PRESSURE SWITCH LEAD

36851-35F00

Unavailable

15

CLAMP, OIL PRESS LEAD (L:45)

09404-06429

$1.82

16

BRACKET, FUSE

36744-21H00

Unavailable

17

BOLT, BRACKET

01550-0612A

$1.97

18

LOCK SET This part replaces 37101-40820.

37101-40824

$247.44

18

LOCK SET | E33; Includes Item(s) 19 This part replaces 37101-40840.

37101-40843

$324.95

19

.LOCK ASSY,STEERING This part replaces 37100-41G10.

37100-41G12

$208.75

20

SCREW, STEERING LOCK (8X20)

09139-08016

$3.04

21

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

22

SPRING, BRAKE LAMP SWITCH

09443-06087

$4.45

23

SWITCH ASSY,SID This part replaces 37840-21H00.

37840-21H01

$93.85

24

BOLT (8X35)

09103-08357

$4.53

25

NUT, SIDE STAND

08316-1008B

$2.65

26

HORN ASSY

38500-21H00

$98.98

27

BOLT, HORN (6X20)

09139-06148

$4.53

28

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

29

RELAY ASSY, FAN MOTOR

38740-24X50

$41.38

30

KEY,BLANK (IMMOBI) | OPT This part replaces 37146-41G10.

37146-41G00

$39.40
