2008 Suzuki GSX-R1000 Headlamp Diagram

← All diagrams

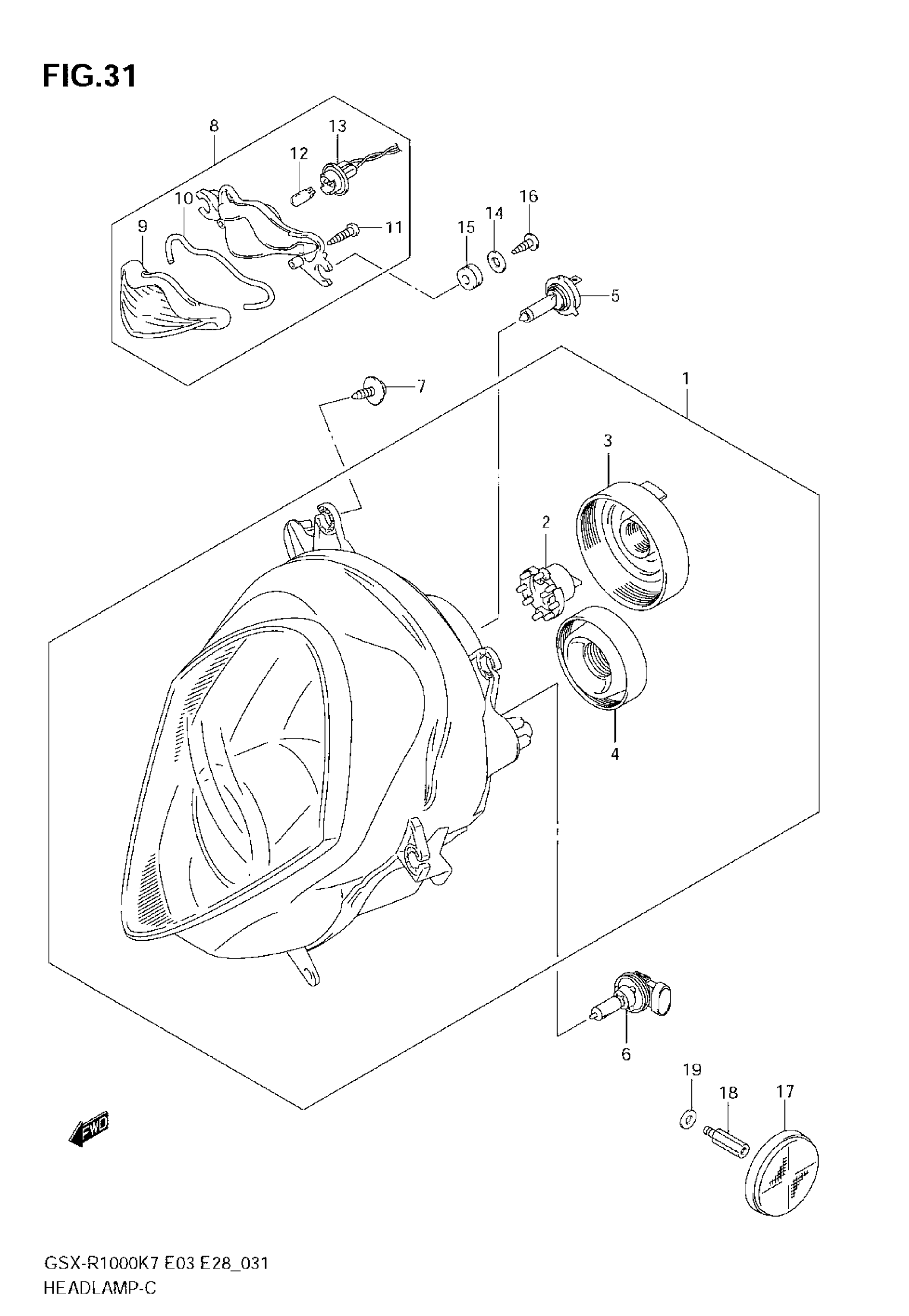

Find the part on the Headlamp diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki GSX-R1000 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 4

35100-21H00-999

1
Out of stock

2

ADAPTER ASSY

34175-33E50

1
Out of stock

3

SOCKET, COVER

35179-64G00

1
Out of stock

4

SOCKET, COVER

35179-01H00

1
Out of stock

5

BULB (12V55W H7)

09471-12188

1
Out of stock

6

BULB (12V65W)

09471-12222

1
Out of stock

7

SCREW, HEADLAMP

09136-05062

8
Out of stock

8

LAMP ASSY, FRONT POSITION | Includes Item(s) 9 - 13

36110-21H00

1
Out of stock

9

LENS

36112-21H00

1
Out of stock

10

GASKET

35913-02F00

1
Out of stock

11

SCREW

03211-04146

2

$2.43

In stock

12

.BULB (12V5W)

09471-12216

1
Out of stock

13

SOCKET, CORD

36118-21H00

1
Out of stock

14

WASHER (5.5X18X1)

09160-05045

2
Out of stock

15

2

$2.23

In stock

16

SCREW

03511-0510A

2
Out of stock

17

REFLEX REFLECTOR ASSY, FR

35950-14A00

2
Out of stock

18

BOLT

09119-06109

2
Out of stock

19

WASHER (8.5X14X1.6)

09160-08090

2
Out of stock
