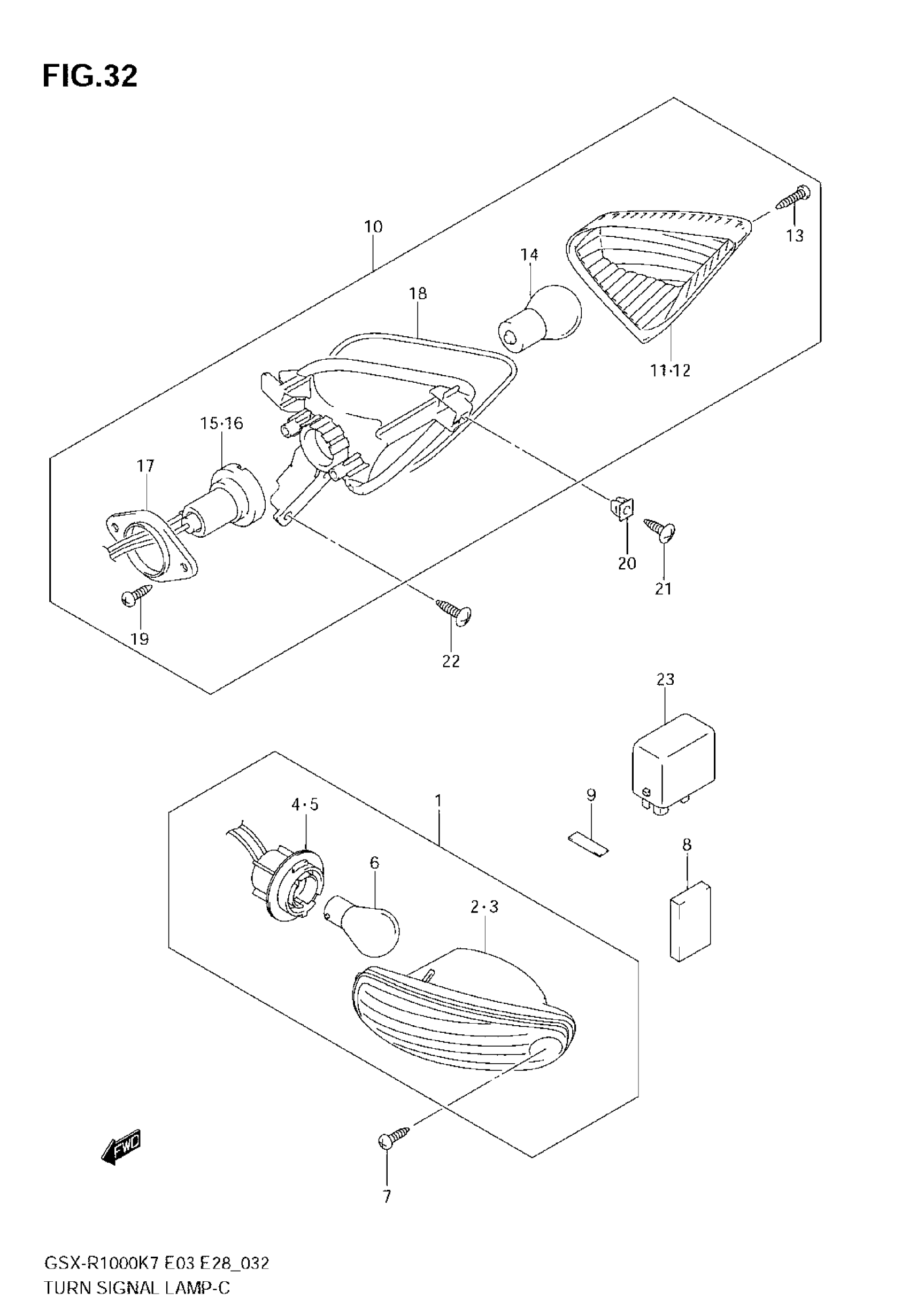

Suzuki GSX-R1000 (2008) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$54.14

1

LAMP ASSY,FR TURN SIGNAL,L | Includes Item(s) 2 - 6

35602-41G00

$54.14

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.LAMP UNIT,L

35630-41G00

$36.47

4

.SOCKET,R

35618-10G50

$34.12

5

.SOCKET,L

35638-10G50

$32.85

6

BULB (12V21W)

09471-12186

$12.00

7

SCREW, FR TURNSIGNAL (4X20)

09132-04032

$2.03

8

CUSHION, FR TURN (50X50X5) | CUT AS REQUIRED (40X20)

33652-20C00

$2.86

9

TAPE,FR TURNSIGNAL (5X20X0.4) | 5X20X0.4

94443-21H00

$4.47

10

LAMP ASSY, REAR TURNSIGNAL, R

35603-21H00

$99.40

10

LAMP ASSY, REAR TURNSIGNAL, L | Includes Item(s) 11 - 19

35604-21H00

$107.98

11

LENS, R

35652-21H00

$29.87

12

LENS, L

35672-21H00

$36.58

13

SCREW

03211-0416A

$1.48

14

BULB (12V21W)

09471-12186

$12.00

15

.SOCKET & CORD,R

35658-41G00

$36.30

16

.SOCKET & CORD,L

35678-41G00

$36.30

17

PLATE

35716-07A30

$11.18

18

GASKET | FOR GRAY

35653-21H00

$16.13

19

SCREW

03211-0412A

$0.73

20

NUT, REAR TURNSIGNAL

09148-04021

$1.48

21

SCREW, REAR TURNSIGNAL

03541-0412A

$1.41

22

SCREW, REAR TURNSIGNAL

03541-0512A

$1.41

23

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
