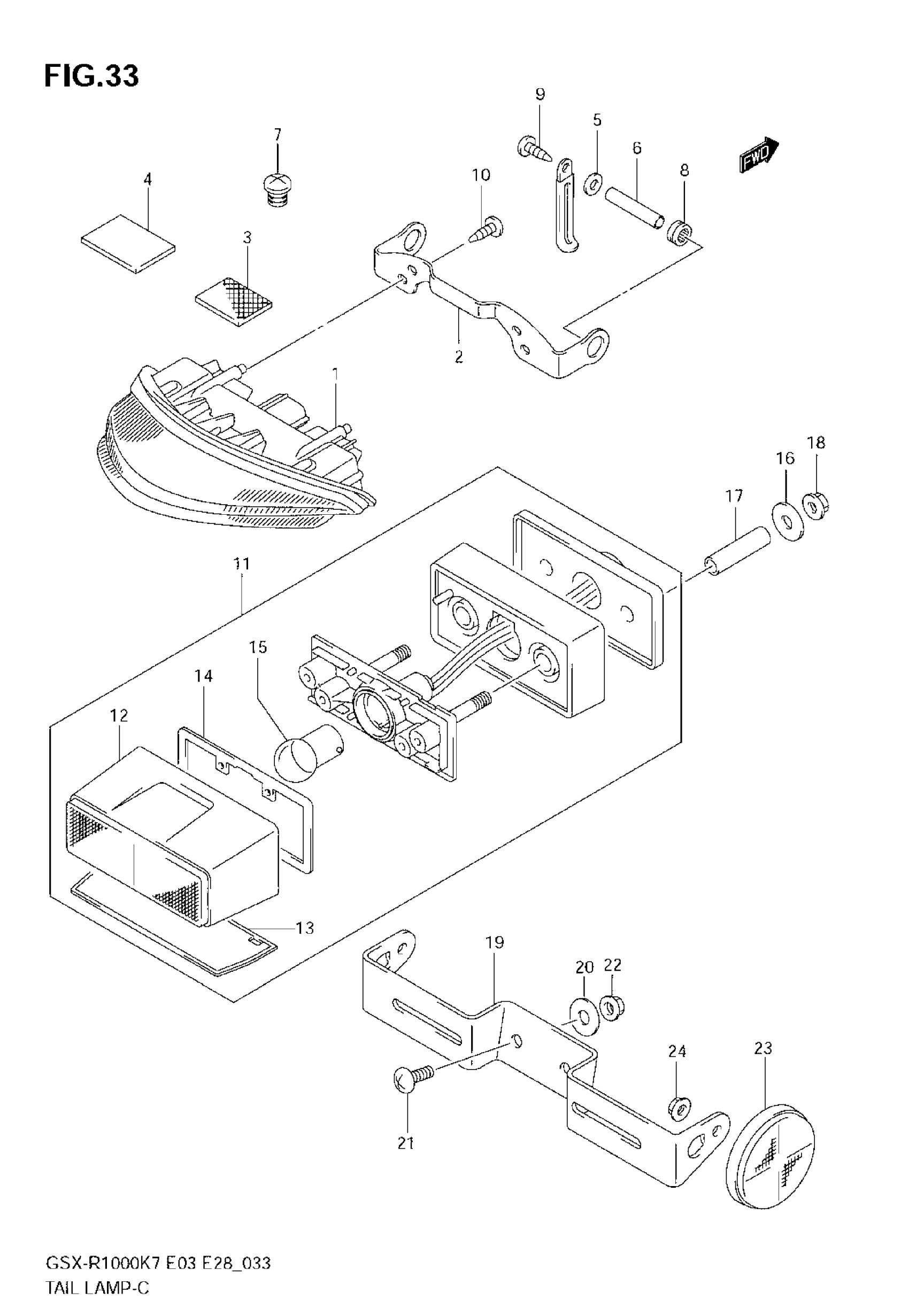

Suzuki GSX-R1000 (2008) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-21H30

Unavailable

2

BRACKET, REAR COMB LAMP

35726-21H10

Unavailable

3

FASTENER, RR COMB | 33X25X3.0

44572-13G00

$10.59

4

CUSHION, RR COMB | 30X40X4.0

47312-21H00

$5.43

5

WASHER (5.5X20X1.2)

09160-05501

$1.94

6

SPACER (5.5X9.5X8.5)

09180-05063

Unavailable

7

CAP | OD:14 This part replaces 09250-09001.

09250-09008

$1.62

8

CUSHION, RR COMB

09320-09009

$4.32

9

SCREW

02142-0520A

$1.46

10

SCREW, RR COMB

03541-0516A

$1.41

11

LAMP ASSY,LICENSE | Includes Item(s) 12 - 15 This part replaces 35910-41G30.

35910-41G32

$99.83

12

COVER, LICENSE LAMP

35917-41G00

$39.85

13

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

14

GASKET

35913-41G00

$16.07

15

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

16

WASHER, LICENSE LAMP | 6.5X20X1.2

09160-06077

$1.97

17

SPACER, LICENSE LAMP | 6.5X9X33.3

09180-06278

$4.92

18

NUT, LICENSE LAMP

08316-1006A

$2.25

19

BRACKET, LICENSE PLATE

35927-41G30

$17.12

20

WASHER (6.5X20X1.2)

09160-06077

$1.97

21

SCREW

02142-0616A

$1.41

22

NUT

08316-1006A

$2.25

23

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

24

NUT

08316-1005A

$2.25
